SEAT

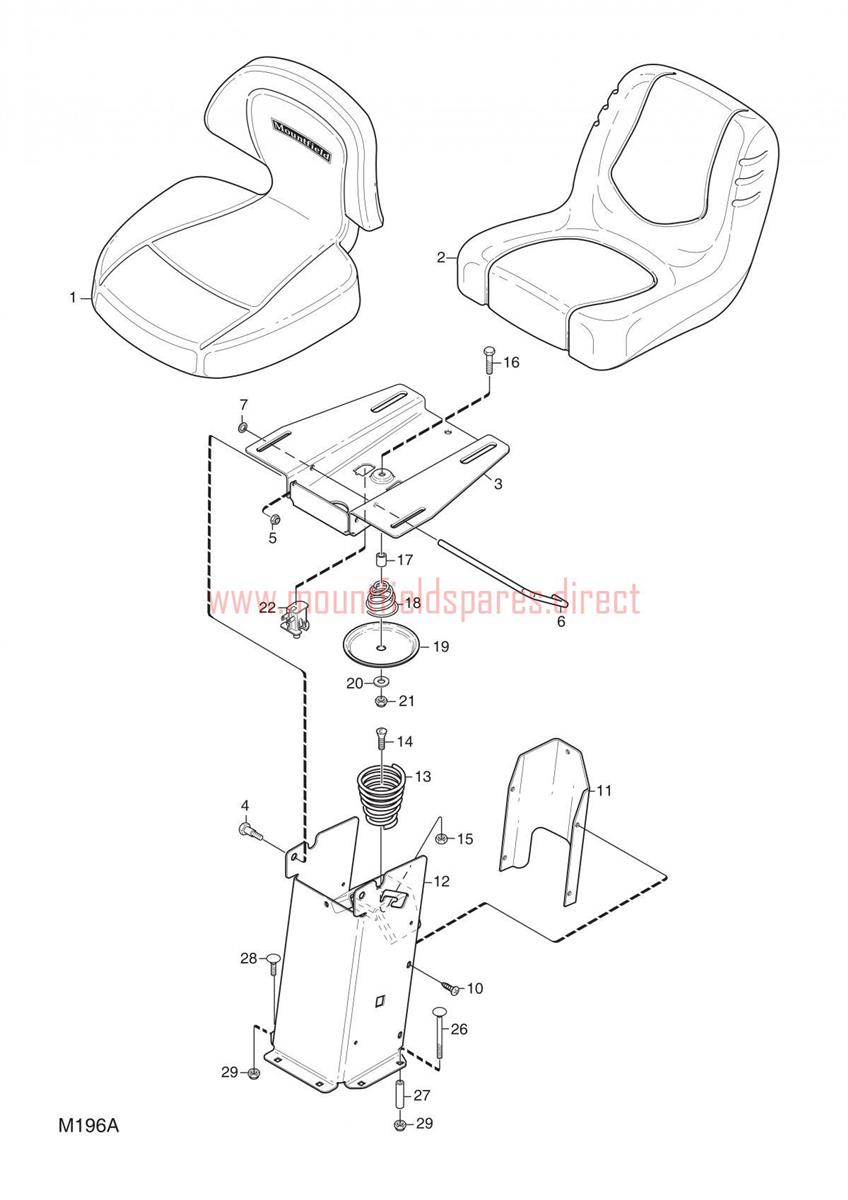

SEAT assembly details for Mountfield 4135H-4155H 2008 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-5506-02	SEAT "MOUNTFIELD"	£310.55	Add to
002	1134-5534-01	SEAT	£449.97	Add to
003	1134-5301-01	UPPER SEAT BRACKET	£109.29	Add to
004	1134-0240-00	SCREW	£9.14	Add to
005	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
006	1134-5454-01	CATCH ROD	£11.18	Add to
007	112604899/0	STARLOCK WASHER RPCO 308 D=8	£2.06	Add to
010	9893-0616-16	SCREW M6 x 16	£2.47	Add to
011	1134-5300-02	REAR PLATE (RED) 2-18	£57.55	Add to
012	1134-5296-06	SEAT BRACKET [RED]	£172.82	Add to
013	137430116/0	SEAT SPRING	£26.18	Add to
014	9924-1235-19	SCREW MF6S M12 x 35	£4.23	Add to
015	9747-1231-02	NUT	£2.06	Add to
016	9997-0840-16	SCREW M6S M8 x 40	£2.06	Add to
017	1134-1565-06	SPACER	£11.32	Add to
018	1134-5302-01	SPRING	£8.87	Add to
019	1134-5299-01	PUSH PLATE	£17.86	Add to
020	112521350/0	WASHER M8 8.4 x 16 x 1.6	£2.06	Add to
022	1134-3156-02	SEAT SWITCH [GREY]	£47.97	Add to
026	9897-0880-12	SCREW MVBF 8 x 80	£2.32	Add to
027	1134-1565-08	SPACER	£9.94	Add to
028	9897-0820-16	SCREW M8 x 20	£2.32	Add to
