BODY WORK SEAT

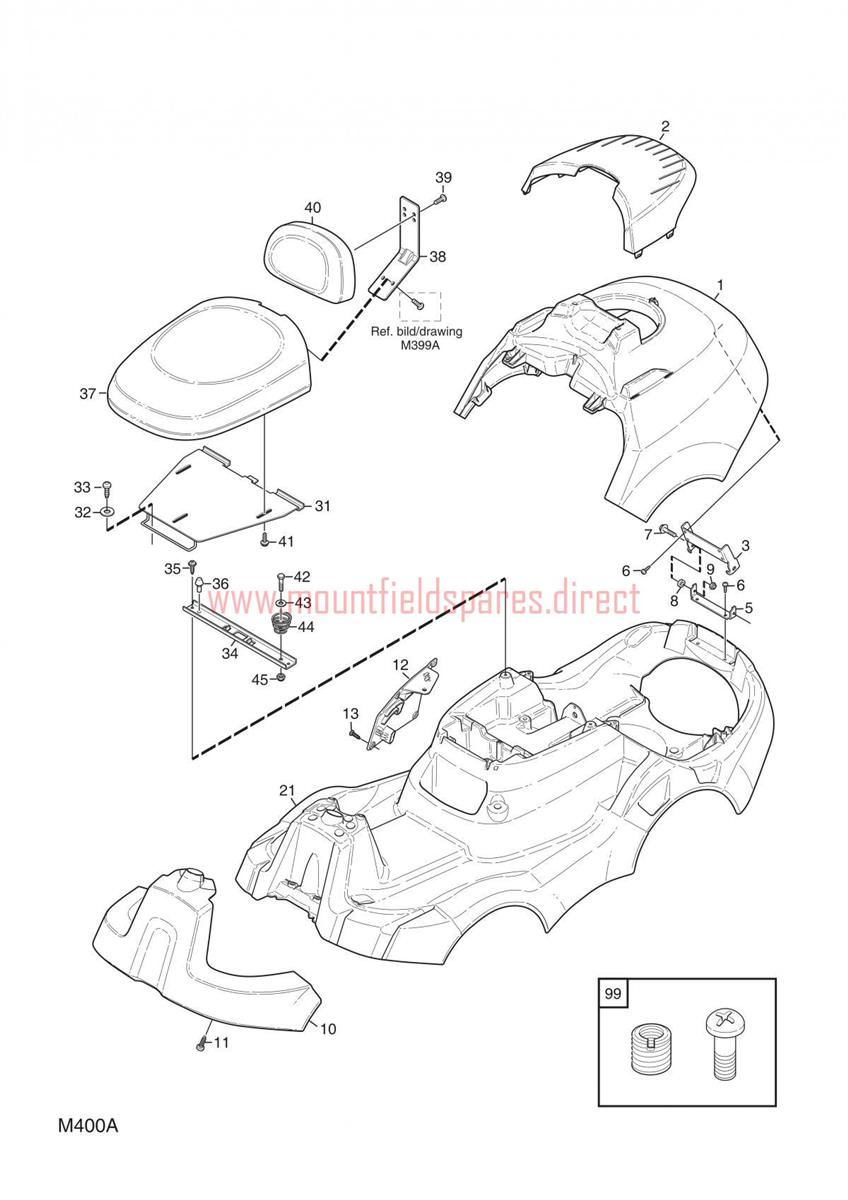

BODY WORK SEAT assembly details for Mountfield 1125M 2009 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-6711-02	ENGINE HOOD-RED	£143.37	Add to
001	1134-6711-03	ENGINE HOOD-BLACK	£143.37	Add to
002	1134-6712-01	ENGINE COVER	£52.06	Add to
003	1134-6583-01	BRACKET-LH	£5.66	Add to
005	1134-6584-01	BRACKET	£5.66	Add to
006	9838-8822-19	SCREW K60 x 22	£2.06	Add to
007	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
008	1134-5114-01	SPACER	£9.54	Add to
009	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
010	1134-6708-02	FRONT COVER-RED	£46.75	Add to
010	1134-6708-03	FRONT COVER-BLACK	£38.60	Add to
012	1134-6581-04	PTO-COVER (BLACK)	£50.70	Add to
021	1137-0022-01	Chassis (OBSOLETE)	N/A
031	1134-7735-01	SEAT BRACKET ASSY 2009	£62.44	Add to
032	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
034	1134-6741-01	SWITCH BRACKET	£8.62	Add to
036	1134-3134-01	RUBBER SPRING	£12.27	Add to
037	1134-7741-01	SEAT CUSHION ASSY	£153.95	Add to
038	1134-7739-01	BACK REST BRACKET ASSY	£33.00	Add to
039	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
040	1134-7022-01	BACKREST CUSHION	£66.92	Add to
043	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
044	1134-5302-01	SPRING	£8.87	Add to
045	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
099	1134-7498-01	REPAIR KIT-THREAD INSERT	£29.55	Add to
