CONTROLS

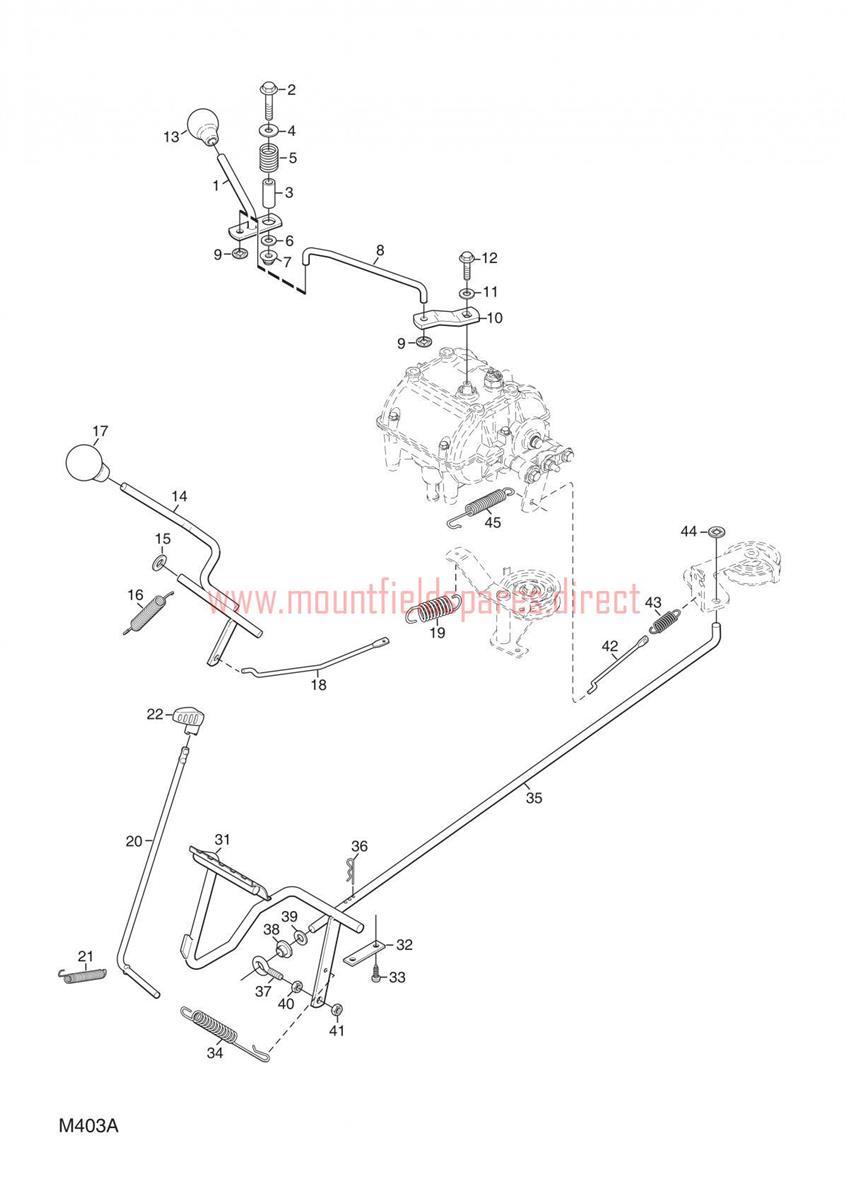

CONTROLS assembly details for Mountfield 1125M 2009 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-6483-01	GEAR SHIFT LEVER	£10.98	Add to
002	112793900/0	HEX-HEAD SCREW M8 x 60	£2.06	Add to
003	1134-6554-01	SPACER	£5.58	Add to
004	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
005	1134-4079-01	SPRING	£8.73	Add to
006	9695-0011-00	WASHER 16 x 22 x 1	£2.47	Add to
007	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
008	1134-6486-01	GEAR SHIFT ROD	£7.25	Add to
009	112604899/0	STARLOCK WASHER RPCO 308 D=8	£2.06	Add to
010	1134-6482-01	GEAR SHIFT ARM	£7.12	Add to
011	112523040/0	WASHER M6 6.6 x 18 x 1.6	£2.06	Add to
012	112735520/0	"HEX-HEAD SCREW 1/4"" x 5/8"""	£2.06	Add to
013	1134-2551-01	GEAR KNOB	£11.59	Add to
014	1134-6558-01	DECK ENGAGEMENT LEVER	£28.72	Add to
015	9699-0109-02	WASHER 10.5 x 40 x 2	£2.32	Add to
016	1134-7713-01	SPRING	£23.54	Add to
018	1134-7754-01	ROD (OBSOLETE) (OBSOLETE)	N/A
019	1135-3307-01	BRAKE SPRING	£23.72	Add to
020	1134-6526-01	PEDAL CATCH	£15.69	Add to
021	1131-1497-01	BRAKE SPRING	£10.50	Add to
022	1134-6552-01	CATCH BUTTON	£1.79	Add to
031	1134-6528-01	CLUTCH PEDAL	£43.74	Add to
032	1134-6527-01	CLAMP	£5.66	Add to
033	9838-8822-19	SCREW K60 x 22	£2.06	Add to
034	4231-0013-00	SPRING	£8.87	Add to
035	1134-7729-01	CLUTCH ROD	£18.82	Add to
036	124487998/0	R CLIP D=2	£2.06	Add to
037	1134-2138-01	EYE BOLT	£8.87	Add to
038	1134-4779-01	PLASTIC BUSH	£2.18	Add to
039	112521360/0	WASHER M10 10.5 x 20 x 2	£2.06	Add to
041	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
042	1134-6666-01	STRUT	£7.12	Add to
043	1134-1242-02	SPRING	£10.50	Add to
044	MX585	PUSH ON FIXING	£3.64	Add to
