POWER TAKE-OFF

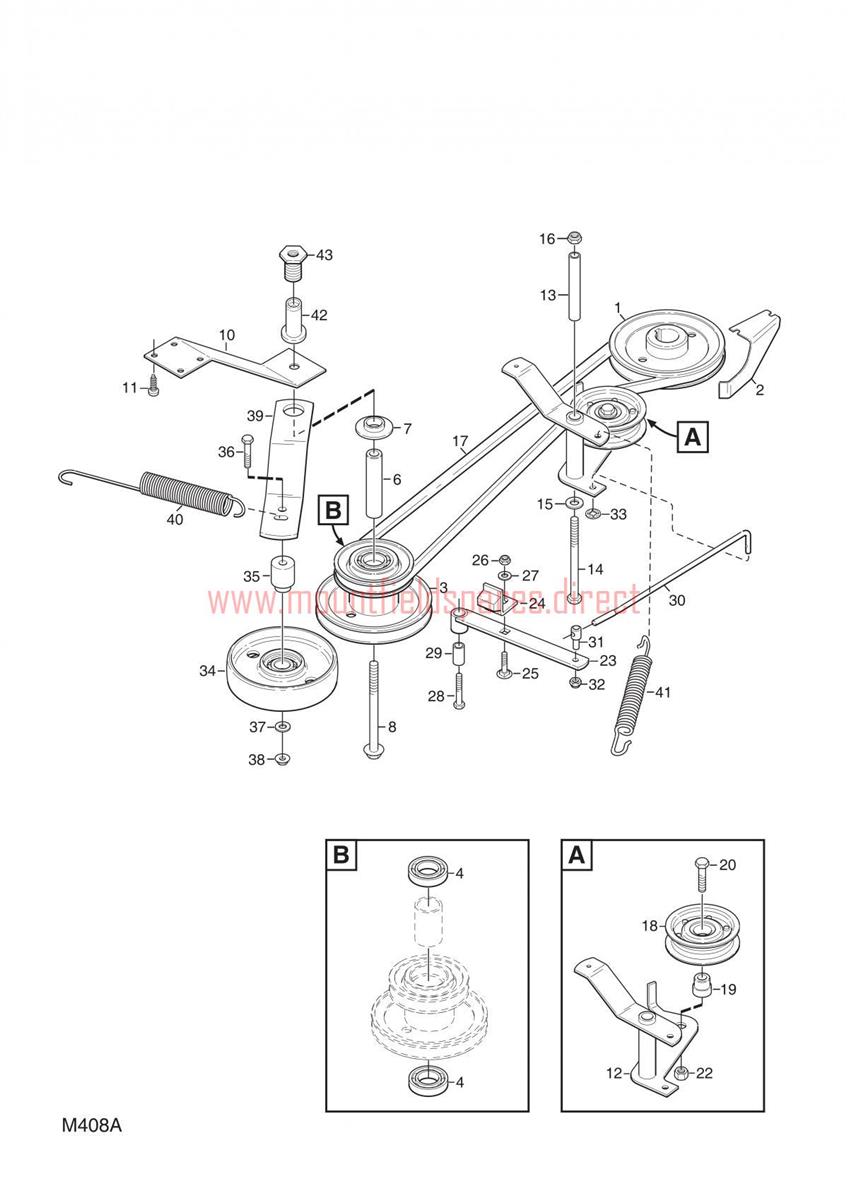

POWER TAKE-OFF assembly details for Mountfield 1125M 2009 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-6496-01	BELT PULLEY	£67.05	Add to
002	1134-7803-01	BELT GUIDE	£8.91	Add to
003	1134-6617-01	INTERMEDIATE BELT PULLEY	£109.29	Add to
004	120001215/0	BEARING 6203 2RS C3	£32.57	Add to
006	1134-6519-01	SHAFT	£7.18	Add to
007	1134-5548-01	SPACER	£14.32	Add to
008	1134-7745-01	SCREW W LOCKING(M8 X 130MM)	£4.01	Add to
010	1134-6567-01	SUPPORT PLATE	£7.76	Add to
011	9838-8822-19	SCREW K60 x 22	£2.06	Add to
012	1134-6501-01	CLUTCH LEVER	£26.18	Add to
013	1134-1565-17	SPACER	£6.88	Add to
014	9997-0811-02	SCREW M6S M8 x 110	£3.69	Add to
015	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
016	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
017	1134-9135-01	PTO DRIVE BELT	£33.54	Add to
018	125601588/0	PULLEY	£31.75	Add to
019	1134-6548-01	SPACER	£5.66	Add to
020	9997-1040-16	SCREW M6S 10 x 40	£7.23	Add to
022	112295200/0	HEXAGON NUT M10	£1.79	Add to
023	1134-6497-01	BRAKE LEVER	£19.73	Add to
024	1134-4164-04	BRAKE PAD	£42.53	Add to
025	9897-0825-16	SCREW M8 x 25	£3.15	Add to
028	112691700/0	SCREW M8 x 55	£1.91	Add to
029	1134-1565-06	SPACER	£11.32	Add to
030	1134-6500-01	BRAKE ROD	£6.88	Add to
031	1134-4170-01	PIVOT BOLT	£14.32	Add to
032	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
033	9675-0008-02	STARLOCK WASHER D=5	£4.01	Add to
034	1137-0128-01	TENSION PULLEY	£48.34	Add to
035	1134-1888-04	SPACER	£9.41	Add to
036	9997-0840-16	SCREW M6S M8 x 40	£2.06	Add to
038	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
039	1134-6492-01	TENSION LEVER	£9.82	Add to
040	1134-7886-01	SPRING	£19.22	Add to
041	1134-5713-03	SPRING	£13.40	Add to
042	1134-7865-01	FLANGE SLEEVE	£7.95	Add to
043	1137-0021-01	THREAD INSERT	£6.94	Add to
