2125M FOOT CONTROLS

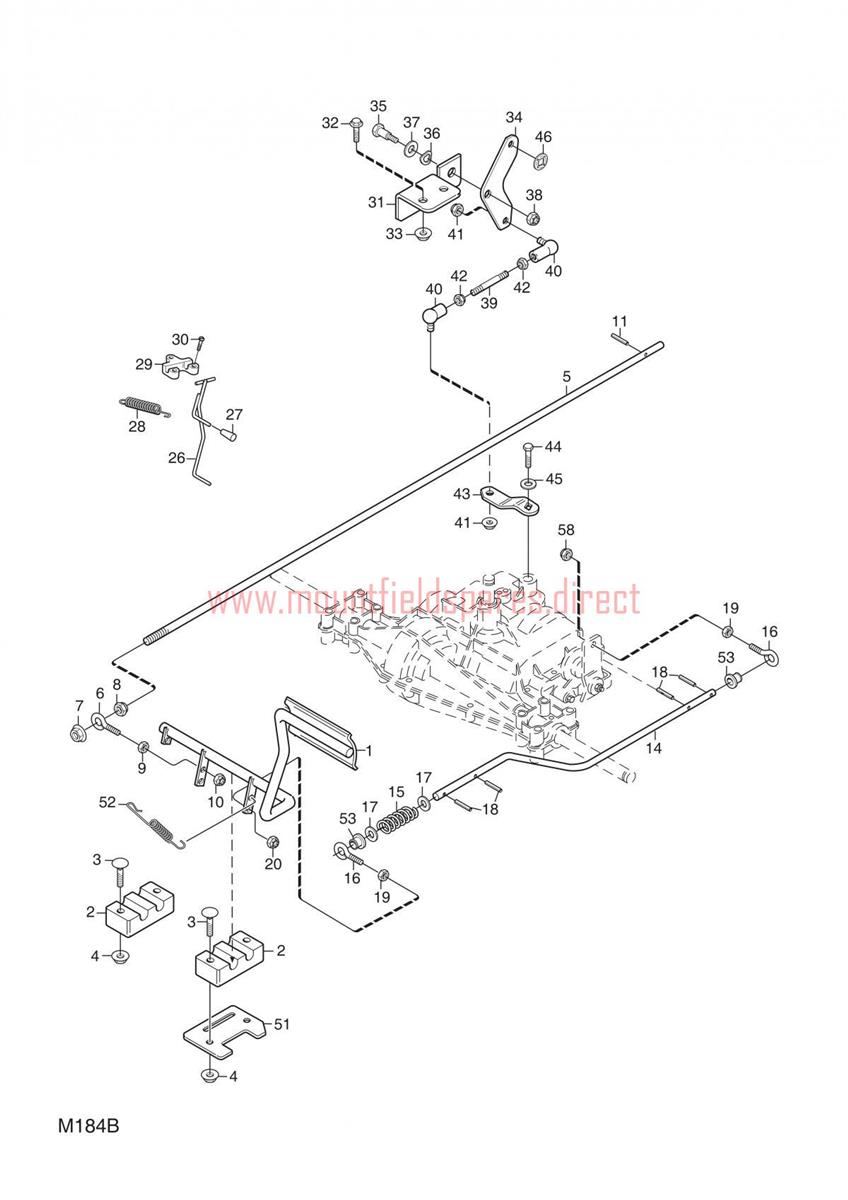

2125M FOOT CONTROLS assembly details for Mountfield 2125M-2135H 2009 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011134-4802-01PEDAL£56.15 Add to
0021134-4624-01BEARING£9.41 Add to
0039897-0640-12CARRIAGE BOLT M6 x 40£2.32 Add to
004112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
0051134-4795-01CLUTCH ROD£34.35 Add to
0061134-2138-01EYE BOLT£8.87 Add to
0079739-1031-22NUT M10£2.32 Add to
0089731-1031-22LOCK NUT M6MF M10£2.47 Add to
009112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
010112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0119595-0208-00LOCATING PIN£2.74 Add to
0141134-4777-01BRAKE ROD£35.71 Add to
0151134-4617-01SPRING£4.52 Add to
017112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
0261134-5353-01BRAKE ROD£29.61 Add to
0271134-2786-01PLASTIC KNOB£6.42 Add to
0281131-1497-01BRAKE SPRING£10.50 Add to
0291134-4002-01BRAKE ROD ATTACHMENT£12.27 Add to
0309838-9516-12SCREW K50 x 16£2.47 Add to
0311134-4714-01ANGLE BRACKET£24.95 Add to
0329959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£2.06 Add to
0341134-4715-01ANGLE BRACKET£22.76 Add to
0351134-0240-00SCREW£9.14 Add to
036122675110/0WASHER D=13.5 x 20.5 x 0.5£2.14 Add to
037122671652/0WASHER 12.3 x 20 x 2£2.74 Add to
0391134-4717-02THREADED ROD£13.64 Add to
0409570-0004-00ELBOW LINK£26.18 Add to
041112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
0431134-6351-01SHIFT LEVER (DANA 6800-7) (OBSOLETE)N/A
044112735520/0"HEX-HEAD SCREW 1/4"" x 5/8"""£2.06 Add to
045112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
046112604896/0STARLOCK WASHER D=6£2.06 Add to
0511134-4793-01BRACKET£17.18 Add to
0524231-0013-00SPRING£8.87 Add to
0531134-4779-01PLASTIC BUSH£2.18 Add to
