4155H 4155H POWER TAKE-OFF 4WD

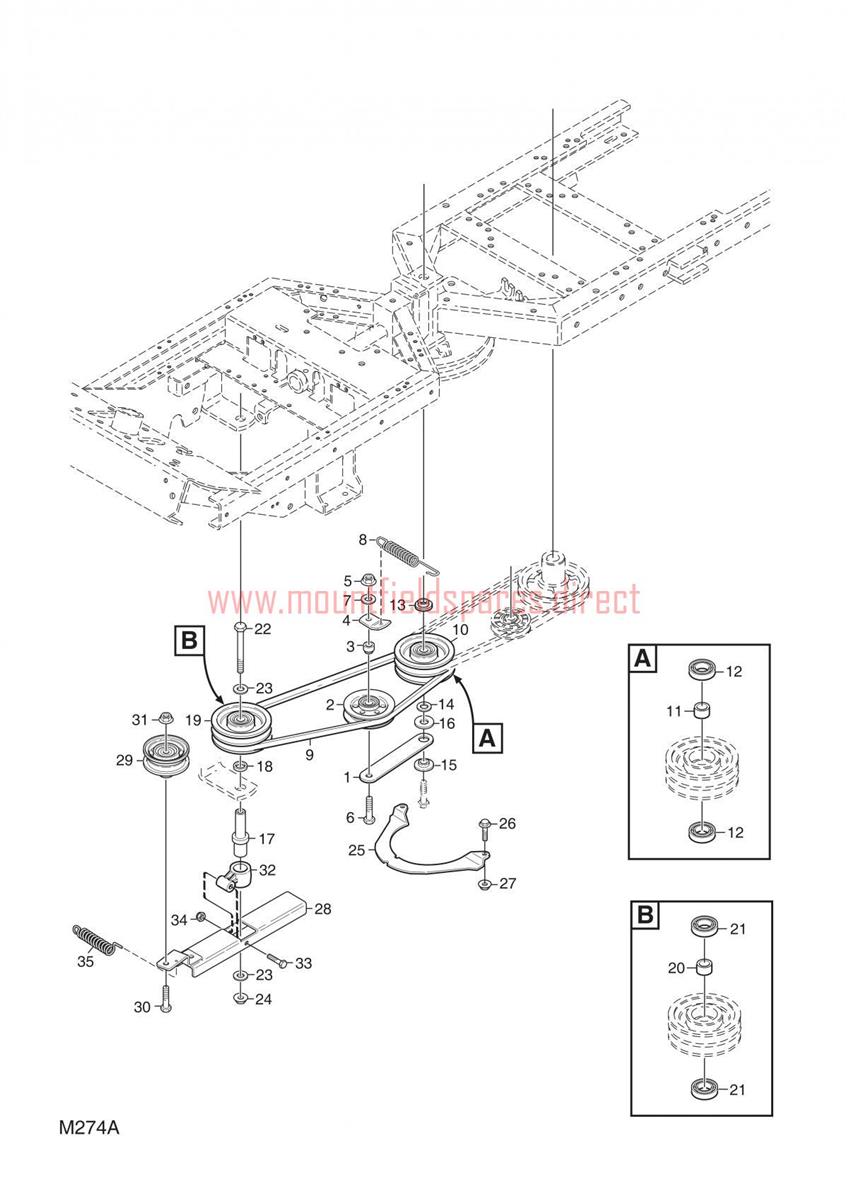

4155H 4155H POWER TAKE-OFF 4WD assembly details for Mountfield 4140H-4155H 2009 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-1730-02	TENSIONING WHEEL ARM	£42.53	Add to
002	1134-3663-01	TENSION PULLEY	£56.36	Add to
003	1134-1888-05	SPACER	£9.14	Add to
004	1134-1893-01	SPRING ATTACHMENT	£11.27	Add to
005	9739-1031-22	NUT M10	£2.32	Add to
006	9997-1060-12	SCREW M6S M10 x 60	£2.54	Add to
007	112521360/0	WASHER M10 10.5 x 20 x 2	£2.06	Add to
008	1134-5713-01	SPRING	£13.08	Add to
009	1134-9098-01	PTO DRIVE BELT [4WD]	£27.27	Add to
010	387605002/0	DOUBLE CENTRE PULLEY ASSEMBLY	£84.77	Add to
011	1134-0051-09	SPACER	£14.05	Add to
012	120001215/0	BEARING 6203 2RS C3	£32.57	Add to
013	1134-5548-01	SPACER	£14.32	Add to
015	1134-0222-00	TENSION WASHER	£14.45	Add to
016	9699-0109-02	WASHER 10.5 x 40 x 2	£2.32	Add to
017	1134-5663-01	SHAFT	£43.93	Add to
018	1134-0052-00	SPACER	£8.87	Add to
022	9997-1011-06	SCREW M6S M10 x 110	£11.32	Add to
023	9699-0030-02	WASHER (10 X 26 X 2)	£2.14	Add to
025	1134-3654-01	GUARD	£35.71	Add to
026	9959-0612-16	SCREW M6SF M6 x 12 TL	£1.79	Add to
027	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
028	1134-5660-01	TENSION ARM	£42.83	Add to
029	1134-5823-01	TENSION PULLEY	£49.92	Add to
030	9997-1050-16	SCREW M6S M10 x 50	£2.87	Add to
032	1134-6314-01	TENSION ARM ATTACHMENT	£9.00	Add to
033	112689515/0	HEX-HEAD SCREW M6 x 45	£2.06	Add to
034	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
035	1134-5824-01	SPRING	£5.87	Add to
