ASSEMBLY PARTS

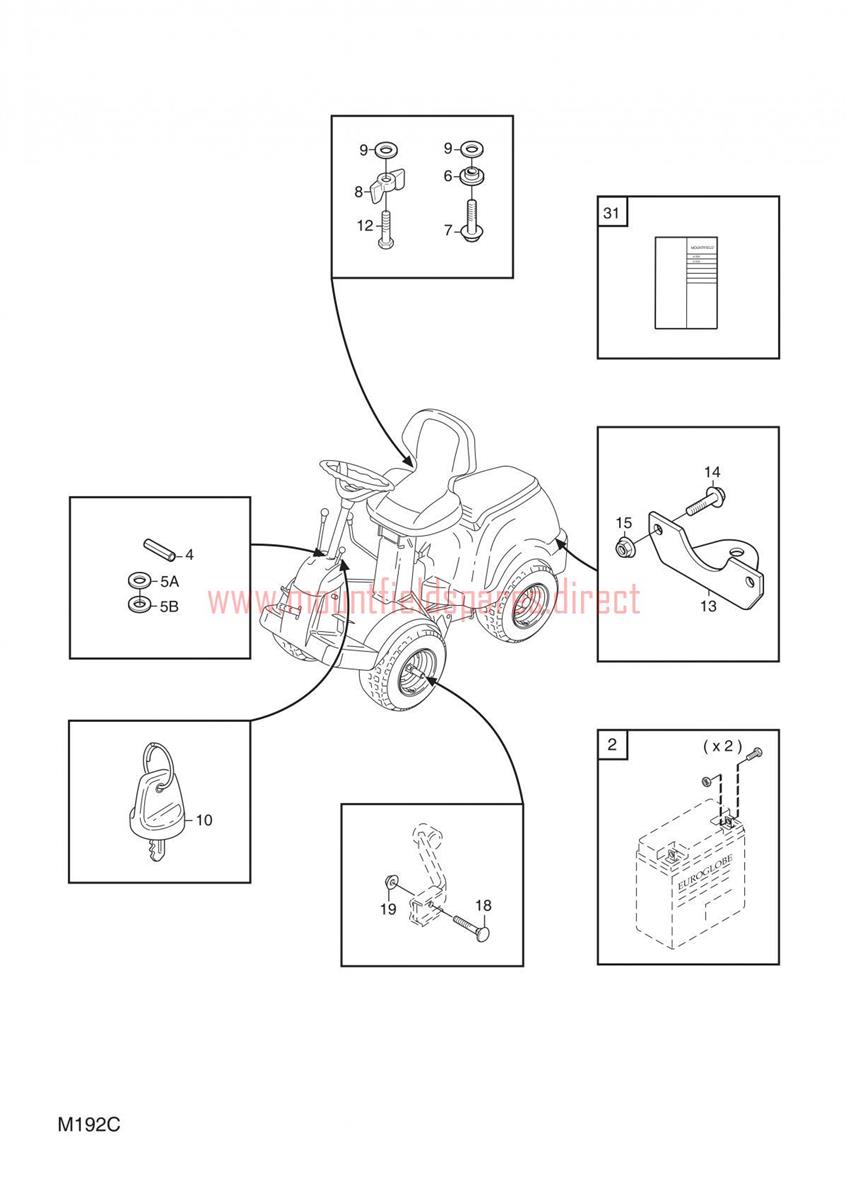

ASSEMBLY PARTS assembly details for Mountfield 4140H-4155H 2009 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0021134-6113-01BATTERY SCREW PACK£12.82 Add to
0049595-0262-00LOCATING PIN£2.06 Add to
0061134-4185-01FLANGE WASHER£6.71 Add to
0079959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£2.06 Add to
0081134-4481-01WING NUT (M8)£2.06 Add to
009112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
0101134-4734-01IGNITION KEY£17.72 Add to
012112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
0131134-5512-01TOWING PLATE£20.72 Add to
015112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0189898-1035-16SCREW 10 x 35£3.15 Add to
0199739-1031-22NUT M10£2.32 Add to
0318211-0060-91Owner’s manual (OBSOLETE)N/A
0318211-0078-90Owner’s manual (OBSOLETE)N/A
05A9699-0103-02WASHER£2.47 Add to
05B9699-0114-02WASHER 16 x 38 x 1£2.32 Add to
