ELCTRICAL EQUIPMENT

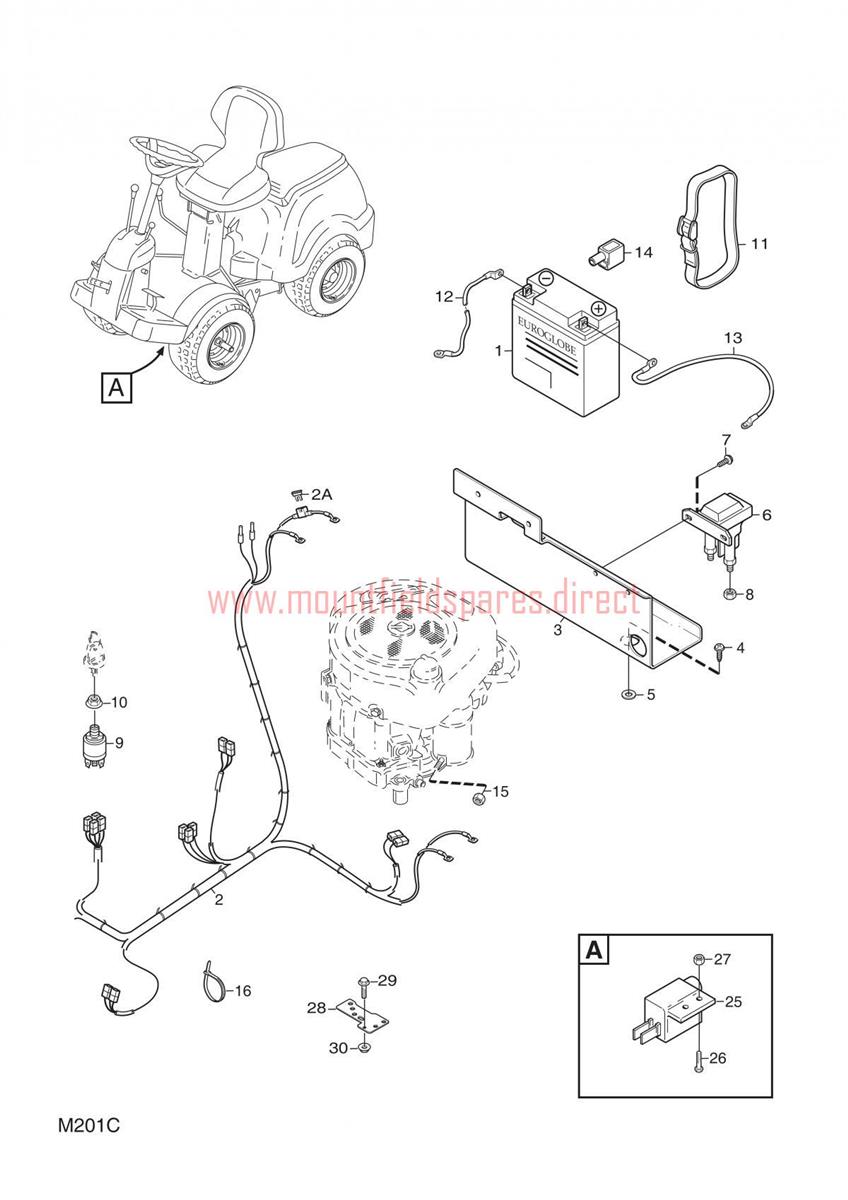

ELCTRICAL EQUIPMENT assembly details for Mountfield 4140H-4155H 2009 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118120007/0BATTERY 12V 18AH [No Returns on This item]£103.58 Add to
0021134-5769-01WIRING HARNESS (PARK COMPACT HST)£177.43 Add to
0031134-5343-01BATTERY BRACKET£68.42 Add to
0049852-8013-16SCREW£2.47 Add to
005112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
006118736112/0SOLENOID£39.80 Add to
0089743-5121-32LOCK NUT 5/16"£1.79 Add to
0091134-4093-01IGNITION SWITCH£67.05 Add to
0101134-4749-01NUT£5.05 Add to
0111134-5245-01BATTERY STRAP£22.91 Add to
0121134-2167-01CABLE£27.27 Add to
0131134-0234-02BATTERY CABLE (+)£24.95 Add to
0141134-2310-01GUARD CAP (+)£9.28 Add to
015112361005/0HEXAGON NUT 1/4" UNC£2.71 Add to
0169579-0003-00CABLE HOLDER£2.06 Add to
0251134-3399-02SWITCH£45.26 Add to
026112735654/0SELF-TAPPING SCREW M5 x 16£2.74 Add to
0269997-0520-16SCREW M6S M5 x 20£2.32 Add to
027112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
0281134-6454-01GROUND PLATE£15.41 Add to
0299959-0612-16SCREW M6SF M6 x 12 TL£1.79 Add to
02A1134-3496-06FUSE 20A£2.06 Add to
030112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
