MOWER DECK LIFT

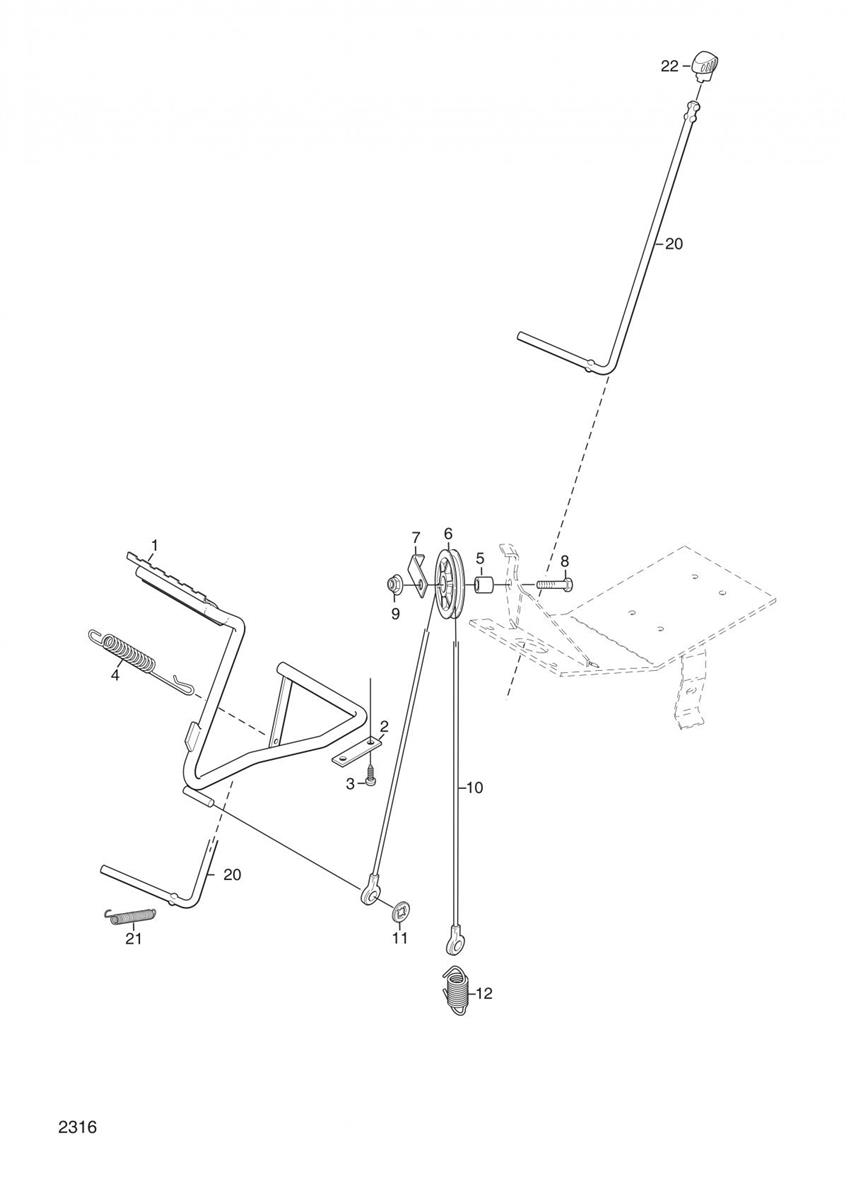

MOWER DECK LIFT assembly details for Mountfield 1125M 2010 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-7727-01	LIFT PEDAL	£21.61	Add to
002	1134-6527-01	CLAMP	£5.66	Add to
003	9838-8822-19	SCREW K60 x 22	£2.06	Add to
004	4231-0013-00	SPRING	£8.87	Add to
005	1134-0041-01	BUSH	£9.41	Add to
006	1134-0072-02	STEERING PULLEY	£7.78	Add to
007	1134-3022-01	BRACKET	£62.97	Add to
008	9997-1040-16	SCREW M6S 10 x 40	£7.23	Add to
009	9739-1031-22	NUT M10	£2.32	Add to
010	1134-6565-01	LIFT WIRE	£31.63	Add to
011	112604899/0	STARLOCK WASHER RPCO 308 D=8	£2.06	Add to
012	1134-6536-01	SPRING	£10.36	Add to
020	1134-6526-01	PEDAL CATCH	£15.69	Add to
021	1131-1497-01	BRAKE SPRING	£10.50	Add to
022	1134-6552-01	CATCH BUTTON	£1.79	Add to
