SEAT

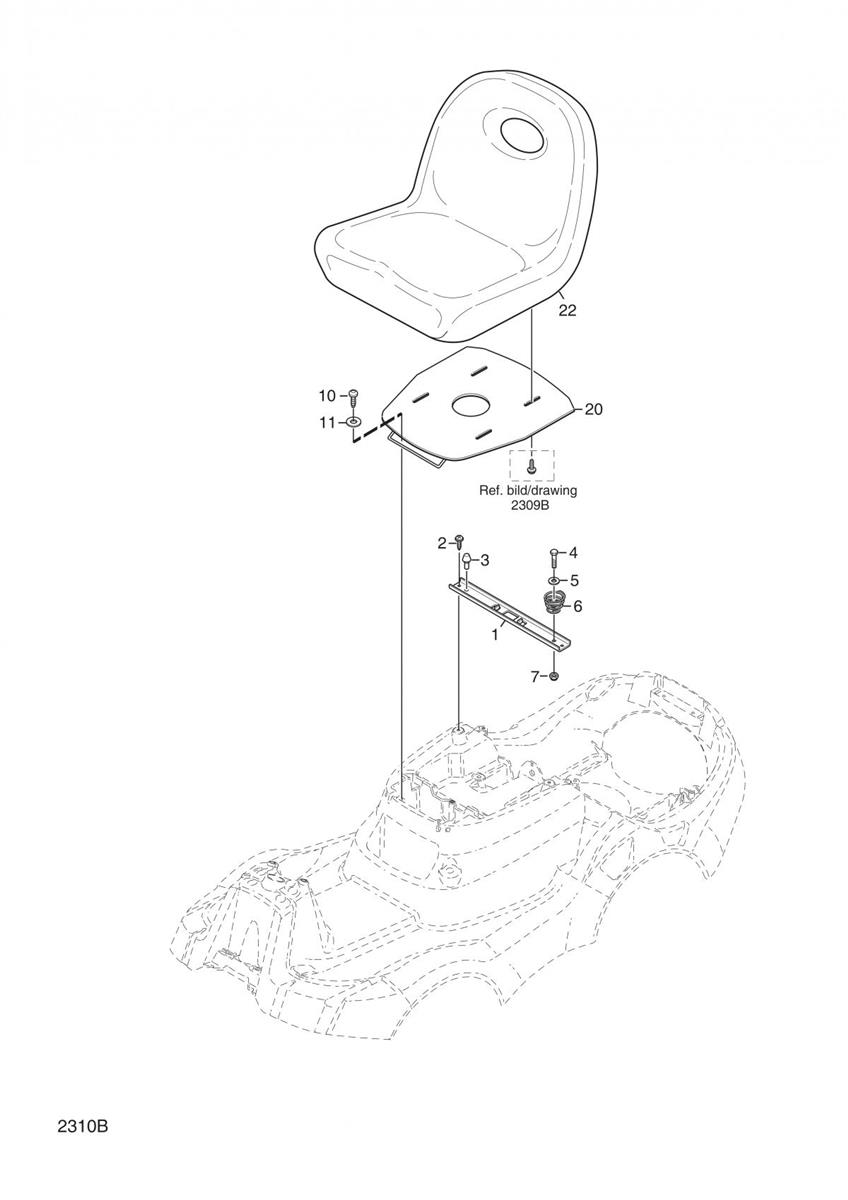

SEAT assembly details for Mountfield 1125M 2010 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011134-7837-01Switch bracket (OBSOLETE)N/A
0029838-8822-19SCREW K60 x 22£2.06 Add to
0031134-3134-01RUBBER SPRING£12.27 Add to
0049959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£2.06 Add to
005112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
0061134-5302-01SPRING£8.87 Add to
007112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0201134-7834-01SEAT PLATE ASSY£120.11 Add to
0221134-7873-01Seat (OBSOLETE)N/A
