STEERING

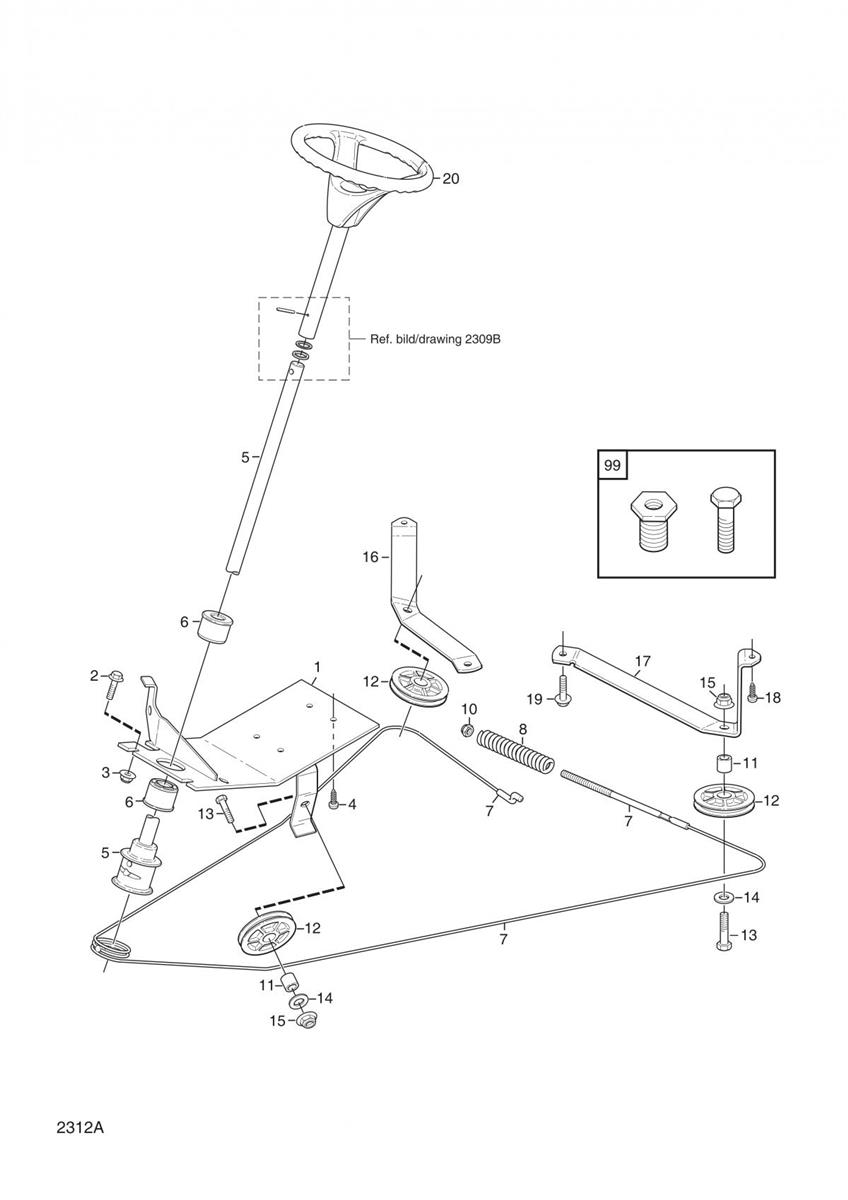

STEERING assembly details for Mountfield 1125M 2010 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-6562-01	STEERING PLATE	£63.59	Add to
002	9959-0825-16	SCREW FLANGED TE M6SF M8 x 25	£2.06	Add to
003	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
004	9838-8822-19	SCREW K60 x 22	£2.06	Add to
005	1134-6551-01	STEERING COLUMN	£47.49	Add to
006	1134-1901-01	PLASTIC BUSH	£12.27	Add to
007	1134-9138-01	STEERING CABLE (PRIMO)	£42.53	Add to
008	1134-3817-01	COMPRESSION SPRING	£12.96	Add to
010	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
011	1134-0041-01	BUSH	£9.41	Add to
012	1134-0072-02	STEERING PULLEY	£7.78	Add to
013	9997-1040-16	SCREW M6S 10 x 40	£7.23	Add to
014	112521360/0	WASHER M10 10.5 x 20 x 2	£2.06	Add to
015	9739-1031-22	NUT M10	£2.32	Add to
016	1134-6490-01	BRACKET-RH (OBSOLETE)	N/A
017	1134-6491-01	BRACKET-LH (OBSOLETE) (OBSOLETE)	N/A
019	1134-4242-01	SPACER WASHER	£4.78	Add to
020	1134-9998-01	STEERING WHEEL ASSEMBLY	£180.55	Add to
099	1134-7498-01	REPAIR KIT-THREAD INSERT	£29.55	Add to
