LIFTING DEVICE

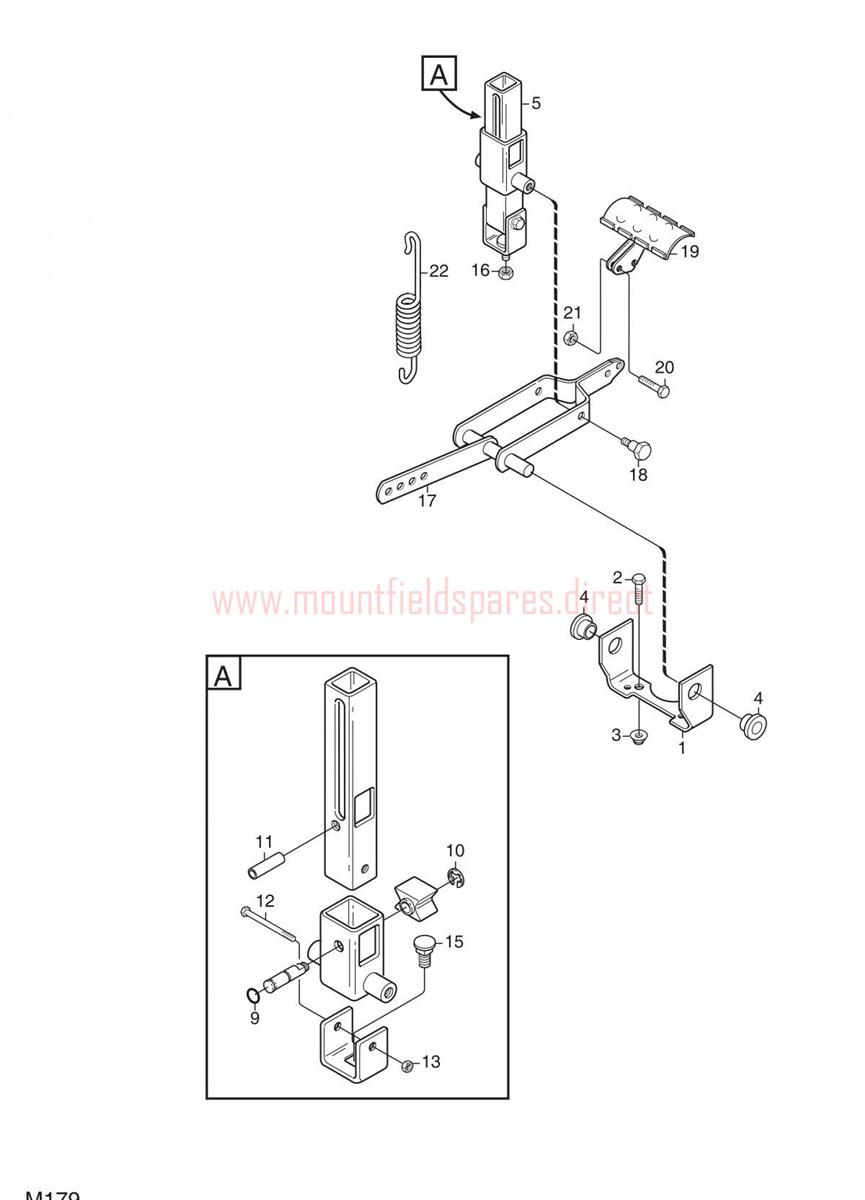

LIFTING DEVICE assembly details for Mountfield MSPL2011_20110321_2135H 2011 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-4117-01	BRACKET	£32.99	Add to
002	9959-1025-16	SCREW M6SF M10 x 25 TL	£3.00	Add to
003	9739-1031-22	NUT M10	£2.32	Add to
004	1134-2684-01	BUSH	£7.10	Add to
005	1134-4945-01	LIFT CATCH ASSEMBLY	£124.29	Add to
009	9404-0027-01	O RING 4.48 X 1.78	£3.00	Add to
010	9650-0039-04	CIRCLIP 8mm	£2.47	Add to
011	9595-0276-01	LOCATING PIN	£3.55	Add to
012	112689500/0	SCREW M6 x 40	£2.06	Add to
013	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
015	9897-0820-16	SCREW M8 x 20	£2.32	Add to
016	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
017	1134-4860-01	LIFT FORK (OBSOLETE)	N/A
018	1134-0240-00	SCREW	£9.14	Add to
019	1134-4938-01	LIFT PEDAL	£24.95	Add to
020	112791500/0	SCREW TE M6x25 UNI 5739 ACC.8.8	£2.06	Add to
021	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
022	4231-0013-00	SPRING	£8.87	Add to
