WHEELS

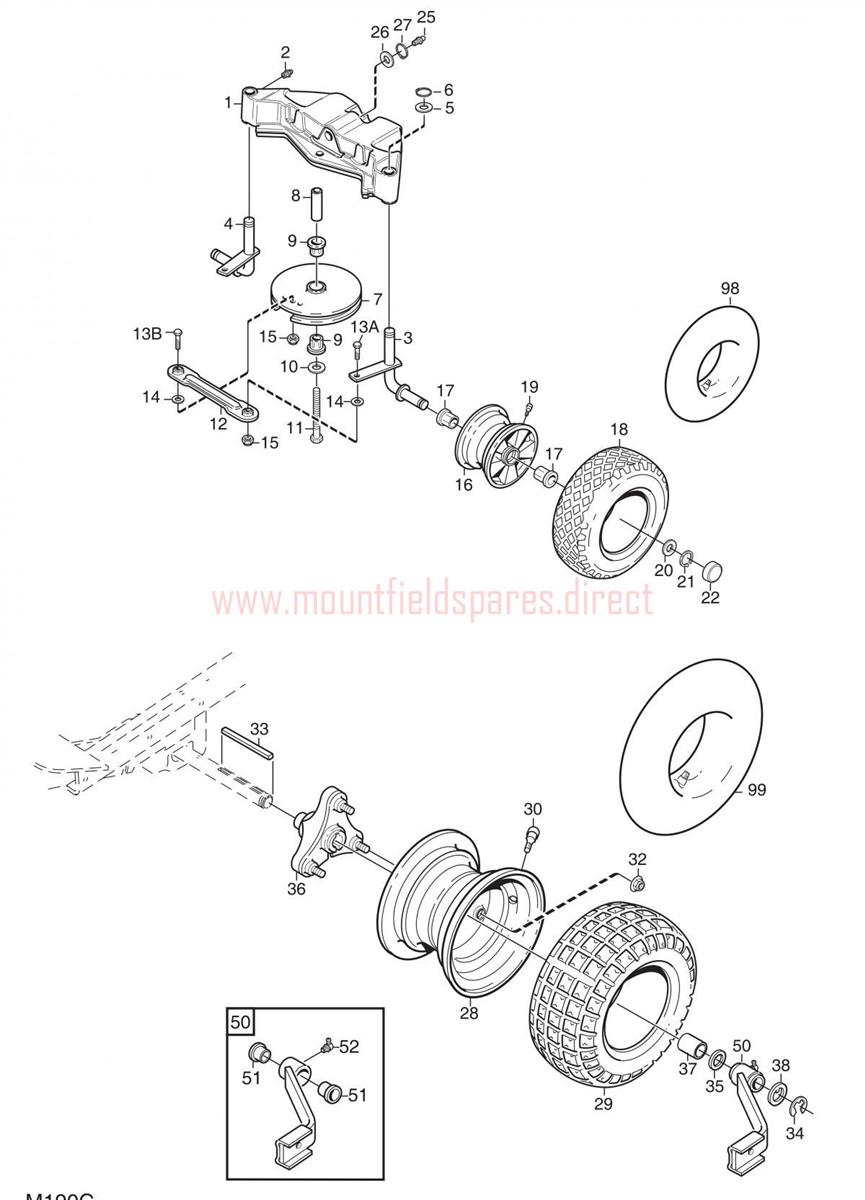

WHEELS assembly details for Mountfield MSPL2011_20110321_2135H 2011 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-6703-01	REAR AXLE	£436.34	Add to
002	112379511/0	STRAIGHT GREASE NIPPLE M6 x 1	£2.06	Add to
003	1134-5009-02	LEFT STUB AXLE	£62.97	Add to
004	1134-5009-01	RIGHT STUB AXLE	£62.97	Add to
005	9699-0088-02	WASHER	£2.47	Add to
006	112609260/0	CIRCLIP D=20	£2.02	Add to
007	1137-0090-01	STEERING PULLEY	£90.98	Add to
008	1134-5575-01	SPACER SLEEVE	£7.92	Add to
009	1134-9024-01	PLASTIC BUSH (4 PCS)	£19.66	Add to
010	112521390/0	WASHER M16 17 x 30 x 3	£1.91	Add to
011	112694100/0	HEX-HEAD SCREW M16 x 80	£3.69	Add to
012	1134-3247-05	TIE ROD	£31.63	Add to
014	112521350/0	WASHER M8 8.4 x 16 x 1.6	£2.06	Add to
015	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
016	187000452/0	REAR WHEEL RIM 3.5" x 6"	£112.33	Add to
017	137038009/0	WHEEL BUSH	£6.09	Add to
018	9545-0117-00	TYRE 13 X 5.00-6	£53.47	Add to
019	125950000/0	PNEUMATIC VALVE	£5.73	Add to
020	1134-0341-01	WASHER	£7.10	Add to
022	1134-4344-01	HUB CAP [BLACK]	£9.82	Add to
028	1134-5255-01	RIM	£107.93	Add to
029	9545-0126-01	TYRE 16 x 6.00-8	£72.50	Add to
032	9731-1031-22	LOCK NUT M6MF M10	£2.47	Add to
033	1134-2471-03	KEY	£8.87	Add to
034	9653-0001-04	CIRCLIP 3/4"	£2.61	Add to
036	1134-4844-02	WHEEL HUB ASSEMBLY	£57.52	Add to
037	1134-4845-02	HUB SLEEVE	£9.00	Add to
038	1134-4981-01	WASHER	£3.41	Add to
050	1134-6274-01	ATTACHMENT ARM	£39.80	Add to
052	9501-0502-00	GREASE JOINT	£8.87	Add to
098	Inner	tube (OBSOLETE)	N/A
13A	112793301/0	HEX-HEAD SCREW M8 x 25	£2.06	Add to
13B	119216047/0	HEX-HEAD SCREW M8 X 35	£2.06	Add to
