FOOT CONTROLS

FOOT CONTROLS assembly details for Mountfield MSPL2011_20110321_4155H 2011 model

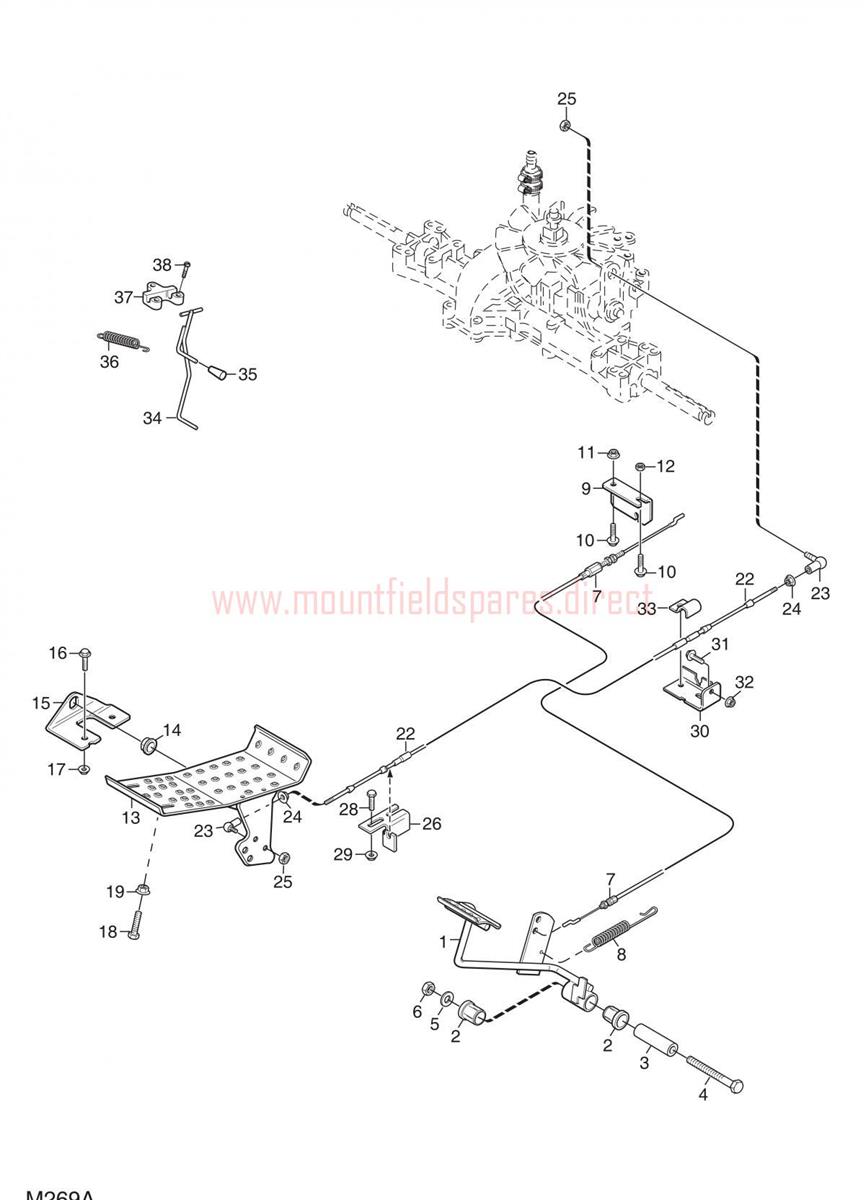

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-5655-01	BRAKE/CLUTCH PEDAL	£58.87	Add to
002	1134-9024-01	PLASTIC BUSH (4 PCS)	£19.66	Add to
003	1134-5677-02	SPACER	£11.04	Add to
004	9997-1070-12	SCREW M6S (M10 X 70)	£3.81	Add to
005	9699-0030-02	WASHER (10 X 26 X 2)	£2.14	Add to
006	9739-1031-22	NUT M10	£2.32	Add to
007	187000211/1	BRAKE CABLE	£35.71	Add to
008	4231-0013-00	SPRING	£8.87	Add to
009	1134-6467-01	CABLE HOLDER	£6.55	Add to
010	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
011	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
012	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
013	1134-6353-01	IMPLEMENT PEDAL	£43.62	Add to
014	1134-6313-01	BEARING	£7.36	Add to
015	1134-2700-01	BRACKET	£17.45	Add to
018	9997-0835-16	SCREW M6S 8 x 35	£2.32	Add to
022	1134-2766-05	SPEED CONTROL CABLE	£76.59	Add to
023	9570-0001-00	ELBOW LINK	£18.90	Add to
024	9739-0531-22	NUT M5	£2.47	Add to
025	112154330/0	LOW SELF-LOCKING NUT M5	£2.06	Add to
026	1134-6317-01	WIRE BRACKET	£8.73	Add to
028	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
029	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
030	1134-3395-01	ATTACHMENT BRACKET	£30.26	Add to
033	1134-2021-01	CLAMP	£7.36	Add to
034	1134-5353-01	BRAKE ROD	£29.61	Add to
035	1134-2786-01	PLASTIC KNOB	£6.42	Add to
036	1131-1497-01	BRAKE SPRING	£10.50	Add to
037	1134-4002-01	BRAKE ROD ATTACHMENT	£12.27	Add to
038	9838-9516-12	SCREW K50 x 16	£2.47	Add to
