FRAME 4WD

FRAME 4WD assembly details for Mountfield MSPL2011_20110321_4155H 2011 model

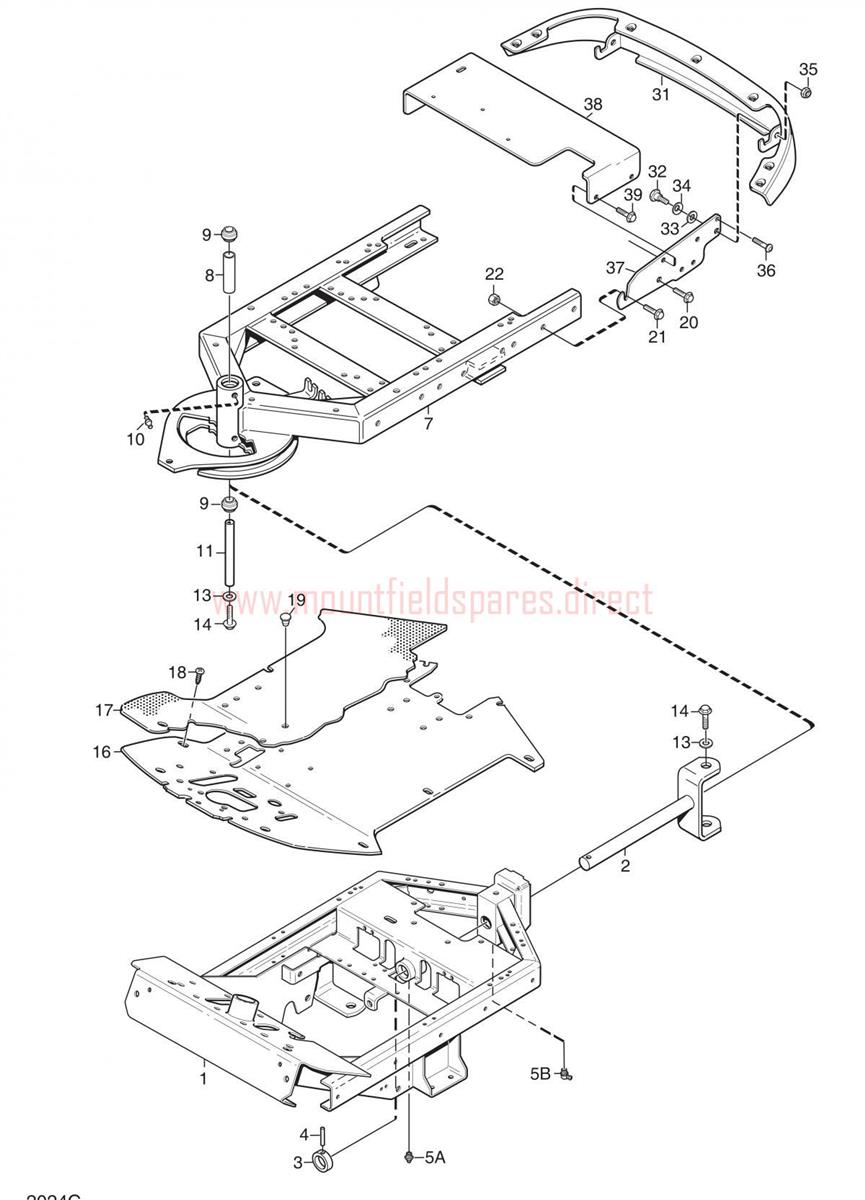

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1137-0100-01	Frame-front (OBSOLETE)	N/A
002	1137-1119-02	CLEVIS FORK	£170.61	Add to
003	1134-0031-00	PIVOT SHAFT STOP	£24.95	Add to
004	9595-0262-00	LOCATING PIN	£2.06	Add to
007	1134-6466-02	REAR FRAME ASSEMBLY	£490.85	Add to
008	1134-5705-01	SPACER	£19.36	Add to
009	9547-0001-00	BEARING	£24.95	Add to
011	1134-5988-01	CENTRE SHAFT	£22.76	Add to
013	112521360/0	WASHER M10 10.5 x 20 x 2	£2.06	Add to
014	9959-1025-16	SCREW M6SF M10 x 25 TL	£3.00	Add to
016	1134-6586-01	FLOOR PLATE	£170.61	Add to
017	1134-6372-04	Floor mat (OBSOLETE)	N/A
018	9893-0616-16	SCREW M6 x 16	£2.47	Add to
019	9403-0048-70	COVER PLUG	£9.68	Add to
020	1134-4242-01	SPACER WASHER	£4.78	Add to
021	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
022	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
031	1134-5337-01	BUMPER ASSY-REAR (BLACK) 5-01	£239.73	Add to
032	1134-0240-00	SCREW	£9.14	Add to
033	1134-4242-01	SPACER WASHER	£4.78	Add to
034	9665-0002-00	BOWL WASHER	£2.61	Add to
035	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
036	112735654/0	SELF-TAPPING SCREW M5 x 16	£2.74	Add to
037	1134-5345-01	BATTERY BRACKET	£87.50	Add to
038	1134-5344-01	BATTERY SHELF	£74.78	Add to
05A	112379511/0	STRAIGHT GREASE NIPPLE M6 x 1	£2.06	Add to
05B	9501-0504-01	GREASE NIPPLE M6	£3.69	Add to
