POWER TAKE-OFF 4WD (1)

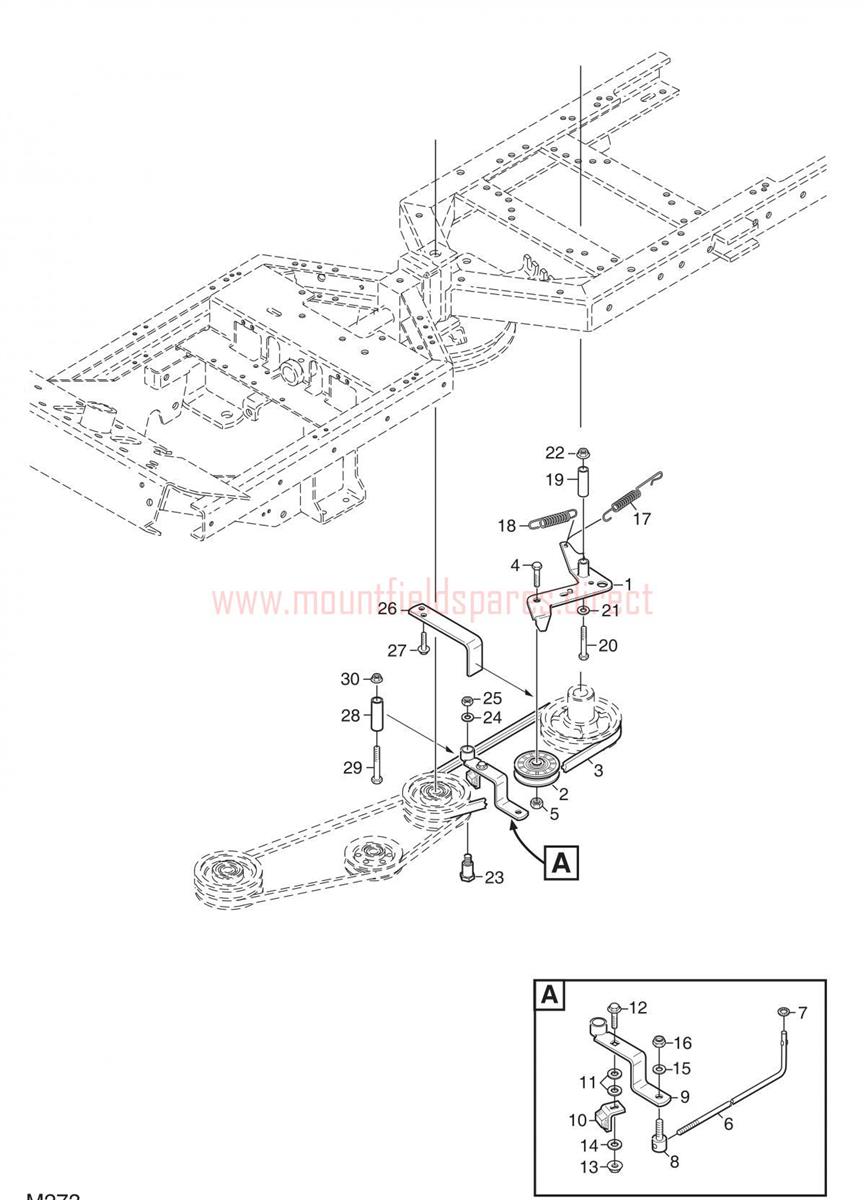

POWER TAKE-OFF 4WD (1) assembly details for Mountfield MSPL2011_20110321_4155H 2011 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-2018-02	TENSION ARM	£39.29	Add to
002	387605008/0	TENSION PULLEY [GREY]	£35.71	Add to
003	1134-9173-01	PTO DRIVE BELT [KEVLAR]	£31.63	Add to
004	9997-1030-16	SCREW M6S M10 x 30	£3.00	Add to
005	112295200/0	HEXAGON NUT M10	£1.79	Add to
006	1134-4162-01	BRAKE ROD	£14.05	Add to
007	9675-0008-02	STARLOCK WASHER D=5	£4.01	Add to
008	1134-4170-01	PIVOT BOLT	£14.32	Add to
009	1134-4111-01	BRAKE ARM	£31.63	Add to
010	1134-4164-03	BRAKE PAD	£32.99	Add to
011	112521360/0	WASHER M10 10.5 x 20 x 2	£2.06	Add to
012	9897-0825-16	SCREW M8 x 25	£3.15	Add to
013	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
014	112521350/0	WASHER M8 8.4 x 16 x 1.6	£2.06	Add to
015	112521330/0	WASHER M6 6.4 X 12 X 1.6	£2.06	Add to
016	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
017	4231-0013-00	SPRING	£8.87	Add to
018	1135-3307-01	BRAKE SPRING	£23.72	Add to
019	1134-1565-10	SPACER	£8.73	Add to
020	112793900/0	HEX-HEAD SCREW M8 x 60	£2.06	Add to
021	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
022	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
023	1134-4163-01	SHOULDER BOLT	£15.21	Add to
025	9739-1031-22	NUT M10	£2.32	Add to
026	1134-3958-01	BELT GUIDE	£17.45	Add to
027	9893-0616-16	SCREW M6 x 16	£2.47	Add to
028	1134-0041-03	BUSH	£11.59	Add to
029	9997-1070-12	SCREW M6S (M10 X 70)	£3.81	Add to
