STEERING 2WD

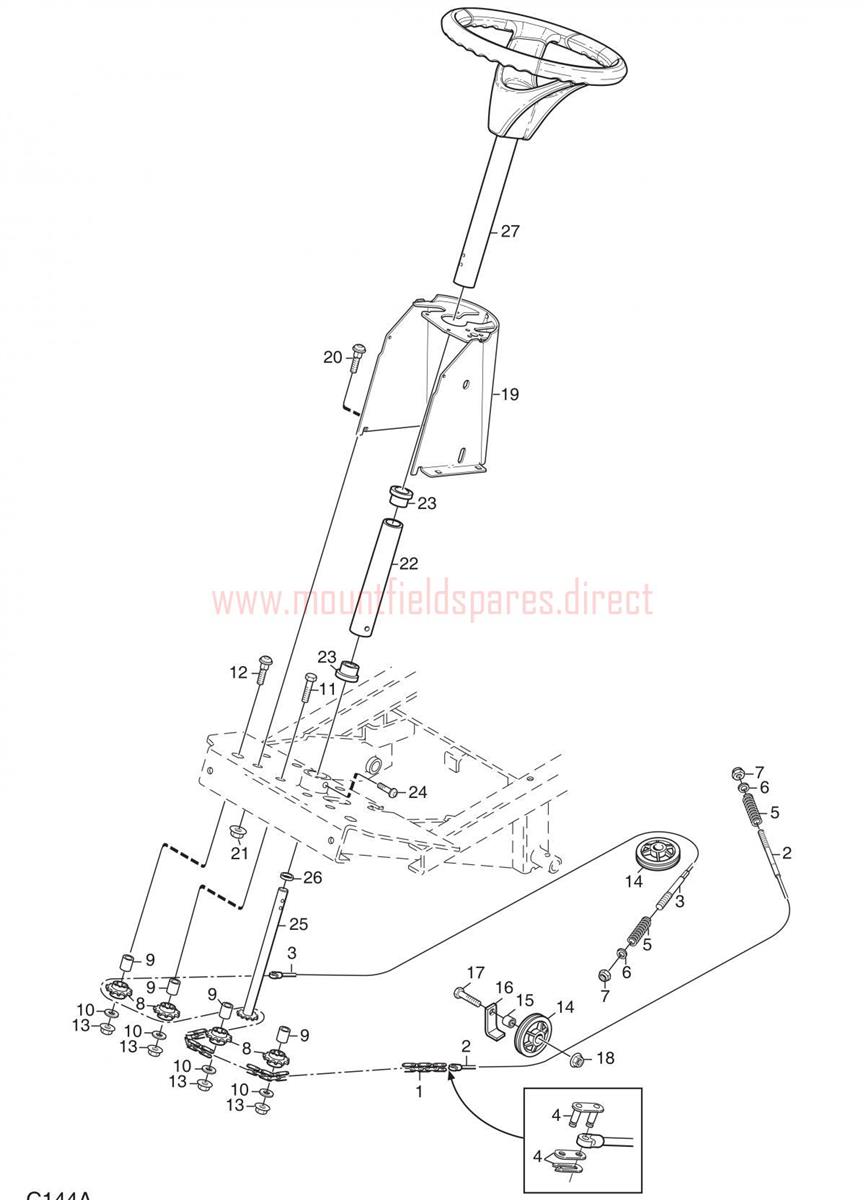

STEERING 2WD assembly details for Mountfield MSPL2011_20110321_4155H 2011 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	187000351/0	STEERING CHAIN 83M ELITE PC-PCH W/SERVO	£35.71	Add to
002	1134-2817-01	STEERING CABLE L/H	£27.26	Add to
003	1134-2817-02	STEERING CABLE R/H	£27.64	Add to
004	187060100/1	STEERING CHAIN LOCK	£7.62	Add to
005	1134-3817-01	COMPRESSION SPRING	£12.96	Add to
006	112521350/0	WASHER M8 8.4 x 16 x 1.6	£2.06	Add to
007	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
008	1134-2816-01	SPROCKET	£10.77	Add to
009	1134-0041-02	BUSH	£10.09	Add to
010	112521360/0	WASHER M10 10.5 x 20 x 2	£2.06	Add to
011	9997-1050-16	SCREW M6S M10 x 50	£2.87	Add to
012	9897-1040-12	SCREW M10 x 40	£3.49	Add to
013	9739-1031-22	NUT M10	£2.32	Add to
014	1134-0072-02	STEERING PULLEY	£7.78	Add to
015	1134-0041-01	BUSH	£9.41	Add to
016	1134-3022-01	BRACKET	£62.97	Add to
017	9997-1030-16	SCREW M6S M10 x 30	£3.00	Add to
019	1134-5349-04	STEERING CONSOLE [BLACK]	£134.62	Add to
020	9897-0820-16	SCREW M8 x 20	£2.32	Add to
021	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
022	1134-1305-05	LOWER STEERING COLUMN	£47.97	Add to
023	1134-1901-01	PLASTIC BUSH	£12.27	Add to
024	9893-0616-16	SCREW M6 x 16	£2.47	Add to
025	1137-0079-02	STEERING ROD	£42.53	Add to
026	1134-2837-01	SPACER	£9.54	Add to
027	1134-5496-03	STEERING WHEEL ASSY	£143.37	Add to
