WHEELS 4WD

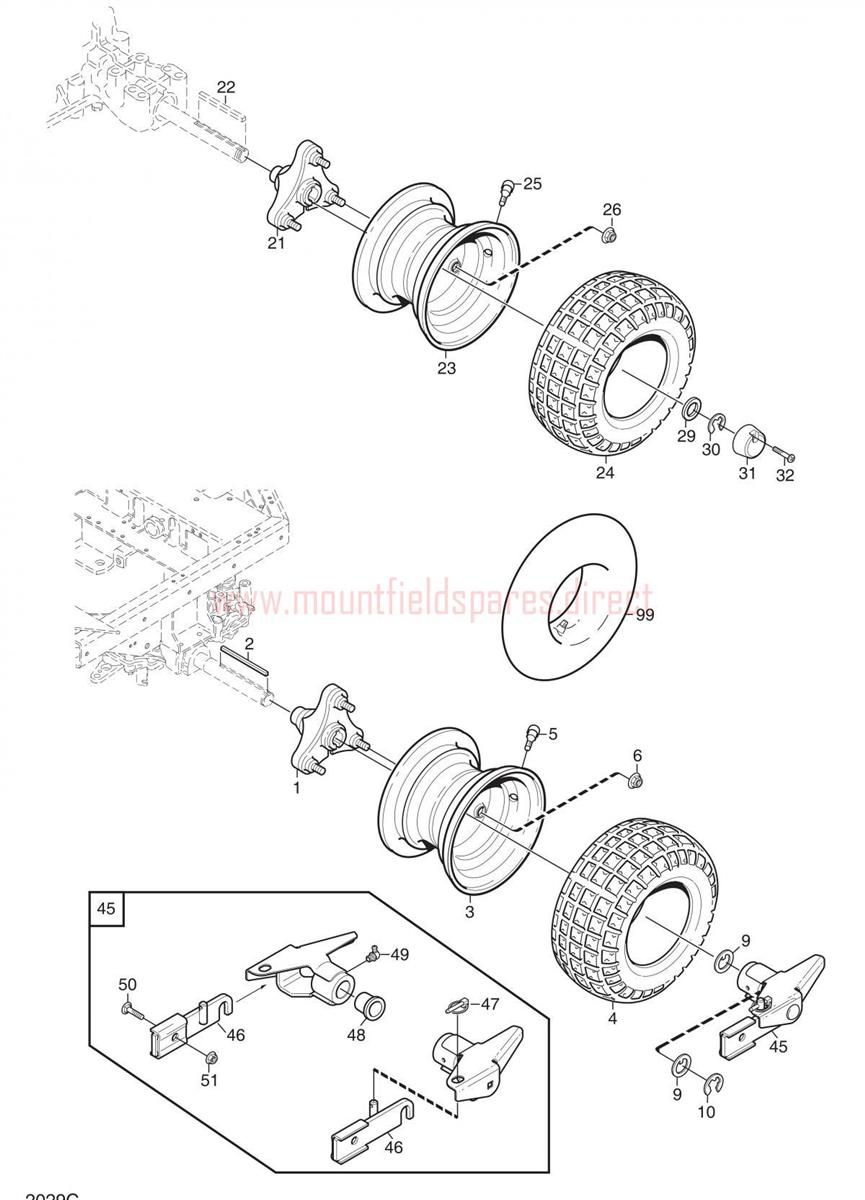

WHEELS 4WD assembly details for Mountfield MSPL2011_20110321_4155H 2011 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011134-4844-03WHEEL HUB ASSEMBLY£58.87 Add to
0021134-3383-02KEY (L=51 MM)£9.41 Add to
0031134-4558-01WHEEL RIM£107.93 Add to
0049545-0116-00TYRE 16 x 7.50-8£86.13 Add to
005125950000/0PNEUMATIC VALVE£5.73 Add to
0069731-1031-22LOCK NUT M6MF M10£2.47 Add to
009137670203/0WASHER DEST=45 DINT=25.6£5.05 Add to
0109653-0002-04CIRCLIP 1"£3.69 Add to
0211134-4844-02WHEEL HUB ASSEMBLY£57.52 Add to
0221134-2471-01KEY£9.41 Add to
0299699-0042-02WASHER 20 x 36 x 3£2.47 Add to
0309653-0001-04CIRCLIP 3/4"£2.61 Add to
0311134-4796-01HUB CAP£5.46 Add to
0329947-0540-19SCREW£2.06 Add to
04513-0993-61RAC QUICK CONNECTION 4WD PARK£145.95 Add to
0461134-7465-01ATTACHMENT HOOK PLATES [LH & RH]£53.42 Add to
0471137-0077-01LOCKING PIN£3.81 Add to
0481134-5686-01BEARING BUSH D= 25.4mm£14.58 Add to
0499501-0502-00GREASE JOINT£8.87 Add to
0509898-1035-16SCREW 10 x 35£3.15 Add to
0519739-1031-22NUT M10£2.32 Add to
099Innertube (OBSOLETE)N/A
