Body Work

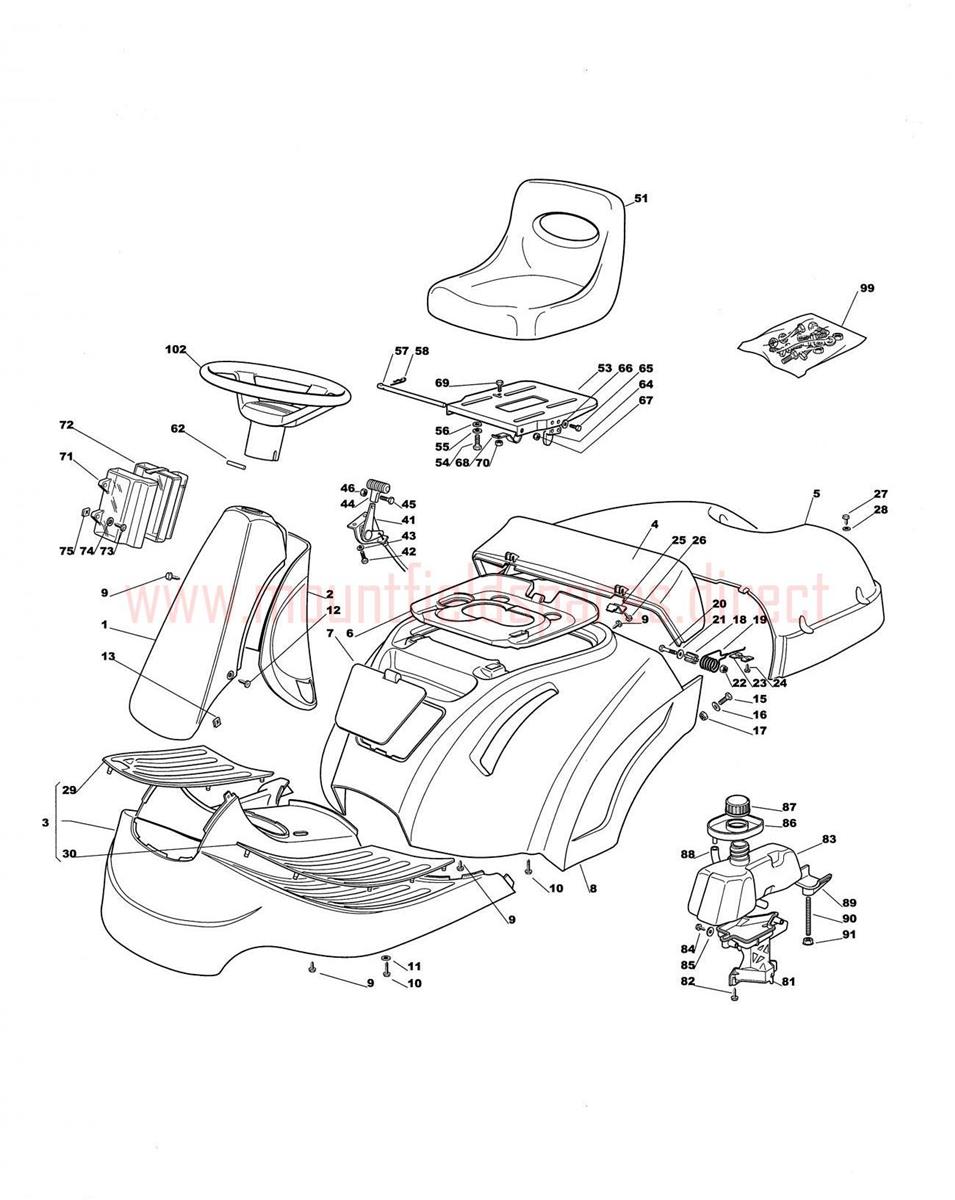

Body Work assembly details for Mountfield 1228M - 1228H (20100406) 2005 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	384598064/1	Front Cover Red (OBSOLETE)	N/A
002	327600128/0	REAR COVER [RED]	£24.64	Add to
003	327110574/0	FOOTBOARDS COVER [DARK RED]	£150.18	Add to
004	327110302/2	FIXED GRASSCATCHER COVER [RED]	£26.18	Add to
005	327110303/2	GRASSCATCHER TOP [RED]	£71.33	Add to
006	327110306/2	ENGINE COVER [BLACK]	£20.45	Add to
007	327109501/2	FRONT COVER CAP [RED]	£11.67	Add to
008	384110100/4	WHEELS COVER [RED]	£177.43	Add to
008	384110107/5	WHEELS COVER [RED]	£181.49	Add to
009	112735402/0	FLANGED HEX-HEAD SCREW D=6 x 18 WZ	£2.06	Add to
010	112735410/0	FLANGED HEX-HEAD SCREW D=6 x 35	£2.06	Add to
011	112523040/0	WASHER M6 6.6 x 18 x 1.6	£2.06	Add to
012	112735598/0	SCREW	£2.06	Add to
013	112437503/0	LOCK PLATE	£2.06	Add to
015	9997-0616-16	SCREW M6S M6 x 16	£4.01	Add to
017	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
018	127047003/0	BUSH	£2.06	Add to
020	112691200/0	HEX-HEAD SCREW M8 x 45	£2.06	Add to
021	112523070/0	WASHER M8 8.5 x 32 x 2.5	£2.06	Add to
022	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
023	327546001/0	SPRING PLATE	£1.79	Add to
025	327546003/0	COVER PLATE	£2.06	Add to
027	112729601/1	SELF-TAP SCREW TE FL 5.5 x 16	£2.06	Add to
028	112521360/0	WASHER M10 10.5 x 20 x 2	£2.06	Add to
029	127110304/0	RIGHT FOOTBOARD COVER [BLACK]	£10.23	Add to
030	127110305/0	LEFT FOOTBOARD COVER [BLACK]	£11.04	Add to
041	184000250/1	THROTTLE CABLE	£26.18	Add to
042	112788512/0	SCREW M4 x 12	£2.06	Add to
043	112581200/0	WASHER M4 4.1 x 7.1 x 0.9	£2.06	Add to
044	125394501/0	THROTTLE HANDLE [BLACK]	£2.06	Add to
045	112726388/0	CROSS-HEAD SCREW M4X12	£2.06	Add to
046	112290800/0	HEXAGON NUT M4 UNI 5588 ACC.6S	£2.06	Add to
051	125722453/1	SEAT	£187.79	Add to
053	325547033/1	SEAT PLATE	£38.44	Add to
054	112793102/0	SCREW TE M8x20 UNI 5739 ACC.8.8	£2.06	Add to
055	112583500/0	WASHER M8 UNI 1751 WZ	£2.06	Add to
056	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
057	127864052/1	SEAT ROD	£7.10	Add to
058	124487997/0	SPRING CLIP D=1.8	£2.06	Add to
062	112620299/0	SPIROL FLEXIBLE PIN 6 x 45	£1.91	Add to
064	327063021/1	MICRO SEAT OPERATION CAM	£2.74	Add to
065	112789100/0	HEX-HEAD SCREW M5 x 30	£2.06	Add to
066	112523020/0	WASHER M5 5.5 x 15 x 1.6	£2.06	Add to
067	112154330/0	LOW SELF-LOCKING NUT M5	£2.06	Add to
068	125430223/2	SEAT LIFTING SPRING	£6.55	Add to
069	112789000/0	SCREW TE M5 x 12	£2.06	Add to
071	125600020/0	UPPER GUARD	£9.62	Add to
072	125600021/1	LOWER GUARD	£10.25	Add to
073	112728460/0	SELF-TAPP.SCREW 4.8X38 UNI 6954	£2.06	Add to
074	9699-0024-02	WASHER 2011	£3.64	Add to
075	112437502/0	PLATE	£2.06	Add to
081	1136-1491-01	Support (OBSOLETE)	N/A
083	127733003/1	FUEL TANK	£62.97	Add to
086	1136-1488-01	Guard (OBSOLETE)	N/A
087	125795000/1	FUEL TANK CAP	£8.04	Add to
088	1136-1478-01	Tube Rohr (OBSOLETE)	N/A
089	1136-1492-01	Support Stutz (OBSOLETE)	N/A
090	1136-1487-01	Stud Bolzen (OBSOLETE)	N/A
091	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
099	1136-1238-01	Key outfit Schraubensatz (OBSOLETE)	N/A
102	1136-1972-01	Steering wheel Lenkrad (OBSOLETE)	N/A
