Brake and Drive Control

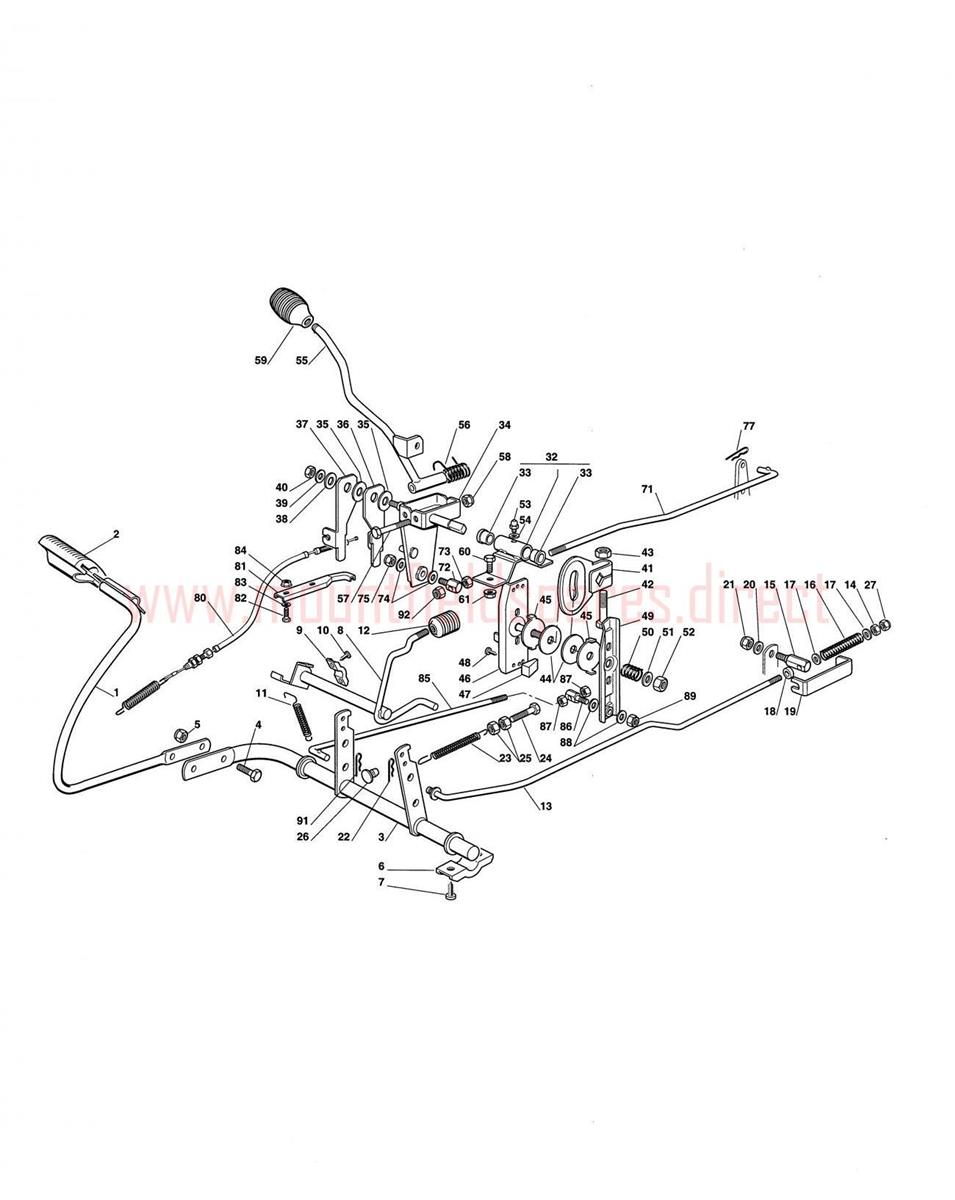

Brake and Drive Control assembly details for Mountfield 1228M - 1228H (20100406) 2005 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001384503001/0BRAKE PEDAL ASSEMBLY£24.95 Add to
002125110267/0BRAKE PEDAL COVER£4.23 Add to
003384001015/1BRAKE PEDAL FULCRUM AXLE£43.23 Add to
004112793301/0HEX-HEAD SCREW M8 x 25£2.06 Add to
005112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
006327546015/2WZ FLAT FULCR.AXLE FIX PLATE£2.06 Add to
007112731350/0SELF-TAP SCREW TE 5.5 X 19 UNI 6949 C15£2.06 Add to
008384001011/2PARKING BRAKE AXLE£12.77 Add to
009325547049/0AXLE FIXING PLATE£3.55 Add to
0109847-8016-16SCREW RXS B10 x 16£2.32 Add to
011127430552/0SPRING£2.06 Add to
012127395050/1BLACK BRAKE KNOB RIDER/TCJ£3.40 Add to
0131136-0930-01Rod (OBSOLETE)N/A
014112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
0151136-0402-01Pivot bolt (OBSOLETE)N/A
016125430236/0BRAKE ROD SPRING£6.79 Add to
017112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
018122171001/0SPACER£2.06 Add to
019325774275/1CLAMP BRACKET£3.83 Add to
020112523050/0WASHER M6 6.6 x 24 x 2£2.06 Add to
021112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
022124487997/0SPRING CLIP D=1.8£2.06 Add to
023125430210/1BRAKE SPRING£3.00 Add to
024122943005/0SCREW£2.87 Add to
026127275000/0RUBBER GROMMET FOR BRAKE PEDAL£3.55 Add to
032384773568/0SPEED CONTROL LEVER BRACKET£41.65 Add to
033127045080/0BUSH£5.60 Add to
034384773561/0CONTROL LEVER BRACKET£48.18 Add to
035322672151/0ANTI-FRICTION WASHER 12.2 x 30 x 0.8£1.91 Add to
036327772101/0CLAMP PLATE£2.87 Add to
037327772103/0CLAMP PLATE£2.47 Add to
038322672152/0ANTI-FRICTION WASHER 8.2 x 30 x 0.8£1.91 Add to
039112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
040112155010/0SELF-LOCKING NUT M8 A-LOK ACC.6S£2.47 Add to
041327734055/0BRACKET£3.41 Add to
042112794900/0HEX-HEAD SCREW M10 x 50£2.06 Add to
043112155020/0SELF-BINDING NUT M10£2.06 Add to
044127158000/0CLUTCH WASHER£21.26 Add to
045327670053/0WASHER£2.06 Add to
046384773565/0CLUTCH BRACKET ASSEMBLY£17.18 Add to
048112735110/0FLANGED SELF-TAP SCREW 4.8 X 13£2.81 Add to
049384773563/0CLUTCH CONTROL LEVER£6.69 Add to
050127430560/0CLUTCH SPRING£15.69 Add to
051325670008/1ANTI-FRICTION WASHER 10.8 x 19 x 0.8£2.06 Add to
053112379511/0STRAIGHT GREASE NIPPLE M6 x 1£2.06 Add to
054112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
055384317051/2SPEED CONTROL LEVER RIDER ME./HY ASS.Y£42.33 Add to
056125430226/0DRIVE CONTROL LEVER SPRING WZ TCJ£2.18 Add to
057112692050/0HEX-HEAD SCREW£1.91 Add to
059182394508/0GEAR CONTROL KNOB [BLACK]£8.73 Add to
060112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
061112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0711136-0931-01Rod (OBSOLETE)N/A
074325670011/0ANTI-FRICTION WASHER 8.2 x 19 x 0.8£2.06 Add to
080184207101/1CLUTCH RETURN CABLE£34.35 Add to
081327772105/0CLAMP PLATE£2.06 Add to
0829997-0620-16SCREW M6S M6 x 20£2.06 Add to
084112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
0851136-0929-01Rod (OBSOLETE)N/A
