Brake and Gear Shifter Control

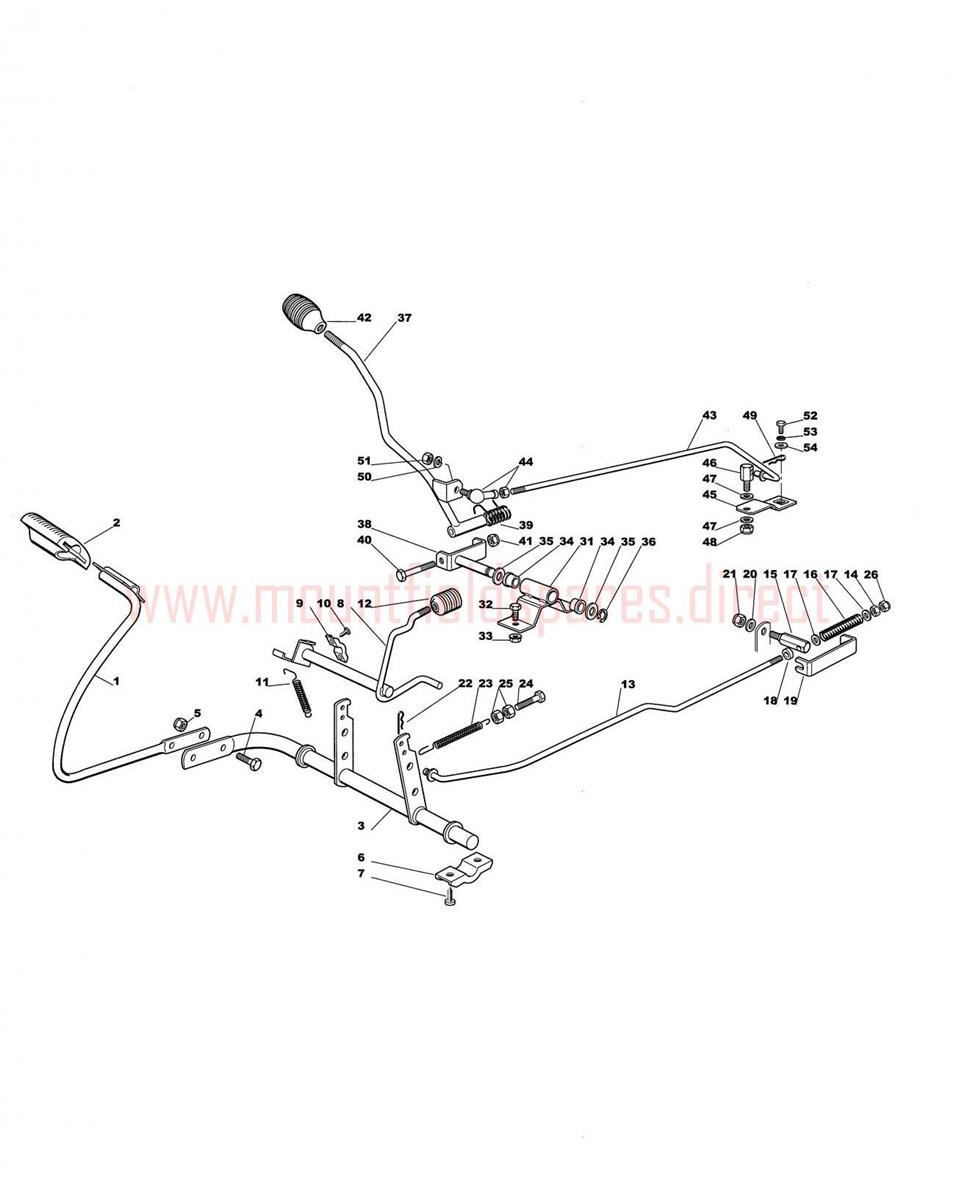

Brake and Gear Shifter Control assembly details for Mountfield 1228M - 1228H (20100406) 2005 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001384503001/0BRAKE PEDAL ASSEMBLY£24.95 Add to
002125110269/0BRAKE PEDAL COVER£4.10 Add to
003384001015/1BRAKE PEDAL FULCRUM AXLE£43.23 Add to
004112793301/0HEX-HEAD SCREW M8 x 25£2.06 Add to
005112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
006327546015/2WZ FLAT FULCR.AXLE FIX PLATE£2.06 Add to
007112731350/0SELF-TAP SCREW TE 5.5 X 19 UNI 6949 C15£2.06 Add to
008384001011/2PARKING BRAKE AXLE£12.77 Add to
009325547049/0AXLE FIXING PLATE£3.55 Add to
0109847-8016-16SCREW RXS B10 x 16£2.32 Add to
011127430552/0SPRING£2.06 Add to
012127395050/1BLACK BRAKE KNOB RIDER/TCJ£3.40 Add to
0131136-0930-01Rod (OBSOLETE)N/A
014112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
0151136-1485-01Pivot bolt (OBSOLETE)N/A
016125430236/0BRAKE ROD SPRING£6.79 Add to
017112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
018122171001/0SPACER£2.06 Add to
019325774275/1CLAMP BRACKET£3.83 Add to
020112523050/0WASHER M6 6.6 x 24 x 2£2.06 Add to
021112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
022124487997/0SPRING CLIP D=1.8£2.06 Add to
023125430220/0SPRING£4.52 Add to
024122943005/0SCREW£2.87 Add to
0311136-0589-01Support (OBSOLETE)N/A
032112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
033112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0341136-0374-01Bushing (OBSOLETE)N/A
035112521370/0WASHER M12 13 24 x 2.5£2.06 Add to
036112608600/0CIRCLIP D=12£2.08 Add to
037384317051/2SPEED CONTROL LEVER RIDER ME./HY ASS.Y£42.33 Add to
0381136-0590-01Clamp (OBSOLETE)N/A
039125430226/0DRIVE CONTROL LEVER SPRING WZ TCJ£2.18 Add to
040112692050/0HEX-HEAD SCREW£1.91 Add to
042182394508/0GEAR CONTROL KNOB [BLACK]£8.73 Add to
0431136-0366-01Shifter rod (OBSOLETE)N/A
044122746610/0ANGULAR JOINT NS13 M8£17.86 Add to
0451136-0390-01Gearshift arm (OBSOLETE)N/A
047325670011/0ANTI-FRICTION WASHER 8.2 x 19 x 0.8£2.06 Add to
050112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
052112735520/0"HEX-HEAD SCREW 1/4"" x 5/8"""£2.06 Add to
053112540040/0EXTERNAL TOOTHED WASHER M6£1.79 Add to
054322680009/0FLAT WASHER 6.5 x 32 x 4 WZ£1.91 Add to
