Chassis

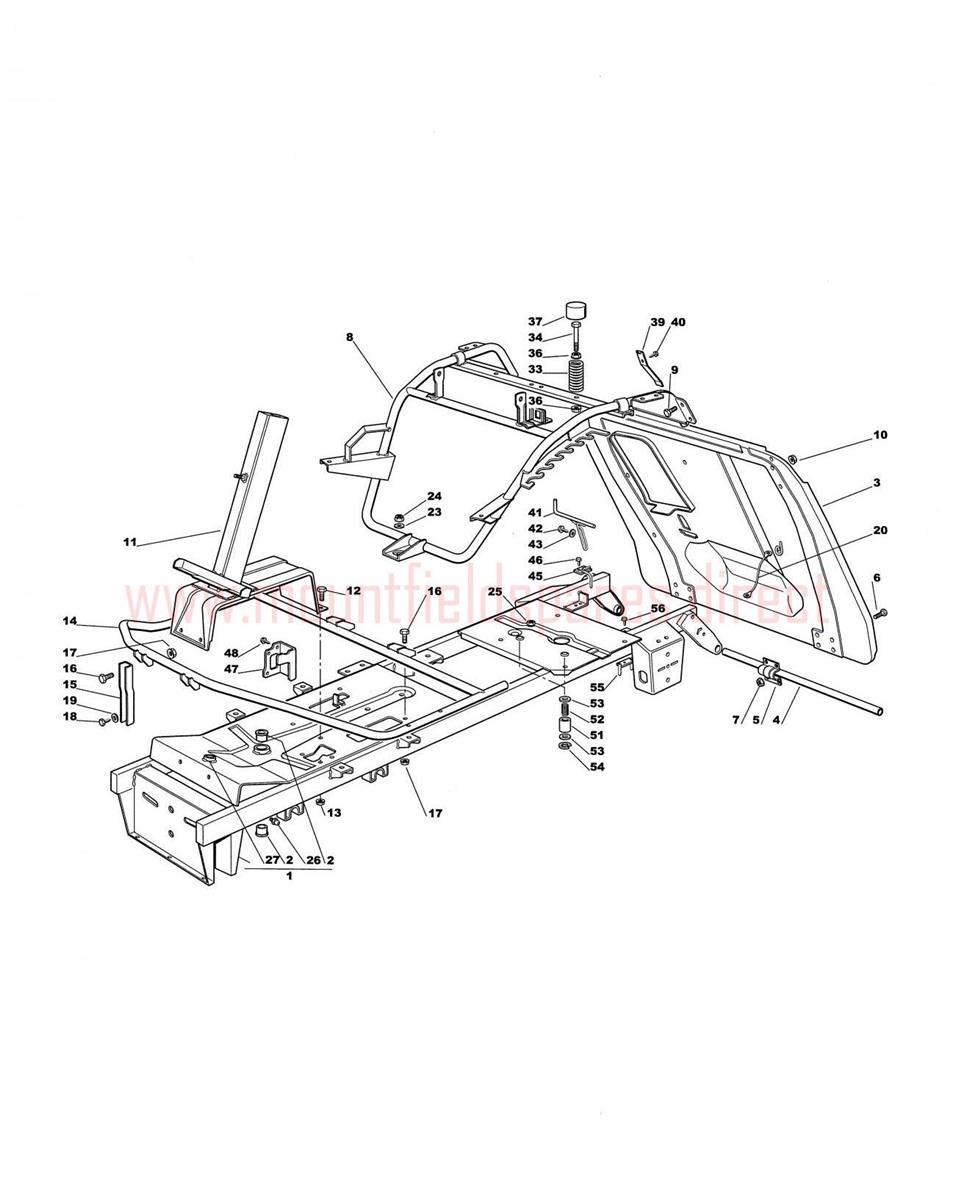

Chassis assembly details for Mountfield 1228M - 1228H (20100406) 2005 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011136-1505-01Frame (OBSOLETE)N/A
002125034002/1BUSH£3.96 Add to
003384545057/3REAR PLATE [BLACK]£170.61 Add to
0041136-0371-01Pivot (OBSOLETE)N/A
005325547012/1BRAKE PEDAL PLATE£4.52 Add to
0069997-0616-16SCREW M6S M6 x 16£4.01 Add to
007112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
008384801127/0SEAT SUPPORT FRAME£159.45 Add to
009112792610/0HEX-HEAD SCREW M8 x 16£2.02 Add to
010112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0111136-1504-01Support (OBSOLETE)N/A
0141136-0595-01Footboard holder (OBSOLETE)N/A
015327787025/0FRAME SUPPORT£3.55 Add to
0189847-8216-16SCREW (OBSOLETE)N/A
019112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
020384040300/0CORD£3.64 Add to
023112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
024112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
02512500090/0RIVET RIDER 2008£4.01 Add to
026112379511/0STRAIGHT GREASE NIPPLE M6 x 1£2.06 Add to
027125034001/0BUSH£4.23 Add to
0331136-1240-01Spring (OBSOLETE)N/A
0341136-1493-01Screw (OBSOLETE)N/A
037325122000/2PROTECTION CAP£2.06 Add to
0391136-0395-01Spring (OBSOLETE)N/A
040112735110/0FLANGED SELF-TAP SCREW 4.8 X 13£2.81 Add to
041127294001/0REAR CONVEYOR GUIDE£20.72 Add to
043112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
0451136-0388-01Belt guide (OBSOLETE)N/A
047327772095/0SUPPORT BRACKET£2.06 Add to
0489847-7809-16SCREW ST 3.5X9.5£5.21 Add to
051127047012/0BUSH£13.49 Add to
052127430577/0RETURN SPRING£6.27 Add to
053325670008/1ANTI-FRICTION WASHER 10.8 x 19 x 0.8£2.06 Add to
054112000955/0CIRCLIP D=8£1.79 Add to
0551136-1501-01Belt guide (OBSOLETE)N/A
