Engine

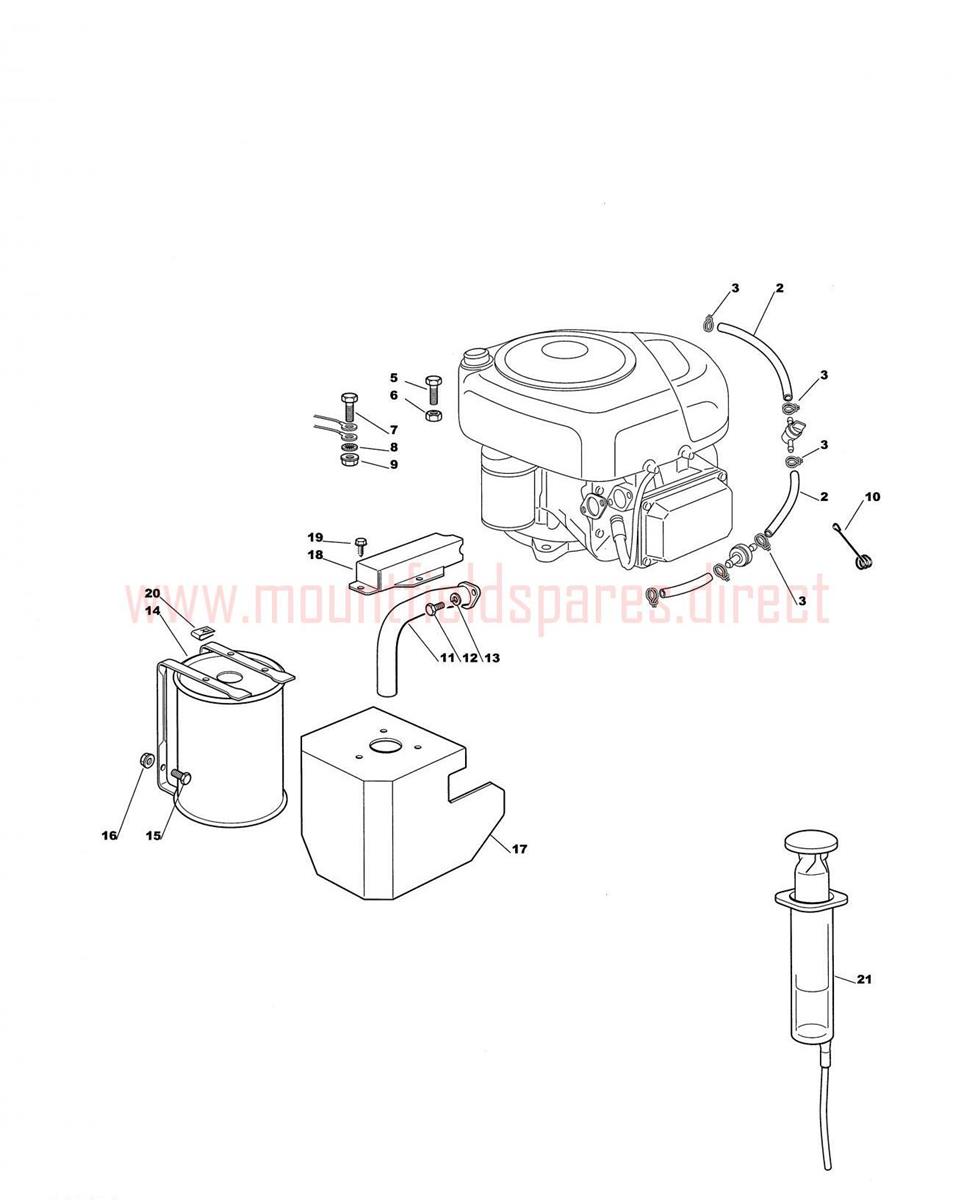

Engine assembly details for Mountfield 1228M - 1228H (20100406) 2005 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
002	325869035/1	CONNECTING TUBE	£9.82	Add to
003	118375051/1	CABLE CLAMP B&S [GREEN]	£1.91	Add to
005	119216047/0	HEX-HEAD SCREW M8 X 35	£2.06	Add to
006	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
007	9997-0840-16	SCREW M6S M8 x 40	£2.06	Add to
008	112540260/0	INNER TOOTHED WASHER M8	£2.06	Add to
010	125430239/1	SPRING	£2.32	Add to
011	118738225/0	EXHAUST PIPE	£57.52	Add to
012	1136-1466-01	Screw (OBSOLETE)	N/A
013	112583500/0	WASHER M8 UNI 1751 WZ	£2.06	Add to
014	1136-1494-01	Muffler (OBSOLETE)	N/A
015	112793102/0	SCREW TE M8x20 UNI 5739 ACC.8.8	£2.06	Add to
017	1136-1503-01	Muffler protection (OBSOLETE)	N/A
018	1136-1489-01	Protection (OBSOLETE)	N/A
019	112729601/1	SELF-TAP SCREW TE FL 5.5 x 16	£2.06	Add to
020	1136-1464-01	Lock plate (OBSOLETE)	N/A
021	118718000/0	OIL EMPTYING SYRINGE	£16.22	Add to
