Transmission (1)

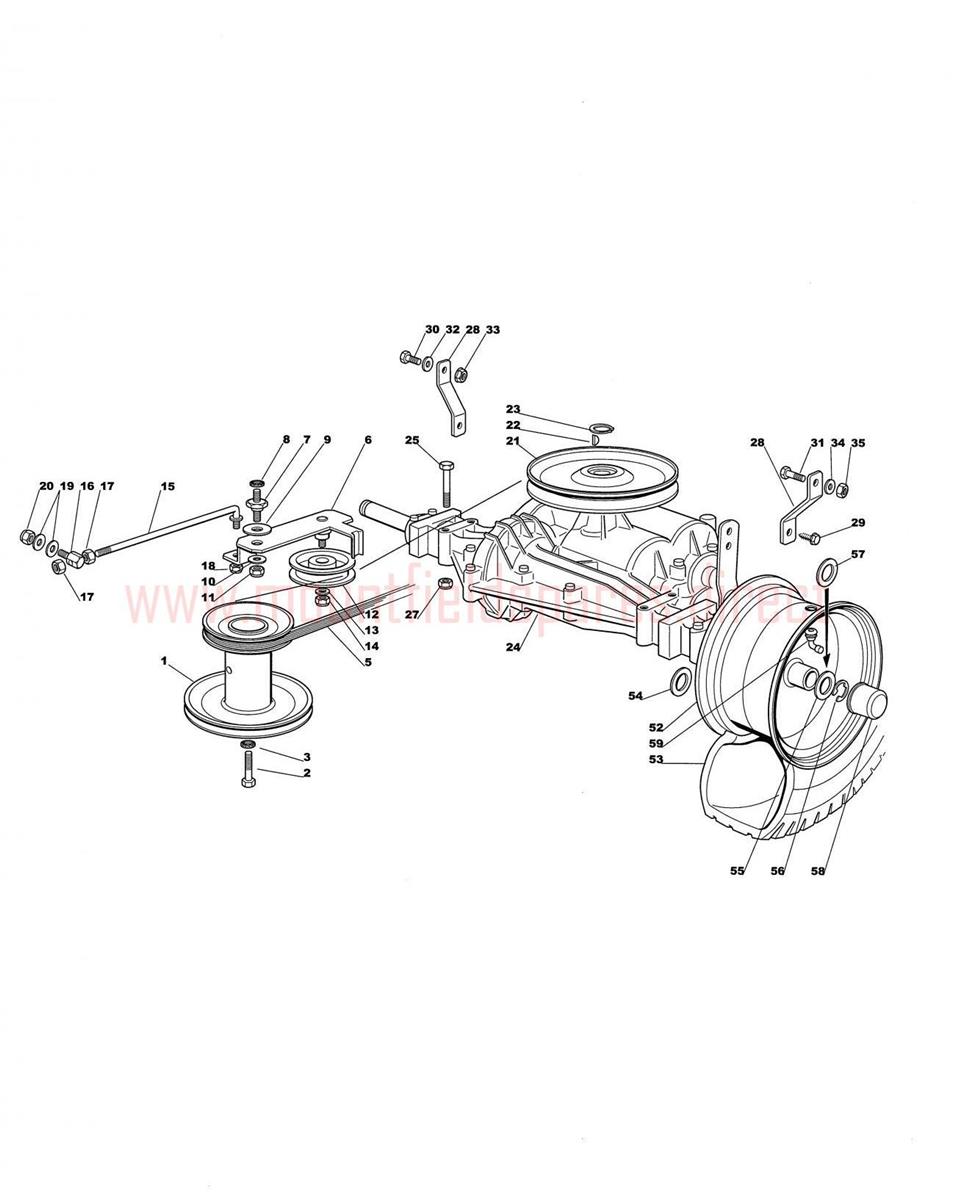

Transmission (1) assembly details for Mountfield 1228M - 1228H (20100406) 2005 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001127604003/1ENGINE PULLEY£83.40 Add to
002112737310/0HEX-HEAD SCREW 7/16" x 2" 20 UNF£1.90 Add to
003120001173/0SPRING£4.01 Add to
005135061400/0TRAPEZOIDAL BELT A33 1/4£35.71 Add to
0061136-0578-01Tension arm (OBSOLETE)N/A
007127510096/0FULCRUM PIN£5.19 Add to
008112540260/0INNER TOOTHED WASHER M8£2.06 Add to
009322672151/0ANTI-FRICTION WASHER 12.2 x 30 x 0.8£1.91 Add to
010325670011/0ANTI-FRICTION WASHER 8.2 x 19 x 0.8£2.06 Add to
011112155010/0SELF-LOCKING NUT M8 A-LOK ACC.6S£2.47 Add to
012125601554/0PULLEY£26.18 Add to
013112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
014112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0151136-0367-01Tie rod (OBSOLETE)N/A
017112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
021182601503/0MOBILE PULLEY£102.48 Add to
022112139430/0KEY 3/16" x 3/4"£2.06 Add to
023112608950/0CIRCLIP D=0,584TO D=0,569£2.06 Add to
0241136-0051-01Transaxle (OBSOLETE)N/A
025112793900/0HEX-HEAD SCREW M8 x 60£2.06 Add to
027112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0281136-0420-01Stay (OBSOLETE)N/A
0291136-0017-01Screw (OBSOLETE)N/A
030112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
031112793301/0HEX-HEAD SCREW M8 x 25£2.06 Add to
034112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
052184044001/0REAR WHEEL RIM£75.25 Add to
053125590020/0TYRE 15 X 6.00-6 WANDA£65.62 Add to
0531136-0412-01Tire (Deli) (OBSOLETE)N/A
054112521410/0WASHER M20 21 x 37 x 3£1.91 Add to
055125670005/2SPINDLE WASHER£3.89 Add to
056112001000/0CIRCLIP ID=15 TH=1.5£1.83 Add to
057112520010/0WASHER£2.18 Add to
058122110230/0HUB COVER£2.06 Add to
0591136-0359-01Valve (OBSOLETE)N/A
