Grasscatcher (1)

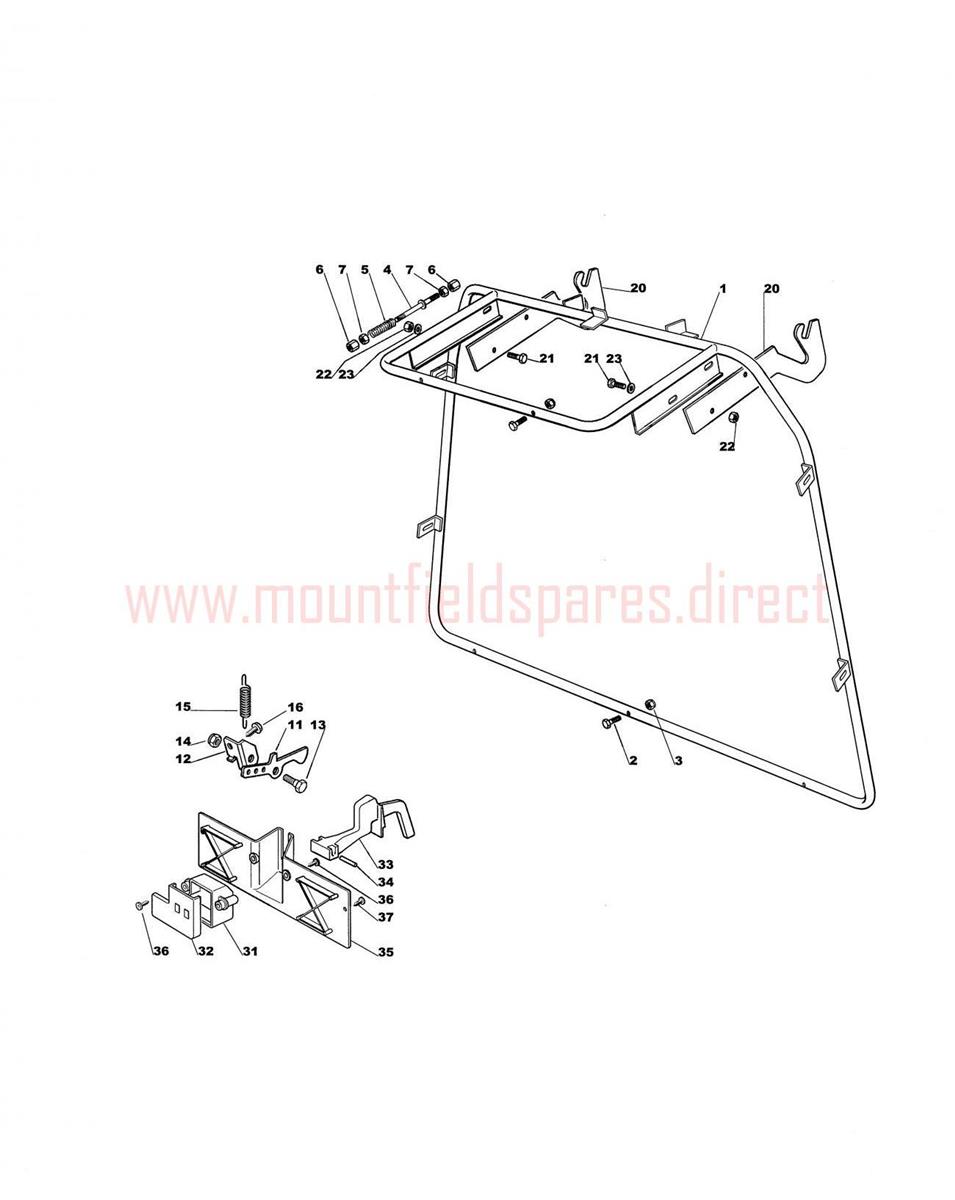

Grasscatcher (1) assembly details for Mountfield 1236M-1436M-1436H (20100406) 2005 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001382800017/1GRASSCATCHER FRAME£143.37 Add to
002112791500/0SCREW TE M6x25 UNI 5739 ACC.8.8£2.06 Add to
003112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
0041136-0445-01Push rod (OBSOLETE)N/A
0051136-0216-01Spring (OBSOLETE)N/A
0061136-0236-01Push nut (OBSOLETE)N/A
007112292100/0HEXAGON NUT M6£1.47 Add to
0111136-1476-01Bracket (OBSOLETE)N/A
012325755031/1CLAMP BRACKET (OBSOLETE) (OBSOLETE)N/A
0131136-1470-01Pin (OBSOLETE)N/A
014112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
015125430220/0SPRING£4.52 Add to
016112735122/0HEX-HEAD SELF-TAP SCREW 6.3 x 16£2.06 Add to
0201136-0334-01Support (OBSOLETE)N/A
021112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
022112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
023112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
031125600041/0MICRO PROTECTION COVER£2.32 Add to
032125600042/0MICRO PROTECTION COVER£3.41 Add to
033125318124/0MICRO CONTROL LEVER£2.32 Add to
034112400030/0PIN D=3 L=30£1.91 Add to
0351136-0326-01Bracket (OBSOLETE)N/A
0369847-8013-16Screw (OBSOLETE)N/A
037112735110/0FLANGED SELF-TAP SCREW 4.8 X 13£2.81 Add to
