Grasscatcher (2)

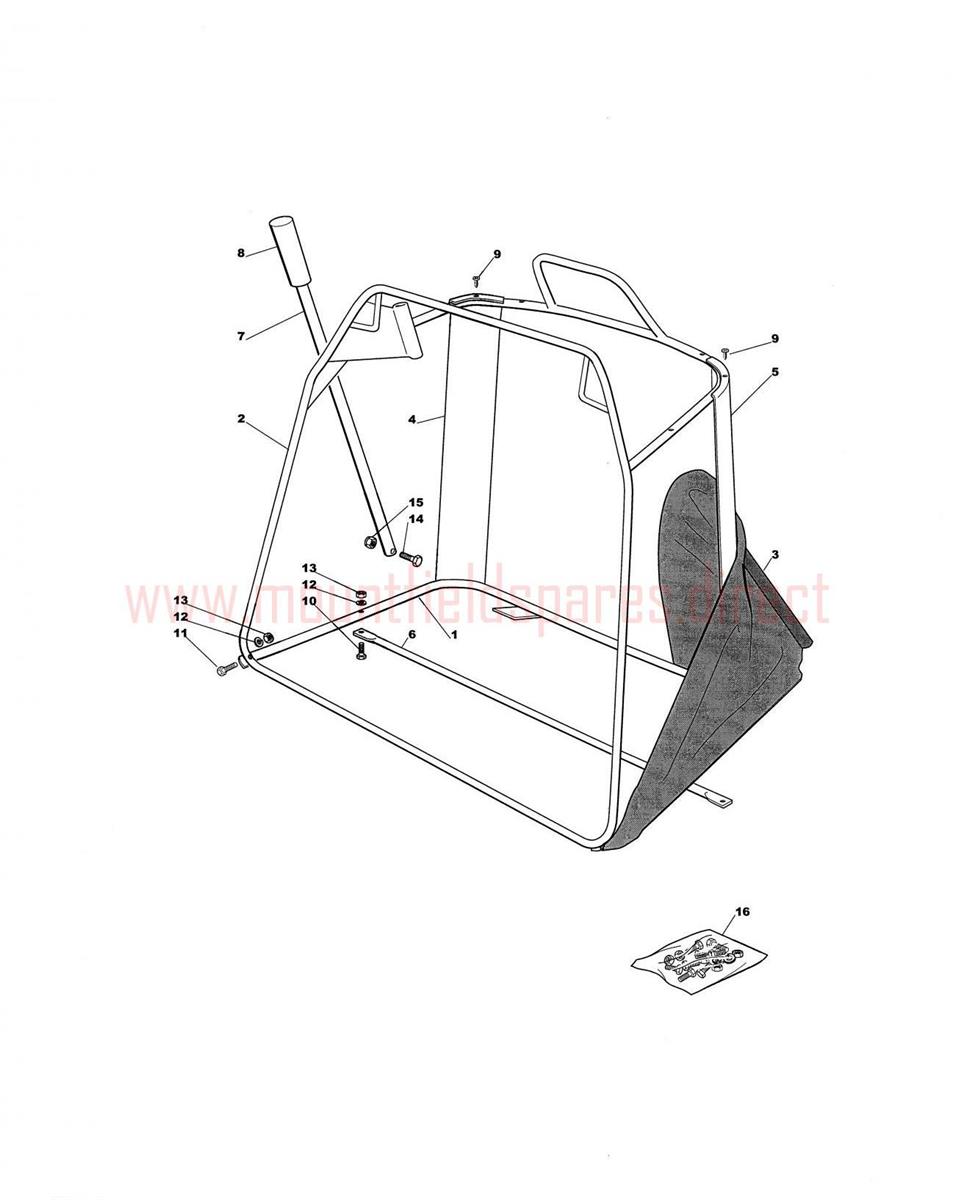

Grasscatcher (2) assembly details for Mountfield 1236M-1436M-1436H (20100406) 2005 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011136-0546-01Frame-lower (OBSOLETE)N/A
002382800014/1GRASSCATCHER UPPER FRAME£163.80 Add to
003182105998/0GRASSCATCHER BAG 92cm£87.85 Add to
0041136-0104-01Angle support-RH (OBSOLETE)N/A
0051136-0103-01Angle support-LH (OBSOLETE)N/A
007125869029/1TIPPING LEVER£28.43 Add to
008125394508/0KNOB£4.52 Add to
009112729601/1SELF-TAP SCREW TE FL 5.5 x 16£2.06 Add to
010112792099/0HEX HEAD SCREW M6 x 30£1.79 Add to
012112581200/0WASHER M4 4.1 x 7.1 x 0.9£2.06 Add to
013112292100/0HEXAGON NUT M6£1.47 Add to
015112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
0161136-0598-01Screw set (OBSOLETE)N/A
