Transmission (2)

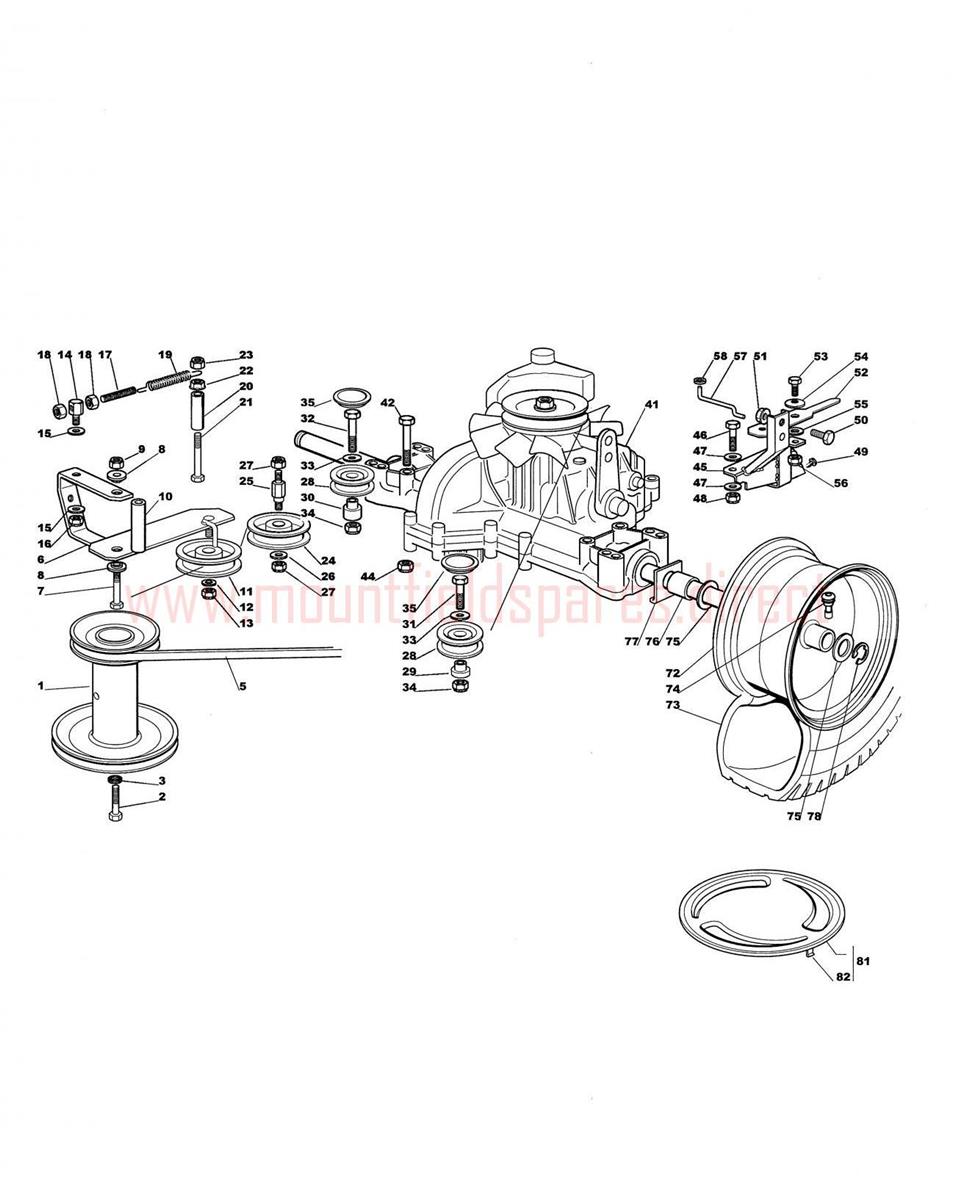

Transmission (2) assembly details for Mountfield 1236M-1436M-1436H (20100406) 2005 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
00125601548/1MOTOR PULLEY 2007£124.27 Add to
002112737310/0HEX-HEAD SCREW 7/16" x 2" 20 UNF£1.90 Add to
003120001173/0SPRING£4.01 Add to
005135061980/0TRANSMISSION BELT A94£42.21 Add to
0061136-0489-01Tension arm (OBSOLETE)N/A
007112792099/0HEX HEAD SCREW M6 x 30£1.79 Add to
008125038002/1BUSH£2.06 Add to
009112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0101136-0166-01Spacer (OBSOLETE)N/A
011125601554/0PULLEY£26.18 Add to
012112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
015325670011/0ANTI-FRICTION WASHER 8.2 x 19 x 0.8£2.06 Add to
017125840005/0TIE ROD£2.87 Add to
018112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
019125430219/1SPRING£3.96 Add to
0201136-0162-01Spacer (OBSOLETE)N/A
021112692050/0HEX-HEAD SCREW£1.91 Add to
022112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
024125601555/0PULLEY£30.26 Add to
0251136-0234-01Stud bolt (OBSOLETE)N/A
028325601570/1BELT PULLEY£24.95 Add to
0291136-0174-01Spacer-LH (OBSOLETE)N/A
030125160024/2PULLEY SPACER£8.21 Add to
0319997-0840-16SCREW M6S M8 x 40£2.06 Add to
0329997-0850-16SCREW M6S M8 x 50£4.52 Add to
035125109521/1COVER£2.06 Add to
041118400960/0HYDRO TRANSAXLE K46S£1,492.43 Add to
042112793900/0HEX-HEAD SCREW M8 x 60£2.06 Add to
0451136-0543-01Support (OBSOLETE)N/A
046112691200/0HEX-HEAD SCREW M8 x 45£2.06 Add to
047112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
0499847-8216-16SCREW (OBSOLETE)N/A
050112792610/0HEX-HEAD SCREW M8 x 16£2.02 Add to
052325318157/0LEVER£5.73 Add to
053112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
054112369500/0SPRING WASHER D=8£1.79 Add to
057125033033/1ROD£2.47 Add to
058112604896/0STARLOCK WASHER D=6£2.06 Add to
072182000592/0REAR WHEEL RIM£103.58 Add to
0731136-0270-01Tire (Turf Saver) (OBSOLETE)N/A
073382680067/0WHEEL ASSEMBLY 18" [CARLISLE 4T]£102.06 Add to
074125950000/0PNEUMATIC VALVE£5.73 Add to
075112521410/0WASHER M20 21 x 37 x 3£1.91 Add to
076125160031/0WHEEL SPACER£3.69 Add to
077325670025/0SPACER WASHER TT£4.27 Add to
078112001000/0CIRCLIP ID=15 TH=1.5£1.83 Add to
081382110253/0REAR HUB CAP£11.27 Add to
0821136-1137-01Spring (OBSOLETE)N/A
