Body Work

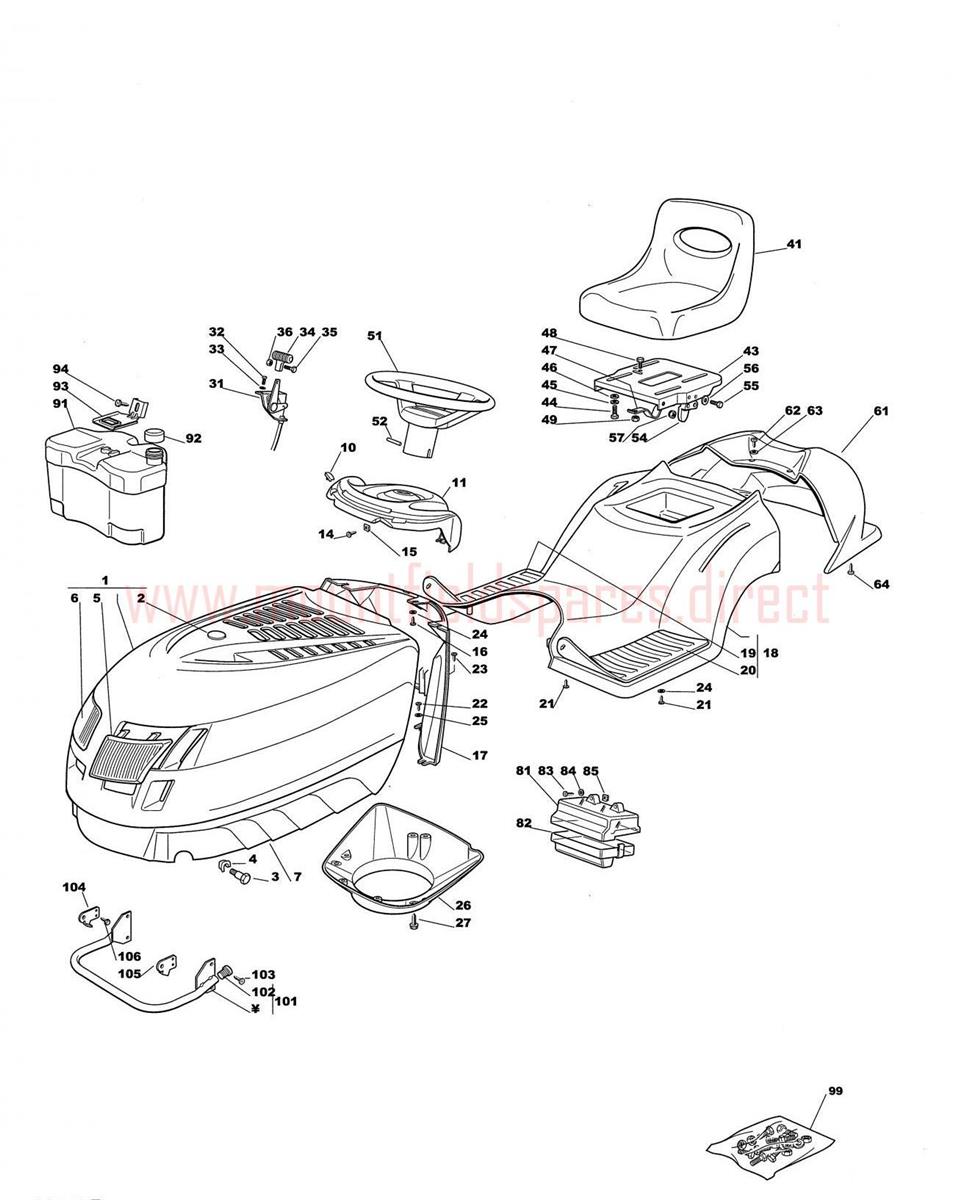

Body Work assembly details for Mountfield 1438M SD (20100406) 2005 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	382076841/3	ENGINE HOOD [RED] FROM 01/09/2004	£102.06	Add to
002	25547025/0	RED INJECTION PLATE TCP 2003	£7.15	Add to
003	125510023/1	PIN	£3.69	Add to
004	112436050/0	PIN PLATE D=8 (EUROFIX FX70308PH)	£1.83	Add to
005	125410861/0	LEFT HEADLIGHT	£10.42	Add to
006	125410860/0	RIGHT HEADLIGHT	£10.42	Add to
007	125076808/0	LOWER ENGINE HOOD	£45.64	Add to
010	125260000/0	ANTI-VIBRATION RUBBER GROMMET	£3.41	Add to
011	1136-0871-01	Dashboard (OBSOLETE)	N/A
014	112735110/0	FLANGED SELF-TAP SCREW 4.8 X 13	£2.81	Add to
015	112437502/0	PLATE	£2.06	Add to
016	112735402/0	FLANGED HEX-HEAD SCREW D=6 x 18 WZ	£2.06	Add to
017	1136-0926-01	Support (OBSOLETE)	N/A
018	382110001/3	WHEELS COVER [RED]	£220.85	Add to
019	1136-0148-01	Footboard cover-RH (OBSOLETE) (OBSOLETE)	N/A
020	1136-0147-01	Footboard cover-LH (OBSOLETE) (OBSOLETE)	N/A
021	112735410/0	FLANGED HEX-HEAD SCREW D=6 x 35	£2.06	Add to
023	112728690/0	SELF-TAP SCREW KA50 x 25	£0.79	Add to
024	112523040/0	WASHER M6 6.6 x 18 x 1.6	£2.06	Add to
025	112523050/0	WASHER M6 6.6 x 24 x 2	£2.06	Add to
026	1136-1783-01	Conveyor (OBSOLETE)	N/A
027	9838-9516-12	SCREW K50 x 16	£2.47	Add to
031	182000207/0	THROTTLE CABLE	£34.35	Add to
032	112788512/0	SCREW M4 x 12	£2.06	Add to
033	112581200/0	WASHER M4 4.1 x 7.1 x 0.9	£2.06	Add to
034	125394501/0	THROTTLE HANDLE [BLACK]	£2.06	Add to
035	112726388/0	CROSS-HEAD SCREW M4X12	£2.06	Add to
036	112290800/0	HEXAGON NUT M4 UNI 5588 ACC.6S	£2.06	Add to
041	125722453/1	SEAT	£187.79	Add to
043	325547033/1	SEAT PLATE	£38.44	Add to
044	112793102/0	SCREW TE M8x20 UNI 5739 ACC.8.8	£2.06	Add to
045	112583500/0	WASHER M8 UNI 1751 WZ	£2.06	Add to
046	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
047	125430223/2	SEAT LIFTING SPRING	£6.55	Add to
048	112789000/0	SCREW TE M5 x 12	£2.06	Add to
049	112154330/0	LOW SELF-LOCKING NUT M5	£2.06	Add to
051	1136-1972-01	Steering wheel Lenkrad (OBSOLETE)	N/A
052	112620299/0	SPIROL FLEXIBLE PIN 6 x 45	£1.91	Add to
054	327063021/1	MICRO SEAT OPERATION CAM	£2.74	Add to
055	112789100/0	HEX-HEAD SCREW M5 x 30	£2.06	Add to
056	112523020/0	WASHER M5 5.5 x 15 x 1.6	£2.06	Add to
061	325110098/1	RED REAR COVER TCJ98	£131.63	Add to
063	112521360/0	WASHER M10 10.5 x 20 x 2	£2.06	Add to
081	125600020/0	UPPER GUARD	£9.62	Add to
082	125600021/1	LOWER GUARD	£10.25	Add to
083	112728460/0	SELF-TAPP.SCREW 4.8X38 UNI 6954	£2.06	Add to
084	9699-0024-02	WASHER 2011	£3.64	Add to
091	125735116/2	FUEL TANK J	£124.29	Add to
092	125795000/1	FUEL TANK CAP	£8.04	Add to
093	1136-0327-01	TANK'S FIXING BRAKET 2007	£7.19	Add to
099	1136-1108-01	Key outfit (OBSOLETE)	N/A
101	1136-0553-01	Muffler protection (OBSOLETE)	N/A
102	118566110/0	HANDLE CAP D=22 [BLACK]	£2.06	Add to
103	9847-8216-16	SCREW (OBSOLETE)	N/A
104	325547089/1	RIGHT PLATE	£4.52	Add to
105	325547091/1	LEFT PLATE	£4.52	Add to
106	112731580/0	SELF-TAP SCREW TE 4.8 x 9.5 C15 BZ	£2.06	Add to
