Chassis

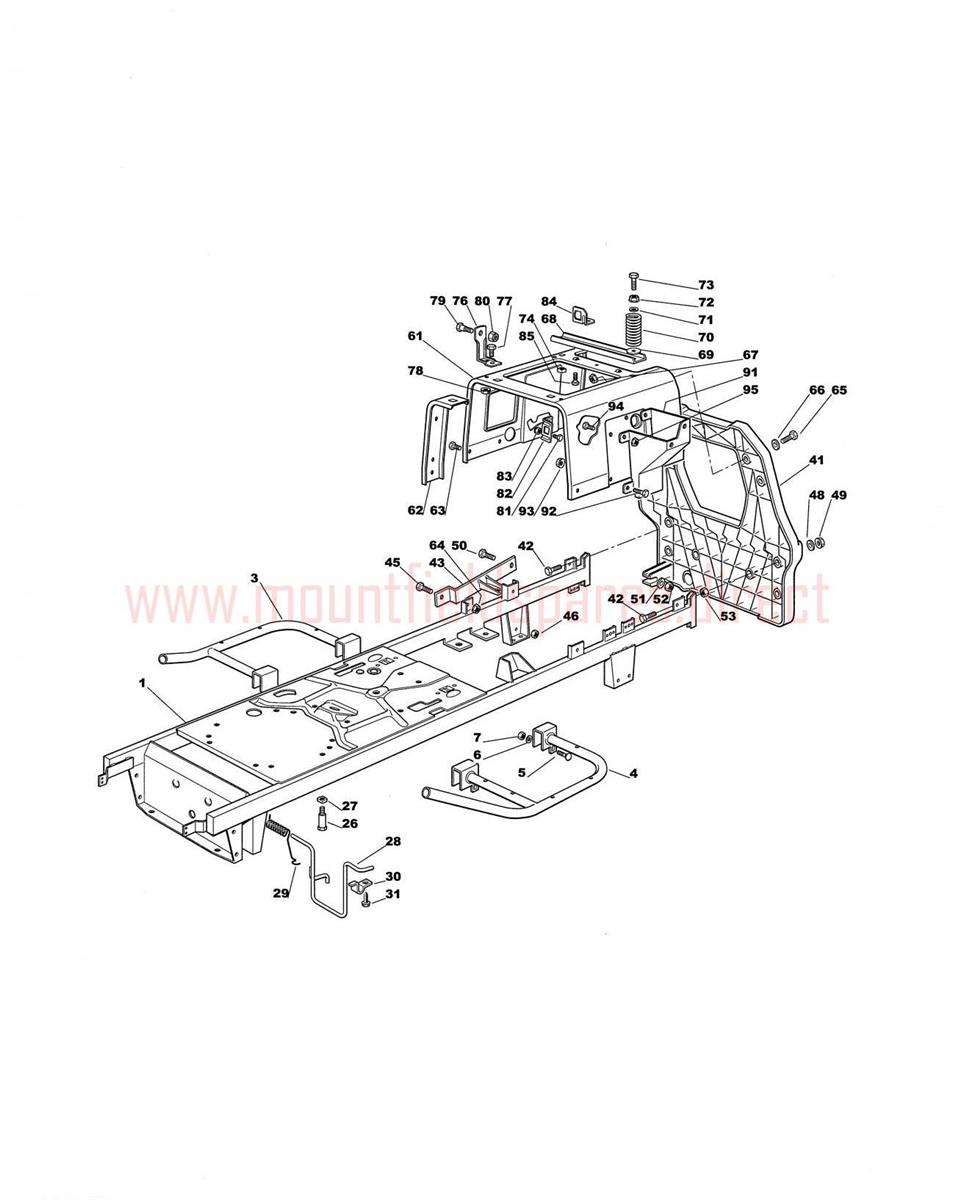

Chassis assembly details for Mountfield 1438M SD (20100406) 2005 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011136-1499-01Frame (OBSOLETE)N/A
0031136-0548-01Footboard support-RH (OBSOLETE)N/A
0041136-0549-01Footboard support-LH (OBSOLETE)N/A
005112815245/0SCREW M6 x 45£2.06 Add to
006112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
007112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
0261136-0907-01Belt guide (OBSOLETE)N/A
027112360425/0SQUARE NUT M8£2.18 Add to
0281136-0881-01Belt guide (OBSOLETE)N/A
0291136-0896-01Spring (OBSOLETE)N/A
0301136-1247-01Plate (OBSOLETE)N/A
0319847-8216-16SCREW (OBSOLETE)N/A
041125547106/0PLASTIC REAR PLATE£82.05 Add to
042112793301/0HEX-HEAD SCREW M8 x 25£2.06 Add to
0431136-1051-01Reinforcement (OBSOLETE)N/A
045112792610/0HEX-HEAD SCREW M8 x 16£2.02 Add to
046112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
048112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
049112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0509997-0840-16SCREW M6S M8 x 40£2.06 Add to
051112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
0611136-0337-01Seat support (OBSOLETE)N/A
06225650055/0FRONT SEAT STIFFENING 2007£8.70 Add to
0639997-0614-16SCREW M6S [M6X35]£5.21 Add to
064112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
0659997-0620-16SCREW M6S M6 x 20£2.06 Add to
06825650056/0REAR SEAT STIFFENING 2007£8.70 Add to
070125430205/1SEAT SHOCK ABSORBER SPRING£6.01 Add to
073125943001/1SCREW£2.06 Add to
0741136-0003-01Square nut (OBSOLETE)N/A
0761136-0321-01Bracket (OBSOLETE)N/A
079122524970/2SEAT FULCRUM PIN FROM S/N 88152£2.18 Add to
080112155010/0SELF-LOCKING NUT M8 A-LOK ACC.6S£2.47 Add to
081112789000/0SCREW TE M5 x 12£2.06 Add to
082382500011/2BRAKE PEDAL£70.68 Add to
083112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
084325755025/2SEAT SWITCH SUPPORT£6.27 Add to
085112731580/0SELF-TAP SCREW TE 4.8 x 9.5 C15 BZ£2.06 Add to
09125785057/0BRACKET 2007£18.81 Add to
