Mower Deck

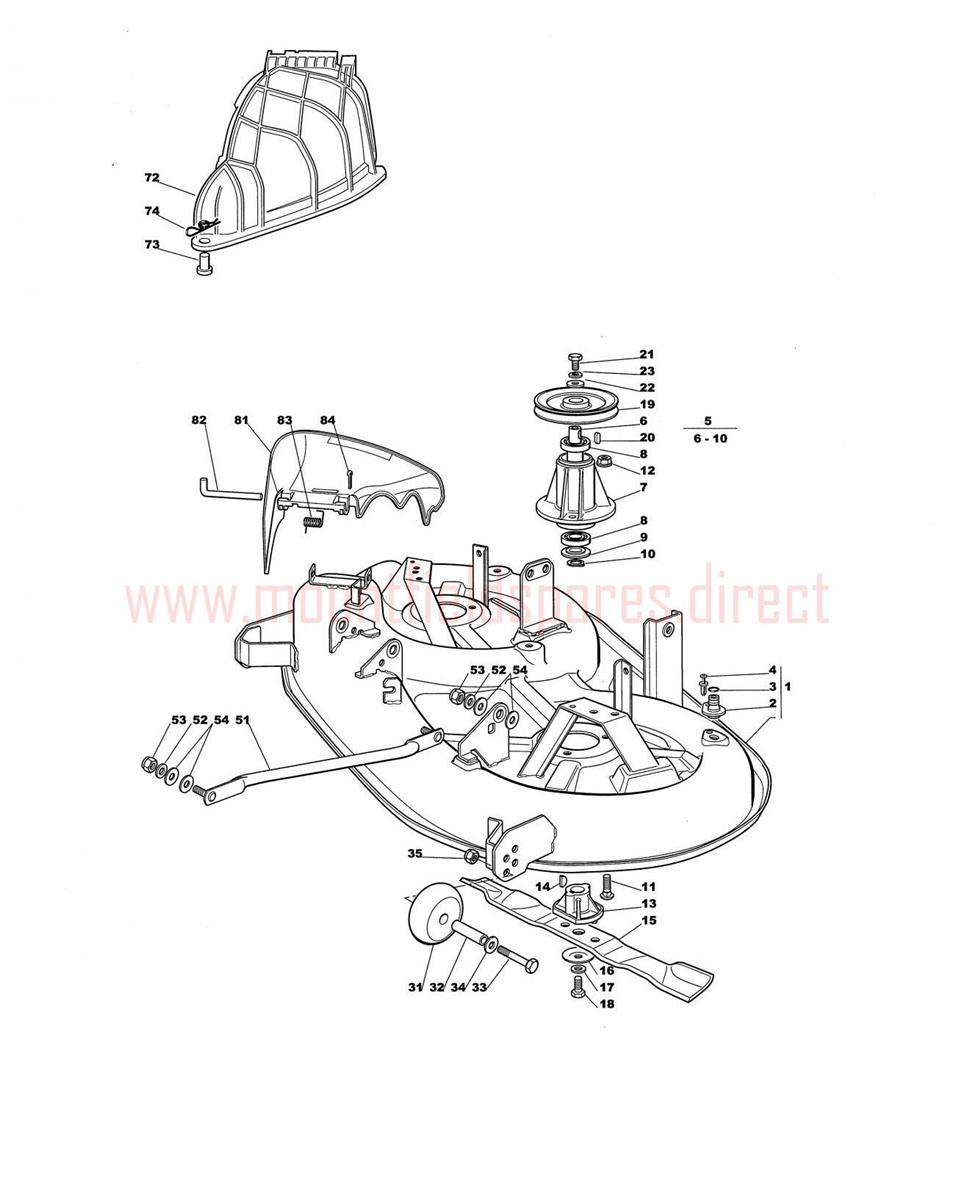

Mower Deck assembly details for Mountfield 1438M SD (20100406) 2005 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001382564041/0CUTTER DECK CASING J98S [BLACK]£417.06 Add to
002125033060/0WASHING CUTTING DECK CONNECTION£2.06 Add to
003119035000/0O RING 10.77 x 2.62£5.46 Add to
004112500030/0PLASTIC RIVET 2494 AA01£2.06 Add to
005382207202/0L/H BLADE SHAFT ASSEMBLY£109.29 Add to
006125020802/0LEFT BLADE SHAFT£38.44 Add to
008119216047/0BEARING 6204-C-2HRS£13.49 Add to
009325160501/1DUST COVER WASHER£2.06 Add to
010112609260/0CIRCLIP D=20£2.02 Add to
011112818700/0SCREW M8 x 25£2.81 Add to
012112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
013125463200/0BLADE BOSS£9.82 Add to
014112139100/0WOODRUFF KEY 4 x 6.5 D=16 UNI6606 C40£2.06 Add to
015182004346/0MULCHING BLADE 98cm£23.45 Add to
016122160400/0SPRING WASHER 50 x 2 x 10.2£2.18 Add to
017112523080/0WASHER M10 11 x 30 x 2.5£2.06 Add to
018112735694/0HEX-HEAD SCREW 3/8" X 1 1/2" 24 UNF£1.97 Add to
019125601571/0BLADE SHAFT PULLEY£32.99 Add to
020112139480/0KEY 6x6x20 UNI6604-A 6.8£2.06 Add to
021112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
022112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
023112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
031182700002/0ANTI-SCALP WHEEL D=80mm£5.19 Add to
032125510072/1WHEEL SPACER£2.18 Add to
033112692050/0HEX-HEAD SCREW£1.91 Add to
034112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
051382000474/1EQUALIZER ROD£30.31 Add to
052112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
053112156602/0LOW SELF-LOCKING NUT M10£1.79 Add to
054325670008/1ANTI-FRICTION WASHER 10.8 x 19 x 0.8£2.06 Add to
072125190092/0MULCHING DEFLECTOR£6.79 Add to
073125510022/1PIN£3.40 Add to
074124487998/0R CLIP D=2£2.06 Add to
0811136-0910-01Discharge protection (OBSOLETE)N/A
082125510073/0FULCRUM PIN£8.04 Add to
083125430242/1SPRING£3.64 Add to
084112141418/0SPLIT PIN 3 x 20£1.76 Add to
