Body Work

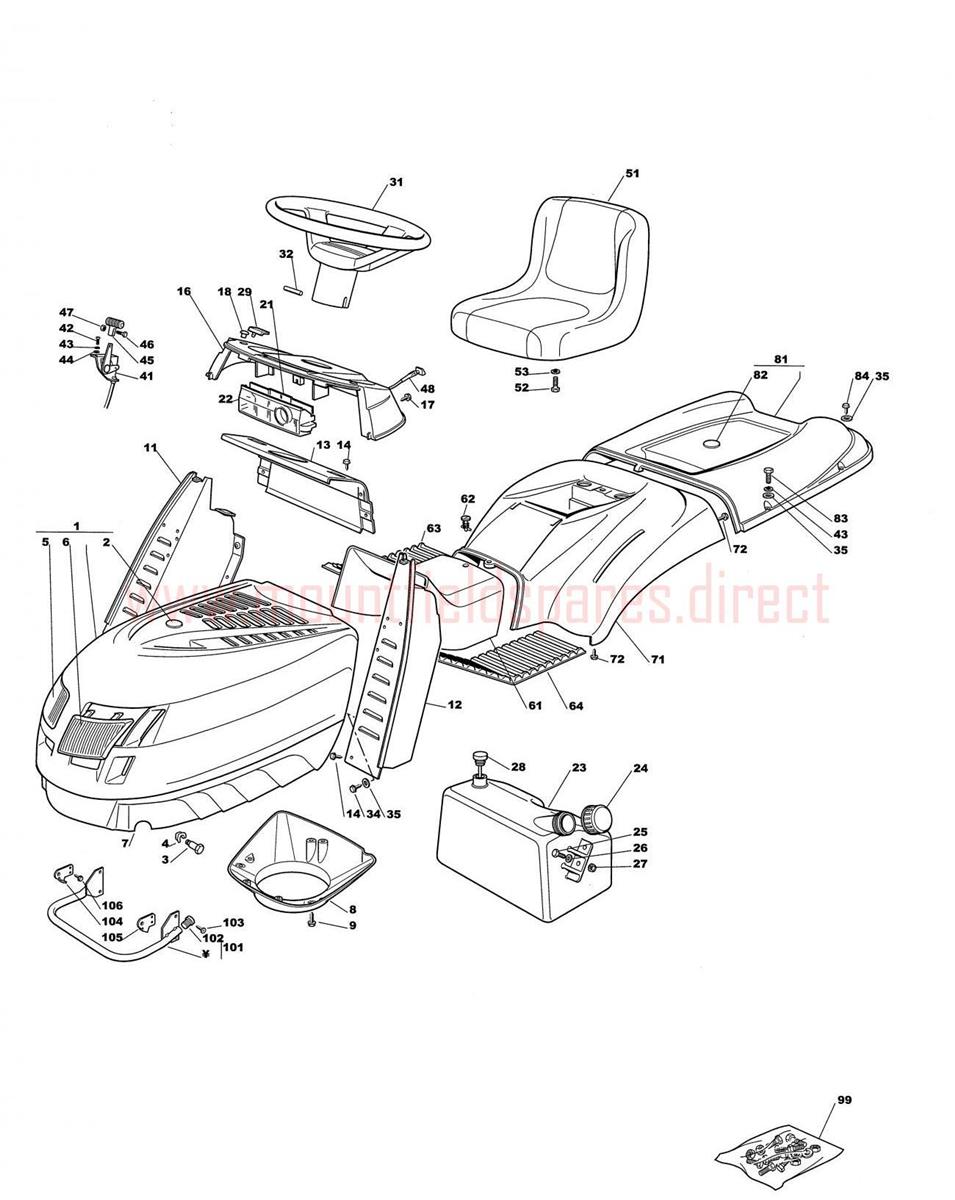

Body Work assembly details for Mountfield 1440M-1440H-2040H-2248H (20100406) 2005 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	382076841/3	ENGINE HOOD [RED] FROM 01/09/2004	£102.06	Add to
002	25547025/0	RED INJECTION PLATE TCP 2003	£7.15	Add to
003	125510023/1	PIN	£3.69	Add to
004	112436050/0	PIN PLATE D=8 (EUROFIX FX70308PH)	£1.83	Add to
005	125410860/0	RIGHT HEADLIGHT	£10.42	Add to
006	125410861/0	LEFT HEADLIGHT	£10.42	Add to
007	125076808/0	LOWER ENGINE HOOD	£45.64	Add to
008	1136-1783-01	Conveyor (OBSOLETE)	N/A
009	9838-9516-12	SCREW K50 x 16	£2.47	Add to
011	1136-0535-01	Dashboard support-RH (OBSOLETE)	N/A
012	1136-0534-01	Dashboard support-LH (OBSOLETE)	N/A
013	382785137/0	CENTRAL DASHBOARD SUPPORT	£16.16	Add to
014	112735110/0	FLANGED SELF-TAP SCREW 4.8 X 13	£2.81	Add to
016	125120171/1	DASHBOARD [BLACK]	£39.80	Add to
016	125120153/1	BLACK DASHBOARD	£39.80	Add to
017	9847-8013-16	Screw (OBSOLETE)	N/A
018	125120200/0	CAP (OBSOLETE)	£2.54	Add to
021	125600009/0	PROTECTIVE COVER	£3.00	Add to
022	125600051/0	PC BOARD PROTECTION COVER	£10.49	Add to
023	125735110/3	FUEL TANK [7 LITRES]	£53.42	Add to
023	325735111/3	FUEL TANK	£54.79	Add to
024	125795000/1	FUEL TANK CAP	£8.04	Add to
025	112788910/0	HEX-HEAD SCREW M5 x 16	£2.06	Add to
026	112523020/0	WASHER M5 5.5 x 15 x 1.6	£2.06	Add to
027	112154330/0	LOW SELF-LOCKING NUT M5	£2.06	Add to
028	125290000/0	FUEL LEVEL INDICATOR	£56.15	Add to
029	125260000/0	ANTI-VIBRATION RUBBER GROMMET	£3.41	Add to
031	1136-1977-01	Steering wheel (OBSOLETE)	N/A
032	112620299/0	SPIROL FLEXIBLE PIN 6 x 45	£1.91	Add to
034	112731350/0	SELF-TAP SCREW TE 5.5 X 19 UNI 6949 C15	£2.06	Add to
035	112521360/0	WASHER M10 10.5 x 20 x 2	£2.06	Add to
041	182000200/1	THROTTLE CABLE	£23.79	Add to
041	1136-1027-01	Throttle control (OBSOLETE)	N/A
042	112788512/0	SCREW M4 x 12	£2.06	Add to
043	112581200/0	WASHER M4 4.1 x 7.1 x 0.9	£2.06	Add to
044	112521310/0	WASHER M4 4.3 x 9 x 0.8	£1.79	Add to
045	125394501/0	THROTTLE HANDLE [BLACK]	£2.06	Add to
046	112726388/0	CROSS-HEAD SCREW M4X12	£2.06	Add to
047	112290800/0	HEXAGON NUT M4 UNI 5588 ACC.6S	£2.06	Add to
048	1136-0867-01	Starter drive (OBSOLETE)	N/A
051	1136-1978-01	Seat (OBSOLETE)	N/A
052	112793102/0	SCREW TE M8x20 UNI 5739 ACC.8.8	£2.06	Add to
053	112583500/0	WASHER M8 UNI 1751 WZ	£2.06	Add to
061	1136-1123-01	Cover-red (OBSOLETE)	N/A
061	325110239/1	CENTRAL COVER [RED] HYDRO	£32.99	Add to
062	1136-0268-01	Pivot (OBSOLETE)	N/A
063	125110270/0	RIGHT FOOTBOARD COVER	£26.93	Add to
064	125110260/2	LEFT FOOTBOARD COVER	£24.95	Add to
071	1136-1229-01	Wheel cover-red (OBSOLETE)	N/A
071	325109701/1	WHEELS COVER [RED] HYDRO	£129.74	Add to
071	325109702/1	WHEELS COVER RED	£131.92	Add to
072	112735402/0	FLANGED HEX-HEAD SCREW D=6 x 18 WZ	£2.06	Add to
081	382110200/1	GRASSCATCHER TOP [RED]	£152.39	Add to
083	112674700/0	SCREW M6 X 35	£2.06	Add to
084	112729601/1	SELF-TAP SCREW TE FL 5.5 x 16	£2.06	Add to
099	1136-0597-01	Key outfit (OBSOLETE)	N/A
101	1136-0553-01	Muffler protection (OBSOLETE)	N/A
102	118566110/0	HANDLE CAP D=22 [BLACK]	£2.06	Add to
103	9847-8216-16	SCREW (OBSOLETE)	N/A
104	325547089/1	RIGHT PLATE	£4.52	Add to
105	325547091/1	LEFT PLATE	£4.52	Add to
106	112731580/0	SELF-TAP SCREW TE 4.8 x 9.5 C15 BZ	£2.06	Add to
