Electrical Equipment

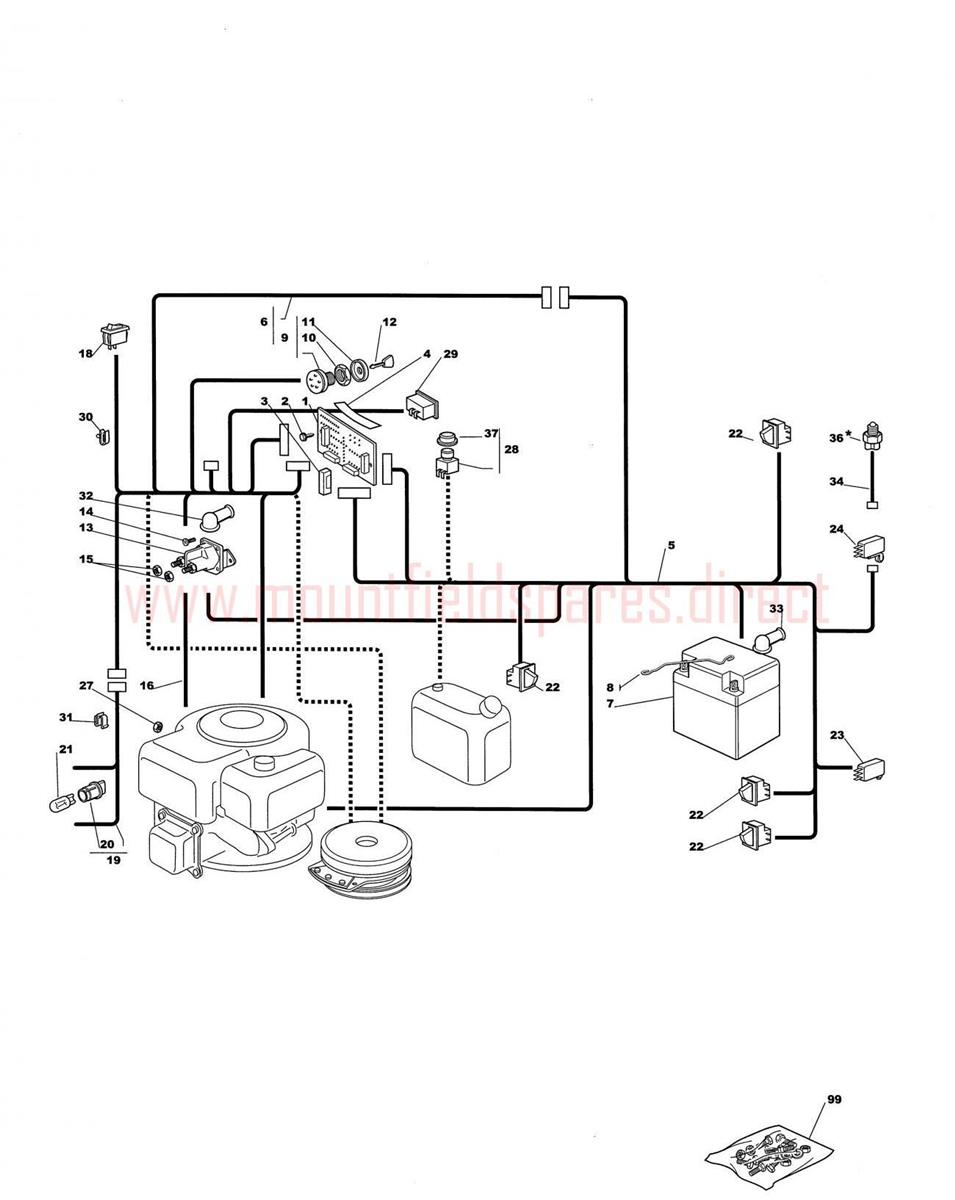

Electrical Equipment assembly details for Mountfield 1440M-1440H-2040H-2248H (20100406) 2005 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001125722413/1PC BOARD [8 LED] NO returns on this item£118.55 Add to
001125722412/1PC BOARD [8 LED][ THIS ITEM CANNOT BE RETURNED ]£109.10 Add to
002112735105/0SELF-TAP SCREW TE 3.5 x 16£2.06 Add to
003133340033/0FUSE 6.3A£5.05 Add to
004125420004/0CHECK CONTROL PANNEL TC£9.68 Add to
004125420005/0CHECK CONTROL PANEL£9.96 Add to
0051136-1283-01Harness (OBSOLETE)N/A
0051136-1805-01Harness (OBSOLETE)N/A
0061136-1804-01Harness (OBSOLETE)N/A
0061136-1979-01Harness (OBSOLETE)N/A
007118120007/0BATTERY 12V 18AH [No Returns on This item]£103.58 Add to
008125430230/0SPRING ROD£3.55 Add to
009118450065/1STARTING SWITCH£32.99 Add to
010118400861/0LOCKING RING£5.32 Add to
011118565351/0LOCKING RING COVER£6.14 Add to
0121134-2848-01IGNITION KEY (2 PCS)£13.77 Add to
013118736113/0SOLENOID£39.22 Add to
014112735110/0FLANGED SELF-TAP SCREW 4.8 X 13£2.81 Add to
0159743-5121-32LOCK NUT 5/16"£1.79 Add to
016125065002/0SOLENOID STARTING CABLE£10.91 Add to
018118450084/0HEADLIGHT SWITCH£4.35 Add to
019182040070/0HEADLIGHTS CABLE£16.46 Add to
021118459100/0HEADLIGHT BULB£2.47 Add to
022119410622/1MICRO SWITCH N.O.£7.10 Add to
023119410605/1MICRO SWITCH£36.77 Add to
024119410609/1LCNEUTRAL KEDU SWITCH [HYDRO]£28.90 Add to
027112361005/0HEXAGON NUT 1/4" UNC£2.71 Add to
028118450067/0CLUTCH SWITCH£21.26 Add to
0299400-0384-01HOUR METER£94.31 Add to
030133320506/0CABLE CLIP£1.79 Add to
0311136-0426-01CABLE CLIP£4.60 Add to
032118564861/1RED RUBBER TERMINAL COVER£7.90 Add to
033118564864/1RED RUBBER TERMINAL COVER£6.01 Add to
034125065026/0CABLE£9.00 Add to
036119410610/0NEUTRAL SWITCH [MECHANICAL]£54.79 Add to
037118203852/0CLUTCH SWITCH CAP£3.15 Add to
0991136-0597-01Key outfit (OBSOLETE)N/A
