Grasscatcher

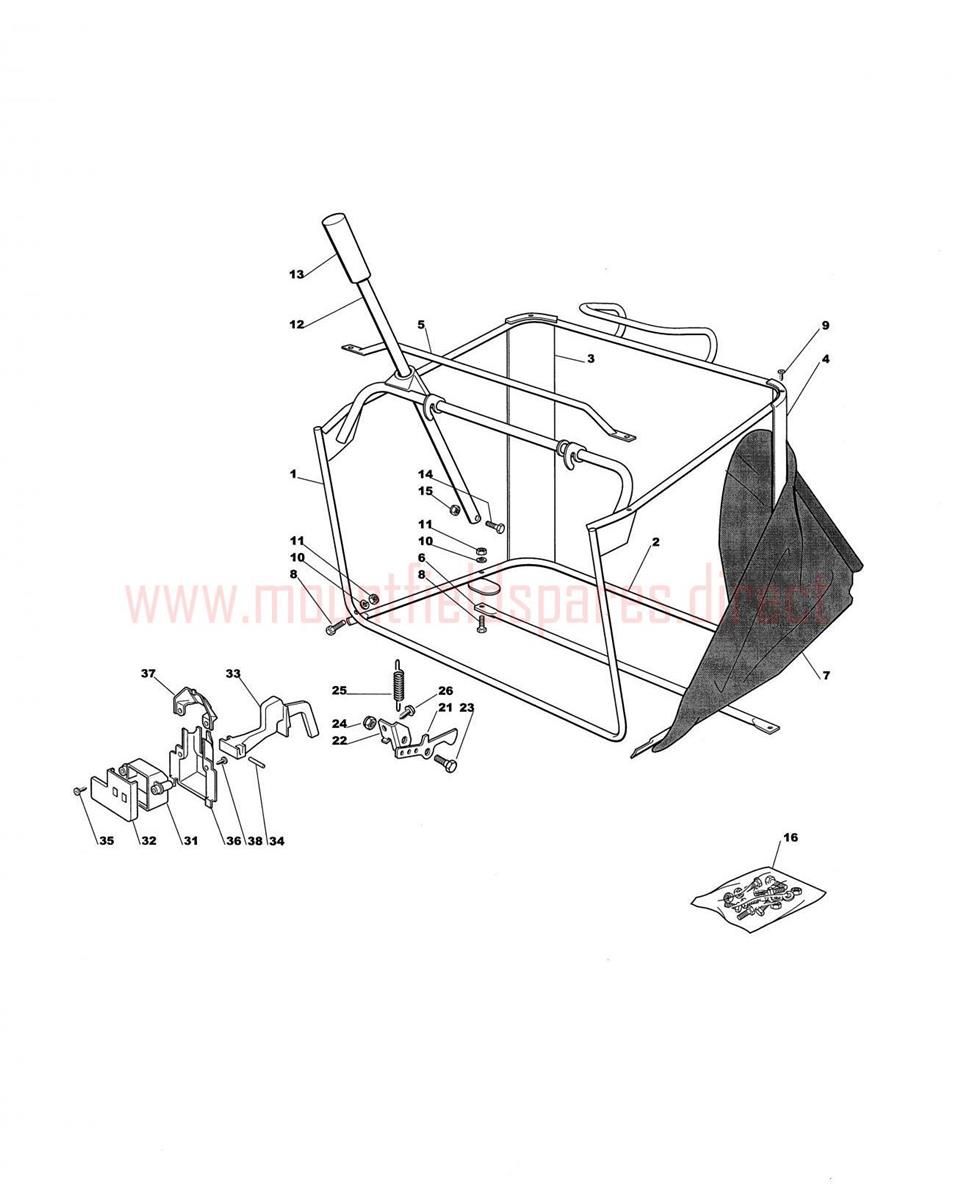

Grasscatcher assembly details for Mountfield 1440M-1440H-2040H-2248H (20100406) 2005 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	382800051/0	UPPER GRASSCATCHER FRAME	£186.22	Add to
002	382800002/2	LOWER GRASSCATCHER FRAME	£34.35	Add to
003	325032001/1	RIGHT ANGULAR SUPPORT	£15.69	Add to
004	325032002/1	LEFT ANGULAR SUPPORT	£15.69	Add to
005	382394001/2	FRONT GRASSCATCHER HANDLE	£13.08	Add to
006	382650038/0	REINFORCEMENT BAR	£12.30	Add to
007	182106000/2	GRASSCATCHER BAG TC 102-122cm	£120.90	Add to
008	112792099/0	HEX HEAD SCREW M6 x 30	£1.79	Add to
009	112729601/1	SELF-TAP SCREW TE FL 5.5 x 16	£2.06	Add to
010	112581200/0	WASHER M4 4.1 x 7.1 x 0.9	£2.06	Add to
011	112292100/0	HEXAGON NUT M6	£1.47	Add to
012	125869029/1	TIPPING LEVER	£28.43	Add to
013	125394508/0	KNOB	£4.52	Add to
015	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
016	382180027/1	GRASSCATCHER SCREW OUTFIT	£12.68	Add to
021	325774315/1	GRASSCATCHER LOWER HOOKING CLAMP	£4.37	Add to
022	325755031/1	CLAMP BRACKET (OBSOLETE) (OBSOLETE)	N/A
023	1136-1470-01	Pin (OBSOLETE)	N/A
024	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
025	125430210/1	BRAKE SPRING	£3.00	Add to
026	112735122/0	HEX-HEAD SELF-TAP SCREW 6.3 x 16	£2.06	Add to
031	125600041/0	MICRO PROTECTION COVER	£2.32	Add to
032	125600042/0	MICRO PROTECTION COVER	£3.41	Add to
033	125318124/0	MICRO CONTROL LEVER	£2.32	Add to
034	112400030/0	PIN D=3 L=30	£1.91	Add to
035	9847-8013-16	Screw (OBSOLETE)	N/A
036	125600047/0	MICRO SWITCH PROTECTION COVER	£2.06	Add to
037	125600048/0	MICRO SWITCH COVER	£2.06	Add to
038	112728450/0	SELF-TAP SCREW 4.8 x 19	£2.81	Add to
