Transmission (2)

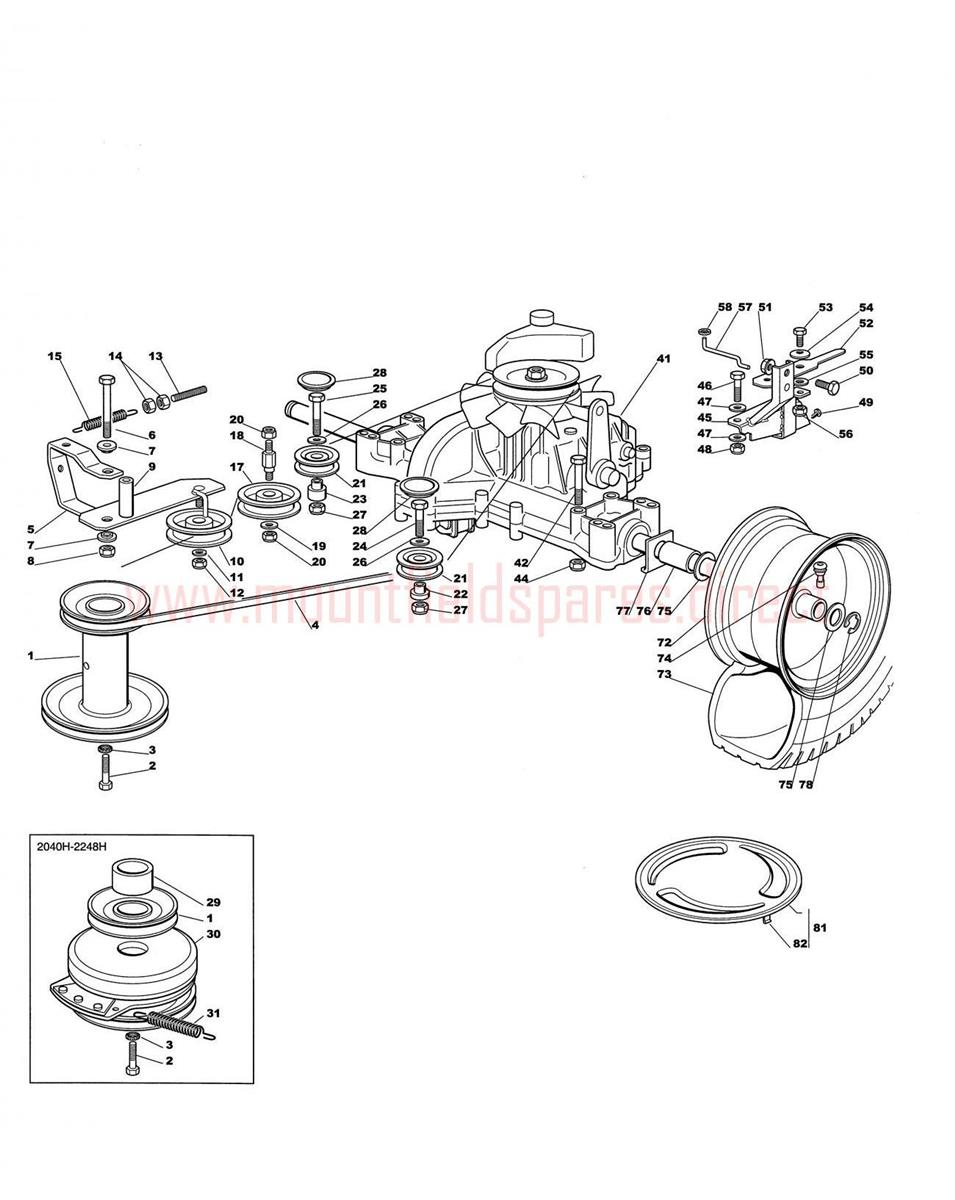

Transmission (2) assembly details for Mountfield 1440M-1440H-2040H-2248H (20100406) 2005 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001125601566/1MOTOR PULLEY£32.99 Add to
001125601568/0MOTOR PULLEY£92.95 Add to
002112737310/0HEX-HEAD SCREW 7/16" x 2" 20 UNF£1.90 Add to
002112737320/0THREADED SCREW 7/16" x 3" 20 UNF£4.78 Add to
003120001173/0SPRING£4.01 Add to
004135062018/0TRANSMISSION BELT A98£38.98 Add to
005382318165/2LEVER£26.62 Add to
006112692000/0SCREW M8 x 75£2.06 Add to
007125038002/1BUSH£2.06 Add to
008112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
009125160027/0SPACER£2.87 Add to
010125601554/0PULLEY£26.18 Add to
011112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
013125840010/1TIE ROD£2.32 Add to
014112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
015125430219/1SPRING£3.96 Add to
017125601555/0PULLEY£30.26 Add to
0181136-0234-01Stud bolt (OBSOLETE)N/A
021325601570/1BELT PULLEY£24.95 Add to
0221136-0174-01Spacer-LH (OBSOLETE)N/A
023125160024/2PULLEY SPACER£8.21 Add to
0249997-0840-16SCREW M6S M8 x 40£2.06 Add to
0259997-0850-16SCREW M6S M8 x 50£4.52 Add to
028125109521/1COVER£2.06 Add to
0291136-0168-01Spacer (OBSOLETE)N/A
030118399062/0ELECTROMAGNETIC CLUTCH (No Returns on this item)£375.02 Add to
031125430210/1BRAKE SPRING£3.00 Add to
041118400950/1HYDRO TRANSAXLE K46F£1,424.29 Add to
042112793900/0HEX-HEAD SCREW M8 x 60£2.06 Add to
044112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
045382785109/1SUPPORT BRACKET£19.22 Add to
046112691200/0HEX-HEAD SCREW M8 x 45£2.06 Add to
047112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
0499847-8216-16SCREW (OBSOLETE)N/A
050112792610/0HEX-HEAD SCREW M8 x 16£2.02 Add to
052325318157/0LEVER£5.73 Add to
053112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
054112369500/0SPRING WASHER D=8£1.79 Add to
055325670011/0ANTI-FRICTION WASHER 8.2 x 19 x 0.8£2.06 Add to
057125033033/1ROD£2.47 Add to
058112604896/0STARLOCK WASHER D=6£2.06 Add to
072182000592/0REAR WHEEL RIM£103.58 Add to
0731136-0270-01Tire (Turf Saver) (OBSOLETE)N/A
073382680067/0WHEEL ASSEMBLY 18" [CARLISLE 4T]£102.06 Add to
074125950000/0PNEUMATIC VALVE£5.73 Add to
075125670005/2SPINDLE WASHER£3.89 Add to
076125160023/0SPACER£7.34 Add to
077325670025/0SPACER WASHER TT£4.27 Add to
078112001000/0CIRCLIP ID=15 TH=1.5£1.83 Add to
081382110253/0REAR HUB CAP£11.27 Add to
0821136-1137-01Spring (OBSOLETE)N/A
