Brake and Gear Shifter Control

Brake and Gear Shifter Control assembly details for Mountfield 625M-725M (20100406) 2005 model

Parts list

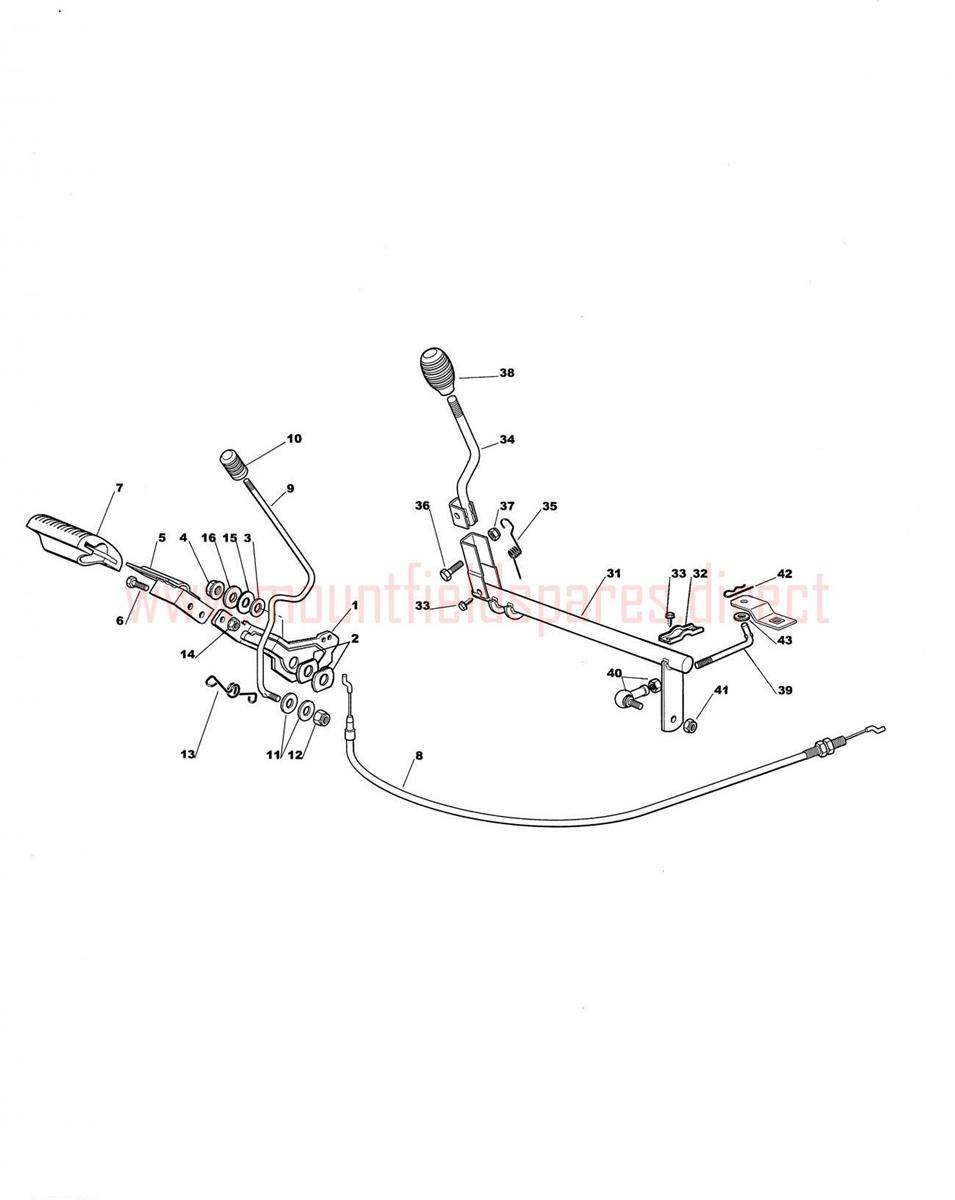

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011136-0968-01Pedal (OBSOLETE)N/A
002327670054/0WASHER£10.09 Add to
003112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
004112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0051136-1089-01Pedal-upper (OBSOLETE)N/A
0069997-0616-16SCREW M6S M6 x 16£4.01 Add to
007125110269/0BRAKE PEDAL COVER£4.10 Add to
008384207105/0BRAKE CONTROL CABLE£20.04 Add to
0091136-0933-01Rod (OBSOLETE)N/A
010127395050/1BLACK BRAKE KNOB RIDER/TCJ£3.40 Add to
011325670011/0ANTI-FRICTION WASHER 8.2 x 19 x 0.8£2.06 Add to
012112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0131136-0959-01Spring (OBSOLETE)N/A
014112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
0151136-1204-01Washer (OBSOLETE)N/A
016112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
0311136-1062-01Gear shift axle (OBSOLETE)N/A
032327546015/2WZ FLAT FULCR.AXLE FIX PLATE£2.06 Add to
0331136-1634-01Screw (OBSOLETE)N/A
0341136-1080-01Gear shift lever (OBSOLETE)N/A
0351136-0963-01Spring (OBSOLETE)N/A
036112674700/0SCREW M6 X 35£2.06 Add to
037112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
038125394510/0CONTROL KNOB [BLACK]£4.35 Add to
0391136-0932-01Rod (OBSOLETE)N/A
040122746610/0ANGULAR JOINT NS13 M8£17.86 Add to
042124487997/0SPRING CLIP D=1.8£2.06 Add to
