Chassis

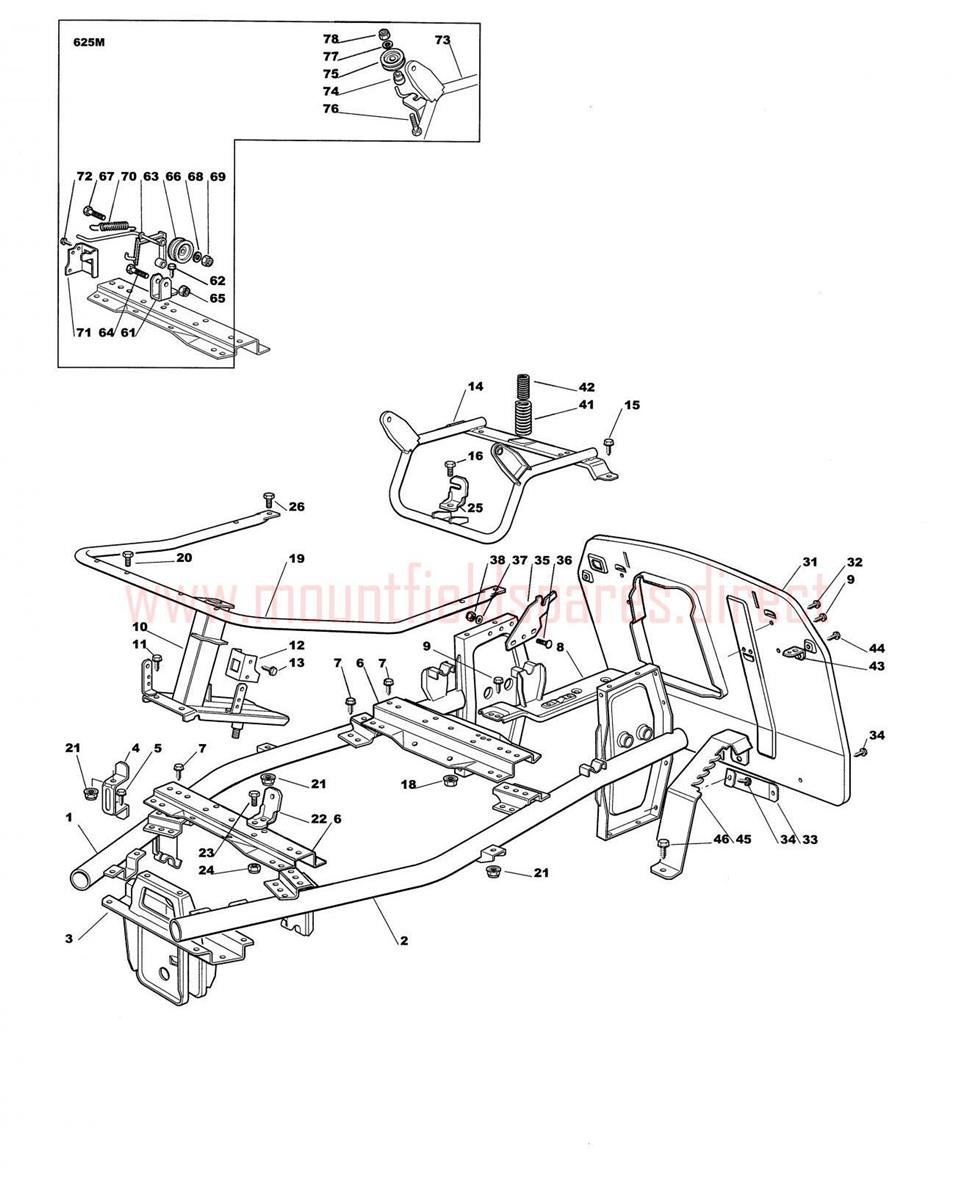

Chassis assembly details for Mountfield 625M-725M (20100406) 2005 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011136-1085-01Side frame-RH (OBSOLETE)N/A
0021136-1086-01Side frame-LH (OBSOLETE)N/A
0031136-1100-01Support (OBSOLETE)N/A
0041136-1005-01Clamp (OBSOLETE)N/A
005112735122/0HEX-HEAD SELF-TAP SCREW 6.3 x 16£2.06 Add to
0061136-0988-01Reinforcement (OBSOLETE)N/A
0081136-1094-01Reinforcement (OBSOLETE)N/A
0101136-1101-01Support (OBSOLETE)N/A
012327772095/0SUPPORT BRACKET£2.06 Add to
013112735105/0SELF-TAP SCREW TE 3.5 x 16£2.06 Add to
014384801117/1SEAT SUPPORT FRAME£50.18 Add to
016112793701/0HEX-HEAD SCREW M8 x 30£1.76 Add to
018112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0191136-1018-01Support (OBSOLETE)N/A
020112792099/0HEX HEAD SCREW M6 x 30£1.79 Add to
021112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
0221136-1010-01Angle bracket (OBSOLETE)N/A
0239997-0616-16SCREW M6S M6 x 16£4.01 Add to
0251136-1206-01Angle bracket (OBSOLETE)N/A
026112791500/0SCREW TE M6x25 UNI 5739 ACC.8.8£2.06 Add to
0311136-1090-01Plate-rear (OBSOLETE)N/A
0331136-0987-01Reinforcement (OBSOLETE)N/A
0351136-1007-01Clamp (OBSOLETE)N/A
0369897-0820-16SCREW M8 x 20£2.32 Add to
037112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
038112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0411136-0960-01Spring (OBSOLETE)N/A
0421136-0962-01Spring (OBSOLETE)N/A
0431136-0999-01Angle bracket (OBSOLETE)N/A
0441136-1634-01Screw (OBSOLETE)N/A
0451136-0997-01Rack (OBSOLETE)N/A
0611136-1274-01Angle bracket (OBSOLETE)N/A
063384783023/0FRONT WHEEL SUPPORT£66.22 Add to
0649997-0840-16SCREW M6S M8 x 40£2.06 Add to
0661136-1279-01Wheel (OBSOLETE)N/A
067112691200/0HEX-HEAD SCREW M8 x 45£2.06 Add to
068112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
0701136-0203-01Spring (OBSOLETE)N/A
0729847-7809-16SCREW ST 3.5X9.5£5.21 Add to
0731136-1277-01Support (OBSOLETE)N/A
0741136-1224-01Spacer (OBSOLETE)N/A
