Electrical Equipment (2)

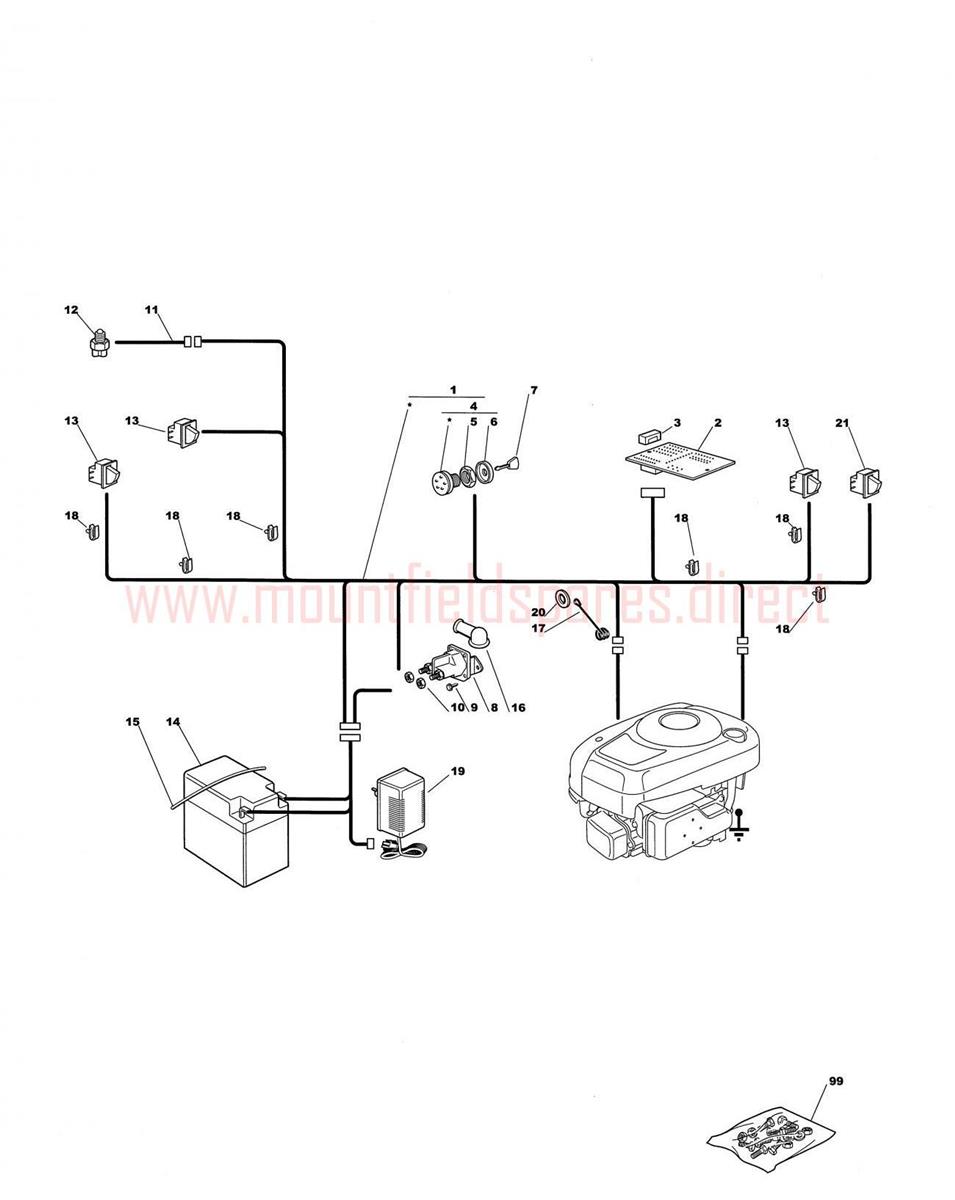

Electrical Equipment (2) assembly details for Mountfield 625M-725M (20100406) 2005 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011136-1639-01Harness (OBSOLETE)N/A
002127722354/2PC BOARD No returns on this item£101.13 Add to
003133340033/0FUSE 6.3A£5.05 Add to
004118450065/1STARTING SWITCH£32.99 Add to
005118400861/0LOCKING RING£5.32 Add to
006118565351/0LOCKING RING COVER£6.14 Add to
0071134-2848-01IGNITION KEY (2 PCS)£13.77 Add to
008118736112/0SOLENOID£39.80 Add to
009112735110/0FLANGED SELF-TAP SCREW 4.8 X 13£2.81 Add to
0109743-5121-32LOCK NUT 5/16"£1.79 Add to
011127065060/0NEUTRAL SWITCH/HARNESS CONNECT£13.49 Add to
012119700046/0MICRO NEUTRAL SWITCH£64.32 Add to
013119410622/1MICRO SWITCH N.O.£7.10 Add to
014118120004/0BATTERY 12V 7.2AH [No Returns on This Item]£97.50 Add to
015127430572/0BATTERY FIXING ROD£1.91 Add to
016118564861/1RED RUBBER TERMINAL COVER£7.90 Add to
017125430239/1SPRING£2.32 Add to
018133320506/0CABLE CLIP£1.79 Add to
019182180190/1BATTERY CHARGER£61.20 Add to
020112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
021119410614/0MICRO SWITCH N.C.£6.55 Add to
0991136-1109-01Screw set (OBSOLETE)N/A
