Grasscatcher

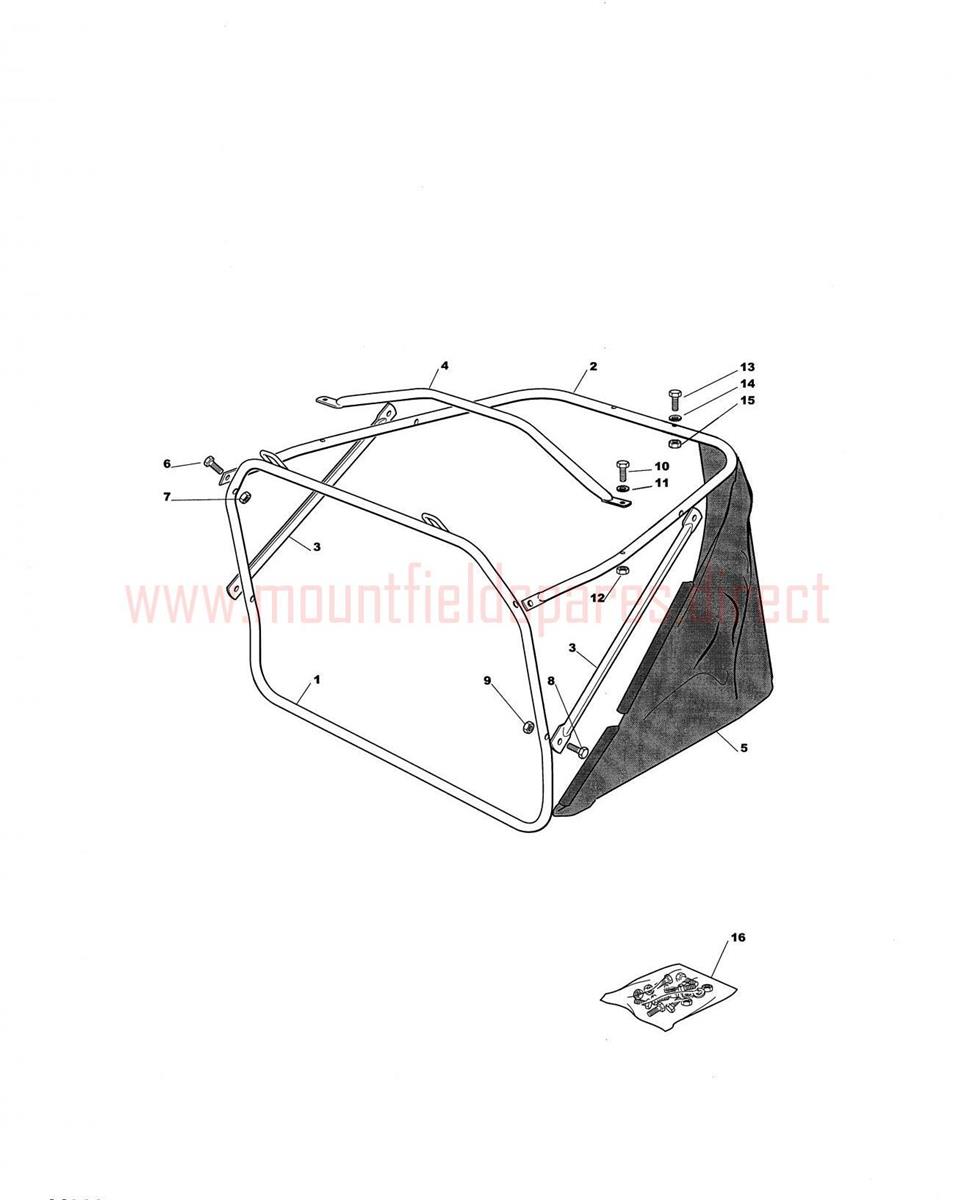

Grasscatcher assembly details for Mountfield 625M-725M (20100406) 2005 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001384801121/0FRONT GRASSCATCHER FRAME£49.29 Add to
002384801119/0UPPER GRASSCATCHER FRAME£30.48 Add to
0031136-0989-01Reinforcement (OBSOLETE)N/A
004384394051/0FRONT HANDLE EL63£14.58 Add to
0051136-1067-01Grass bag (OBSOLETE)N/A
006112789020/0HEX-HEAD SCREW M5 x 25£2.06 Add to
007112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
010112789210/0SCREW M5 x 35£2.06 Add to
011112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
0131136-0811-01Screw (OBSOLETE)N/A
0161136-1071-01Screw set (OBSOLETE)N/A
