Mower Deck

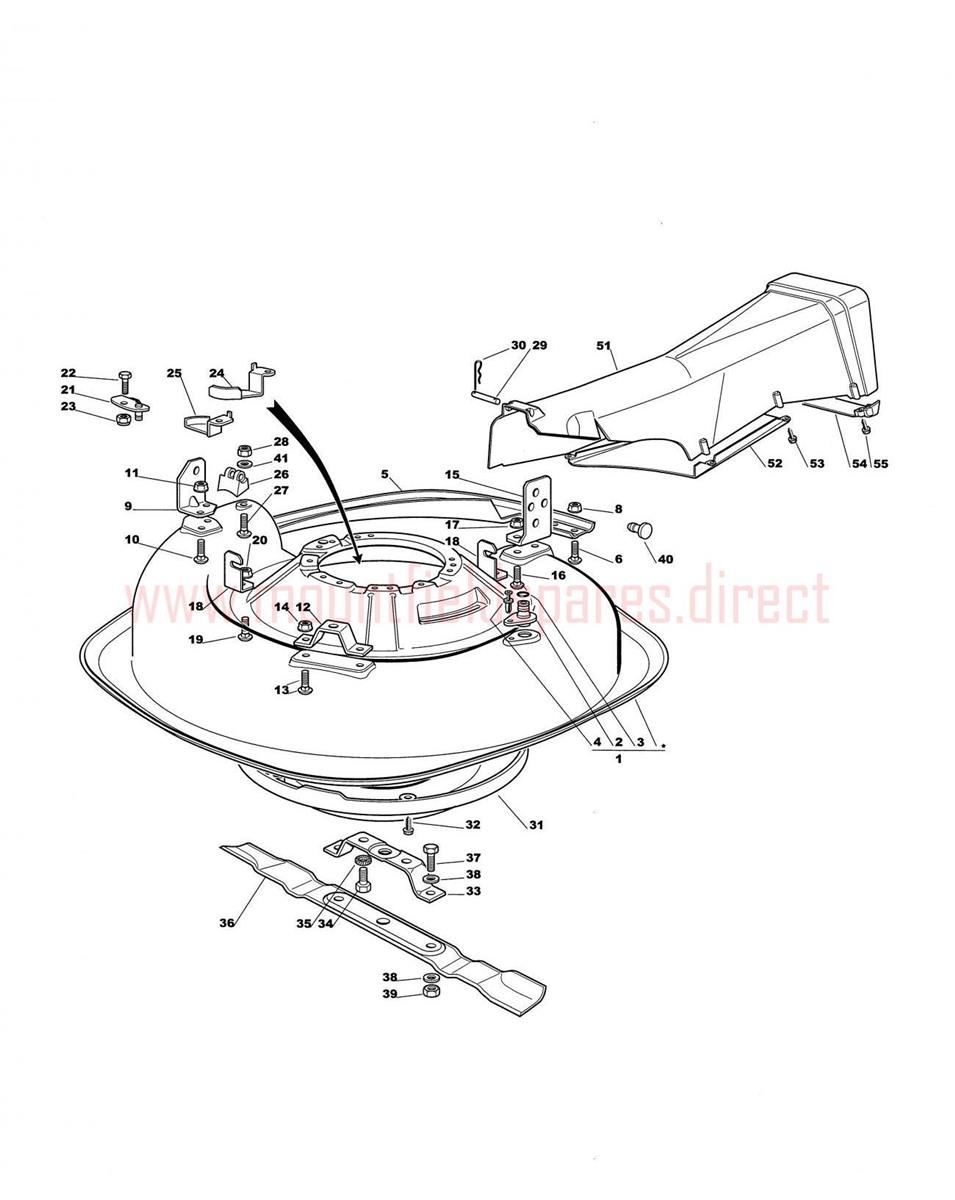

Mower Deck assembly details for Mountfield 625M-725M (20100406) 2005 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001384564095/1CUTTING DECK CASING 63cm [BLACK]£300.07 Add to
002125033060/0WASHING CUTTING DECK CONNECTION£2.06 Add to
003119035000/0O RING 10.77 x 2.62£5.46 Add to
004112500030/0PLASTIC RIVET 2494 AA01£2.06 Add to
005384650103/0REINFORCEMENT DECK PLATE£19.90 Add to
006112815200/0SCREW TTDQ M6X16£2.06 Add to
008112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
009327772119/0RIGHT FRONT DECK CLAMP (OBSOLETE) (OBSOLETE)N/A
0109897-0820-16SCREW M8 x 20£2.32 Add to
011112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0121136-1008-01Clamp (OBSOLETE)N/A
0151136-1006-01Clamp (OBSOLETE)N/A
018327753071/0CLUTCH AND GUIDE PULLEY WIRE S£7.12 Add to
0211136-1091-01Plate (OBSOLETE)N/A
022112792610/0HEX-HEAD SCREW M8 x 16£2.02 Add to
023112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0241136-0974-01Plate (OBSOLETE)N/A
0251136-0975-01Plate (OBSOLETE)N/A
0261136-0951-01Hook (OBSOLETE)N/A
027112815210/0SCREW M6 x 20£2.06 Add to
028112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
029127510097/1FIXING PIN£2.74 Add to
030124487997/0SPRING CLIP D=1.8£2.06 Add to
031327600122/0PLASTIC CLUTCH GUARD (OBSOLETE) (OBSOLETE) (OBSOLETE) (OBSOLETE)N/A
032112728903/0SCREW£1.69 Add to
033327787045/1BLADE BRACKET£4.52 Add to
034112794110/1SCREW TE M10 x 1.5 L=20£2.18 Add to
035112540070/0EXTERNAL TOOTHED WASHER M10£2.06 Add to
036184109504/0MULCHING BLADE 63cm/25"£38.44 Add to
036184109501/0WINGED BLADE 63cm/25"£45.26 Add to
037112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
038112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
039112155010/0SELF-LOCKING NUT M8 A-LOK ACC.6S£2.47 Add to
040127275000/0RUBBER GROMMET FOR BRAKE PEDAL£3.55 Add to
041112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
051127107502/0REAR DISCHARGE CHUTE£42.53 Add to
052327140056/0DEFLECTOR CHUTE£12.00 Add to
053112735402/0FLANGED HEX-HEAD SCREW D=6 x 18 WZ£2.06 Add to
054127650120/0SUPPORT PLATE (OBSOLETE) (OBSOLETE)N/A
055112735410/0FLANGED HEX-HEAD SCREW D=6 x 35£2.06 Add to
