Mower Deck Lift

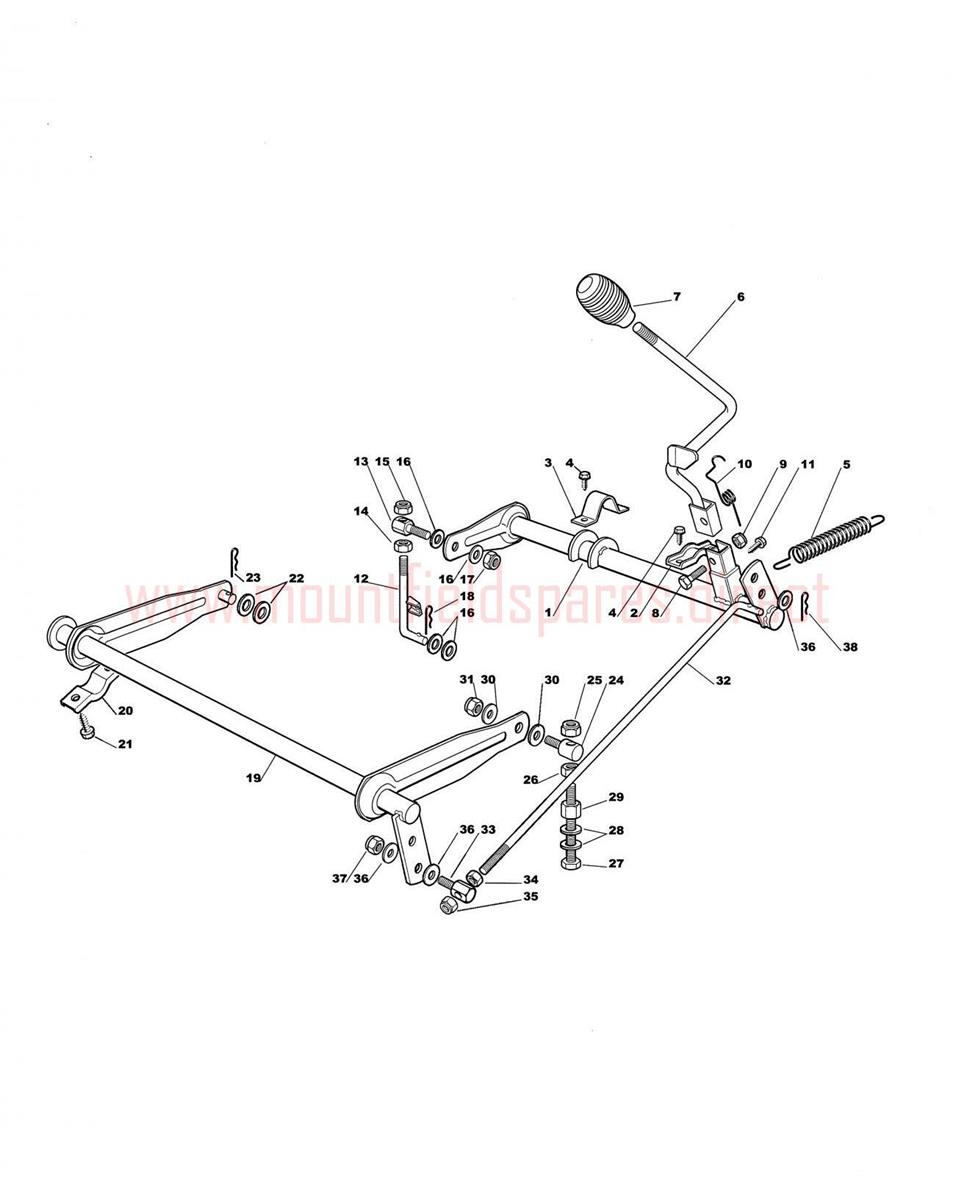

Mower Deck Lift assembly details for Mountfield 625M-725M (20100406) 2005 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011136-1060-01Lift axle (OBSOLETE)N/A
002327546015/2WZ FLAT FULCR.AXLE FIX PLATE£2.06 Add to
003325547037/2FIXING CLAMP£3.69 Add to
0041136-1634-01Screw (OBSOLETE)N/A
005127430568/0LIFTING DECK SPRING£5.12 Add to
006384317075/0DECK LIFTING LEVER ASS.Y£21.67 Add to
007125394510/0CONTROL KNOB [BLACK]£4.35 Add to
008112674700/0SCREW M6 X 35£2.06 Add to
009112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
0101136-0966-01Spring (OBSOLETE)N/A
0121136-1063-01Lift rod (OBSOLETE)N/A
014112295200/0HEXAGON NUT M10£1.79 Add to
015112156602/0LOW SELF-LOCKING NUT M10£1.79 Add to
016325670008/1ANTI-FRICTION WASHER 10.8 x 19 x 0.8£2.06 Add to
018124487997/0SPRING CLIP D=1.8£2.06 Add to
0191136-1061-01Lift axle (OBSOLETE)N/A
021112731350/0SELF-TAP SCREW TE 5.5 X 19 UNI 6949 C15£2.06 Add to
0241136-0226-01Pivot bolt (OBSOLETE)N/A
027112794970/0HEX-HEAD SCREW M10 x 90£3.15 Add to
028112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
029112154250/0HEXAGONAL NUT M10£5.19 Add to
032127034065/0LIFTING DECK CONTROL ROD£66.96 Add to
034112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
035112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
036325670011/0ANTI-FRICTION WASHER 8.2 x 19 x 0.8£2.06 Add to
