BODY WORK (2)

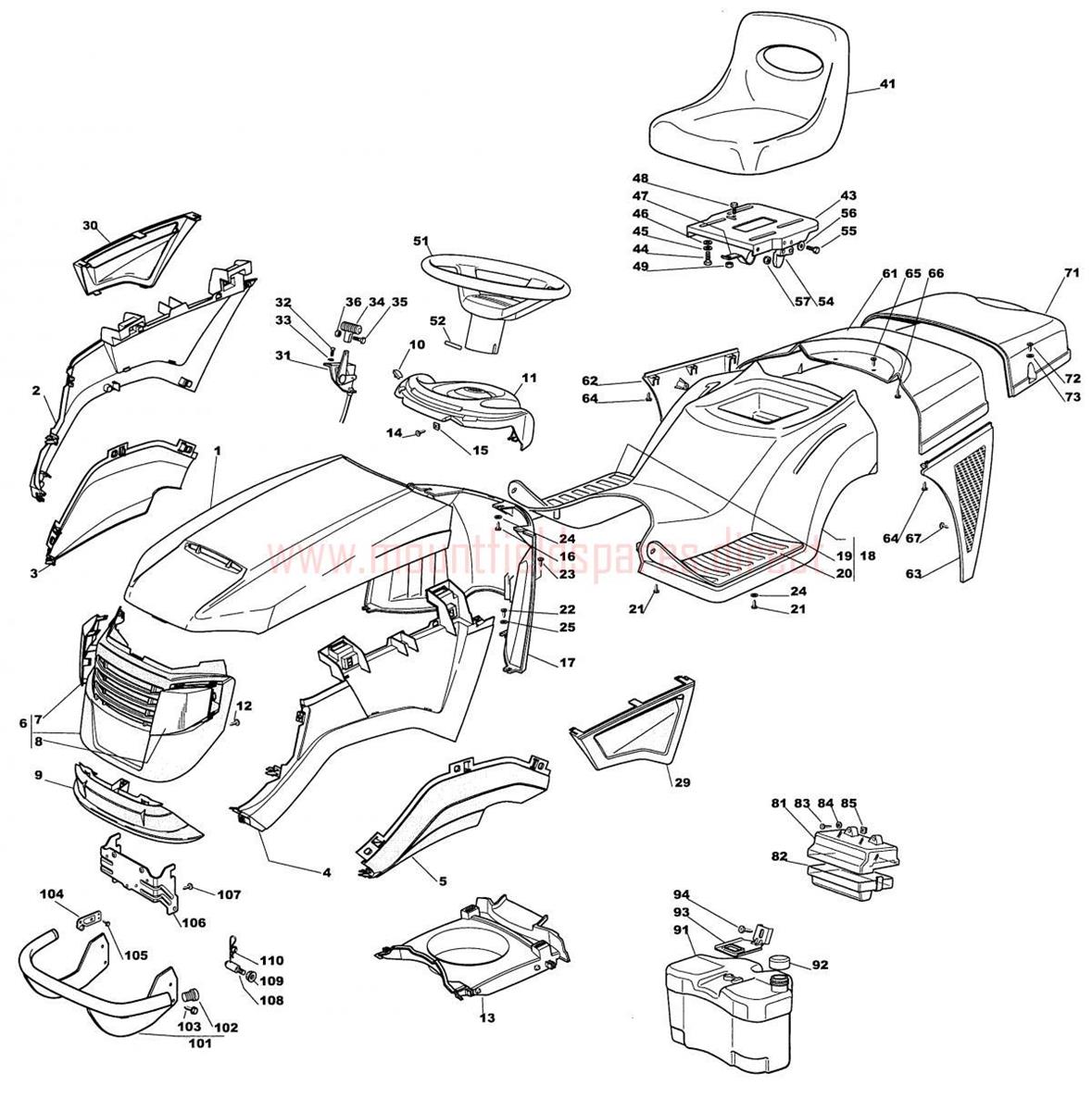

BODY WORK (2) assembly details for Mountfield 1236M-1436S-1436H-1636M-1636H 2006 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001325076871/0UPPER ENGINE HOOD [RED]£110.66 Add to
0021136-2111-01Hood-upper RH, red (OBSOLETE)N/A
0031136-2116-01Hood-lower RH, black (OBSOLETE)N/A
004382394615/0LEFT UPPER HOOD (OBSOLETE)N/A
0051136-2115-01Hood-lower LH, black (OBSOLETE)N/A
006382394613/0FRONT HOOD [BLACK]£84.77 Add to
007325410876/0RIGHT HEADLIGHTS GRILL£9.14 Add to
008325410877/0LEFT HEADLIGHTS GRILL£9.14 Add to
0091136-2073-01Hood-front lower, bI (OBSOLETE)N/A
010125260000/0ANTI-VIBRATION RUBBER GROMMET£3.41 Add to
0111136-0871-01Dashboard (OBSOLETE)N/A
012112735403/0FLANGED HEX-HEAD SCREW D=6 x 18£2.06 Add to
0131136-2075-01CONVEYOR£67.26 Add to
014112735110/0FLANGED SELF-TAP SCREW 4.8 X 13£2.81 Add to
015112437502/0PLATE£2.06 Add to
016112735402/0FLANGED HEX-HEAD SCREW D=6 x 18 WZ£2.06 Add to
0171136-0926-01Support (OBSOLETE)N/A
018382110001/3WHEELS COVER [RED]£220.85 Add to
018382110007/3WHEELS COVER [RED]£211.50 Add to
0191136-0148-01Footboard cover-RH (OBSOLETE) (OBSOLETE)N/A
0201136-0147-01Footboard cover-LH (OBSOLETE) (OBSOLETE)N/A
021112735410/0FLANGED HEX-HEAD SCREW D=6 x 35£2.06 Add to
023112728690/0SELF-TAP SCREW KA50 x 25£0.79 Add to
024112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
025112523050/0WASHER M6 6.6 x 24 x 2£2.06 Add to
029325207144/0LEFT SIDE BONNET COVER£22.86 Add to
030325207145/0RIGHT SIDE BONNET COVER (OBSOLETE) (OBSOLETE)N/A
031182000207/0THROTTLE CABLE£34.35 Add to
032112788512/0SCREW M4 x 12£2.06 Add to
033112581200/0WASHER M4 4.1 x 7.1 x 0.9£2.06 Add to
034125394501/0THROTTLE HANDLE [BLACK]£2.06 Add to
035112726388/0CROSS-HEAD SCREW M4X12£2.06 Add to
036112290800/0HEXAGON NUT M4 UNI 5588 ACC.6S£2.06 Add to
041125722453/1SEAT£187.79 Add to
043325547033/1SEAT PLATE£38.44 Add to
044112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
045112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
046112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
047125430223/2SEAT LIFTING SPRING£6.55 Add to
048112789000/0SCREW TE M5 x 12£2.06 Add to
049112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
051125961216/0STEERING WHEEL [BLACK]£57.52 Add to
052112620299/0SPIROL FLEXIBLE PIN 6 x 45£1.91 Add to
054327063021/1MICRO SEAT OPERATION CAM£2.74 Add to
055112789100/0HEX-HEAD SCREW M5 x 30£2.06 Add to
056112523020/0WASHER M5 5.5 x 15 x 1.6£2.06 Add to
061325110179/1FIXED COVER [RED]£98.40 Add to
062125600033/0R/H GUARD [BLACK]£35.71 Add to
063125600034/0L/H GUARD [BLACK]£35.71 Add to
0659847-8216-16SCREW (OBSOLETE)N/A
071325110299/0GRASSCATCHER TOP [BLACK]£80.68 Add to
072112729601/1SELF-TAP SCREW TE FL 5.5 x 16£2.06 Add to
073112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
081125600020/0UPPER GUARD£9.62 Add to
082125600021/1LOWER GUARD£10.25 Add to
083112728460/0SELF-TAPP.SCREW 4.8X38 UNI 6954£2.06 Add to
0849699-0024-02WASHER 2011£3.64 Add to
091125735116/2FUEL TANK J£124.29 Add to
092125795000/1FUEL TANK CAP£8.04 Add to
0931136-0327-01TANK'S FIXING BRAKET 2007£7.19 Add to
101382869025/0FRONT BUMPER BAR£117.75 Add to
102118737860/0END CAP D=40£2.06 Add to
1041136-2130-01Hood plate (OBSOLETE)N/A
105112731580/0SELF-TAP SCREW TE 4.8 x 9.5 C15 BZ£2.06 Add to
106325774301/2HOOD SUPPORT£18.13 Add to
108125510169/1BONNET PIN (ROUND VERSION)£3.15 Add to
109112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
110124487998/0R CLIP D=2£2.06 Add to
