BRAKE CONTROL AND DRIVE CONTROL

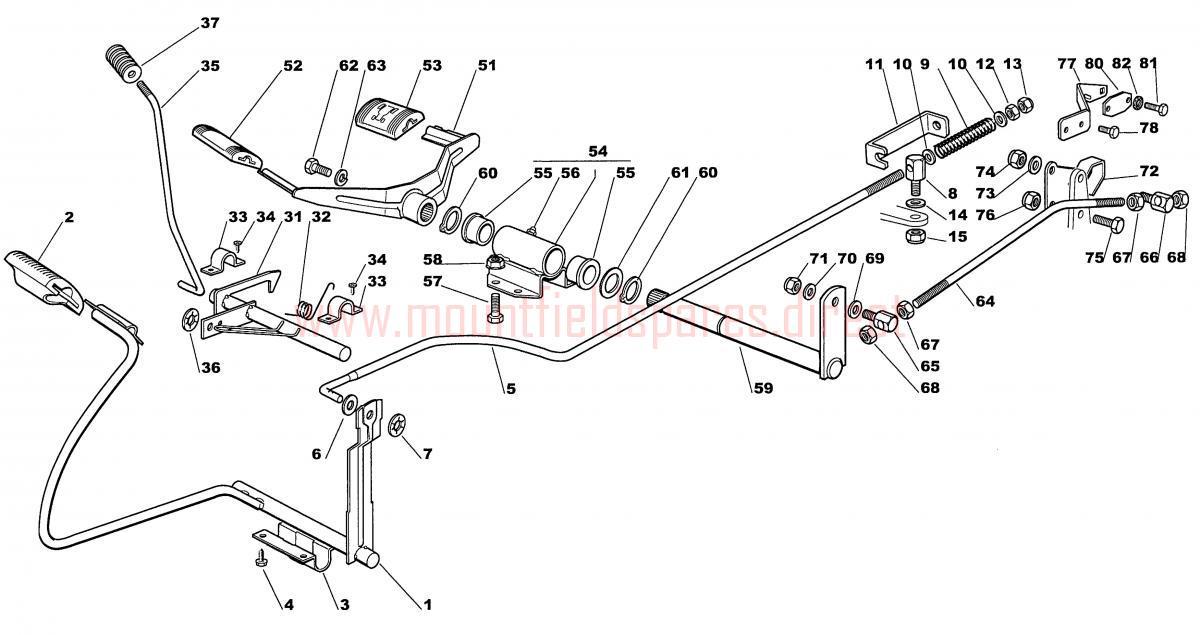

BRAKE CONTROL AND DRIVE CONTROL assembly details for Mountfield 1236M-1436S-1436H-1636M-1636H 2006 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011136-0510-01Pedal (OBSOLETE)N/A
002125110267/0BRAKE PEDAL COVER£4.23 Add to
00325547039/0RIGHT PLATE 2007£8.70 Add to
0049847-8016-16SCREW RXS B10 x 16£2.32 Add to
00525033041/0ROD 2007£37.08 Add to
006112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
007112604899/0STARLOCK WASHER RPCO 308 D=8£2.06 Add to
008125510067/1PIN£4.78 Add to
009125430236/0BRAKE ROD SPRING£6.79 Add to
010112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
011325774275/1CLAMP BRACKET£3.83 Add to
012112295200/0HEXAGON NUT M10£1.79 Add to
013112156602/0LOW SELF-LOCKING NUT M10£1.79 Add to
015112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0311136-0441-01Axle (OBSOLETE)N/A
0321136-0217-01Spring (OBSOLETE)N/A
033325547049/0AXLE FIXING PLATE£3.55 Add to
03525033043/0BRAKE ROD TC2000 2007£9.94 Add to
036112604898/0STARLOCK WASHER D=7£2.02 Add to
037127395050/1BLACK BRAKE KNOB RIDER/TCJ£3.40 Add to
0511136-0507-01Drive pedal (OBSOLETE)N/A
0521136-0149-01Pedal cover-front (OBSOLETE)N/A
0531136-0150-01Pedal cover-rear (OBSOLETE)N/A
0541136-1495-01Support assy (OBSOLETE)N/A
055125034002/1BUSH£3.96 Add to
056112379511/0STRAIGHT GREASE NIPPLE M6 x 1£2.06 Add to
0579997-0616-16SCREW M6S M6 x 16£4.01 Add to
058112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
0591136-0500-01Pedal axle (OBSOLETE)N/A
060112609260/0CIRCLIP D=20£2.02 Add to
061322672153/0ANTI-FRICTION WASHER 20.2 x 30 x 0.8£2.06 Add to
062112792610/0HEX-HEAD SCREW M8 x 16£2.02 Add to
063112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
06425033042/0ROD 2007£37.08 Add to
0651136-0241-01PIVOT BOLT£4.99 Add to
0661136-0247-01Pivot bolt (OBSOLETE)N/A
067112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
070112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
071112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
0721136-0533-01Support (OBSOLETE)N/A
0759997-0620-16SCREW M6S M6 x 20£2.06 Add to
07725774289/0SUPPORT CLAMP TCJH 2007£8.70 Add to
078112735110/0FLANGED SELF-TAP SCREW 4.8 X 13£2.81 Add to
080327546019/0WZ MICRO NEUTRAL FIX PLATE£1.79 Add to
081112735602/0"SELF-FORMING SCREW M3 x 20 ""TAPTITE""£2.06 Add to
082112540020/0EXTERNAL TOOTHED WASHER M4£2.06 Add to
