ELECTRICAL EQUIPMENT

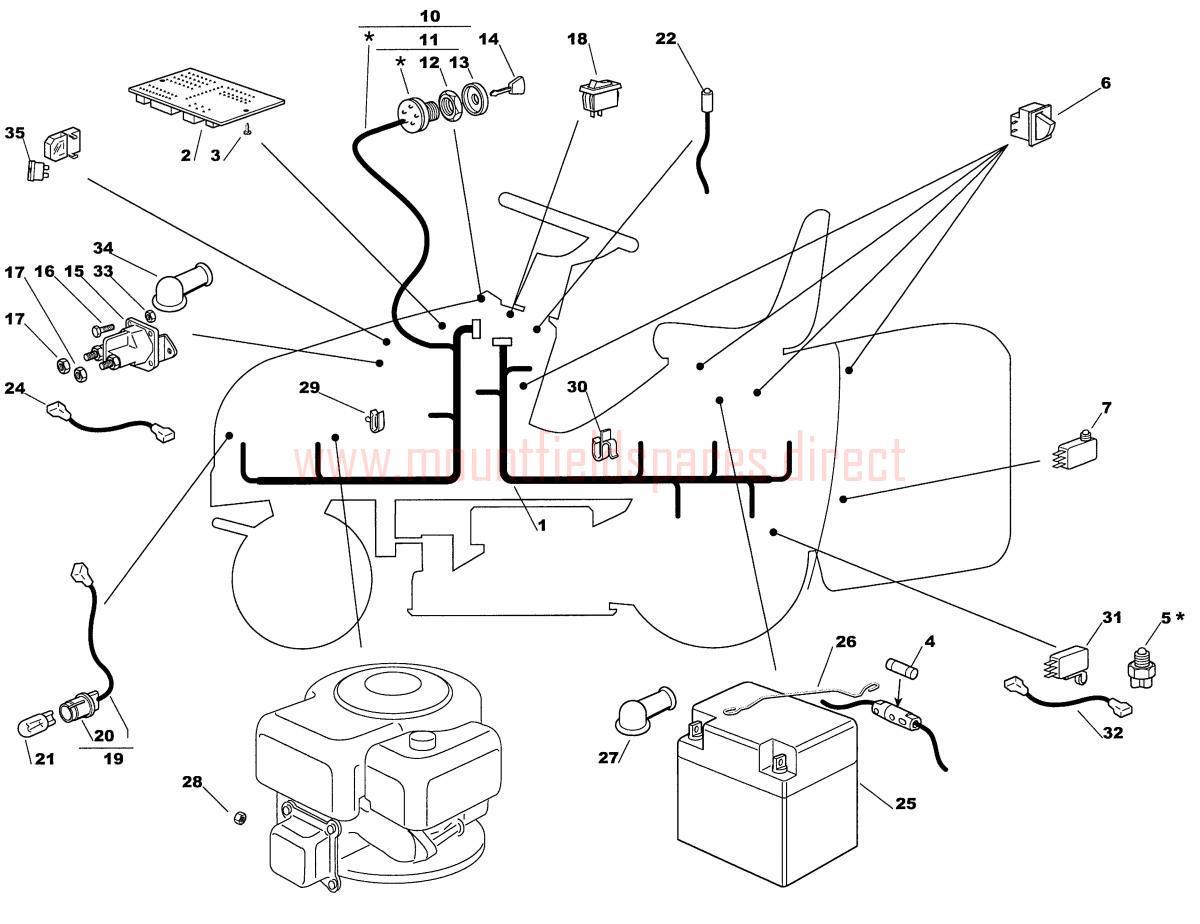

ELECTRICAL EQUIPMENT assembly details for Mountfield 1236M-1436S-1436H-1636M-1636H 2006 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011136-2171-01Cable harness (OBSOLETE)N/A
002125722415/1PC BOARD [ THIS ITEM CANNOT BE RETURNED ]£105.95 Add to
003112727810/0SELF-TAP SCREW 3.5 x 13£2.06 Add to
004133340033/0FUSE 6.3A£5.05 Add to
005786194Neutral start switch (OBSOLETE)N/A
006119410622/1MICRO SWITCH N.O.£7.10 Add to
007119410605/1MICRO SWITCH£36.77 Add to
010182040128/0WIRING LOOM J92/98 (OBSOLETE) (OBSOLETE)N/A
011118450065/1STARTING SWITCH£32.99 Add to
012118400861/0LOCKING RING£5.32 Add to
013118565351/0LOCKING RING COVER£6.14 Add to
014118210016/1IGNITION KEY [PAIR]£13.17 Add to
015118736112/0SOLENOID£39.80 Add to
0169997-0620-16SCREW M6S M6 x 20£2.06 Add to
0179743-5121-32LOCK NUT 5/16"£1.79 Add to
018118450084/0HEADLIGHT SWITCH£4.35 Add to
019182040070/0HEADLIGHTS CABLE£16.46 Add to
021118459100/0HEADLIGHT BULB£2.47 Add to
022125065014/1CARD ALARM SIGNAL CABLE£13.23 Add to
024125065017/0MOTOR/SOLENOID CONNECT CABLE£9.82 Add to
025118120007/0BATTERY 12V 18AH [No Returns on This item]£103.58 Add to
026125430230/0SPRING ROD£3.55 Add to
027118564861/1RED RUBBER TERMINAL COVER£7.90 Add to
028112361005/0HEXAGON NUT 1/4" UNC£2.71 Add to
029133320506/0CABLE CLIP£1.79 Add to
030133320504/0CABLE CLIP£2.06 Add to
031119410609/1LCNEUTRAL KEDU SWITCH [HYDRO]£28.90 Add to
032125065025/0ADAPTER CABLE£9.00 Add to
033112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
034118564864/1RED RUBBER TERMINAL COVER£6.01 Add to
035133340036/0FUSE 25A£2.06 Add to
