MOWER DECK LIFT

MOWER DECK LIFT assembly details for Mountfield 1236M-1436S-1436H-1636M-1636H 2006 model

Parts list

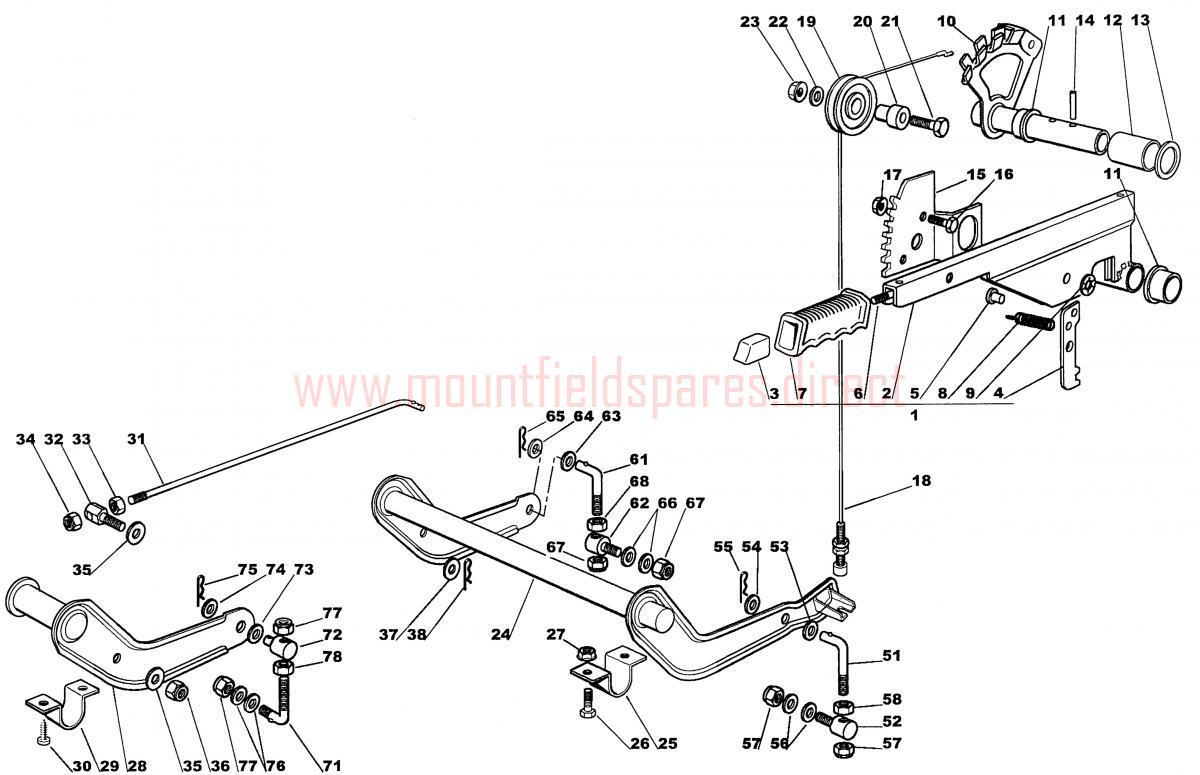

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001382300002/1LEVER£55.10 Add to
0021136-0493-01Lift lever (OBSOLETE)N/A
003125605000/1BUTTON£2.74 Add to
0041136-0222-01Dog (OBSOLETE)N/A
0051136-0227-01Pin (OBSOLETE)N/A
006125033002/1PUSH ROD£4.52 Add to
007125394504/1KNOB£2.87 Add to
0081136-0203-01Spring (OBSOLETE)N/A
009112604899/0STARLOCK WASHER RPCO 308 D=8£2.06 Add to
0101136-0444-01Axle (OBSOLETE)N/A
0111136-0078-01Bushing (OBSOLETE)N/A
0121136-0163-01Spacer (OBSOLETE)N/A
013112521410/0WASHER M20 21 x 37 x 3£1.91 Add to
0149595-0235-00LOCATING PIN£2.47 Add to
0151136-0319-01HEIGHT ADJUST SECTOR£11.04 Add to
016112792610/0HEX-HEAD SCREW M8 x 16£2.02 Add to
017112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
018182004603/0DECK LIFT CABLE£23.58 Add to
019125601557/0PULLEY£7.63 Add to
0201136-0232-01Spacer (OBSOLETE)N/A
0219997-0850-16SCREW M6S M8 x 50£4.52 Add to
022112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
024382000381/2LIFT AXLE£76.59 Add to
025325547037/2FIXING CLAMP£3.69 Add to
0269997-0616-16SCREW M6S M6 x 16£4.01 Add to
027112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
0281136-0492-01Lift arm (OBSOLETE)N/A
0291136-0255-01Clamp (OBSOLETE)N/A
0309847-8016-16SCREW RXS B10 x 16£2.32 Add to
031125033013/0CONNECTING ROD£38.44 Add to
033112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
034112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
035325670011/0ANTI-FRICTION WASHER 8.2 x 19 x 0.8£2.06 Add to
037112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
038124487997/0SPRING CLIP D=1.8£2.06 Add to
051125840003/2TIE ROD£13.20 Add to
052125510024/1PIN£5.46 Add to
053112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
054325670008/1ANTI-FRICTION WASHER 10.8 x 19 x 0.8£2.06 Add to
057112156602/0LOW SELF-LOCKING NUT M10£1.79 Add to
058112295200/0HEXAGON NUT M10£1.79 Add to
071125840014/0FRONT TIE ROD£32.99 Add to
0721136-1241-01Pivot bolt (OBSOLETE)N/A
