ENGINE

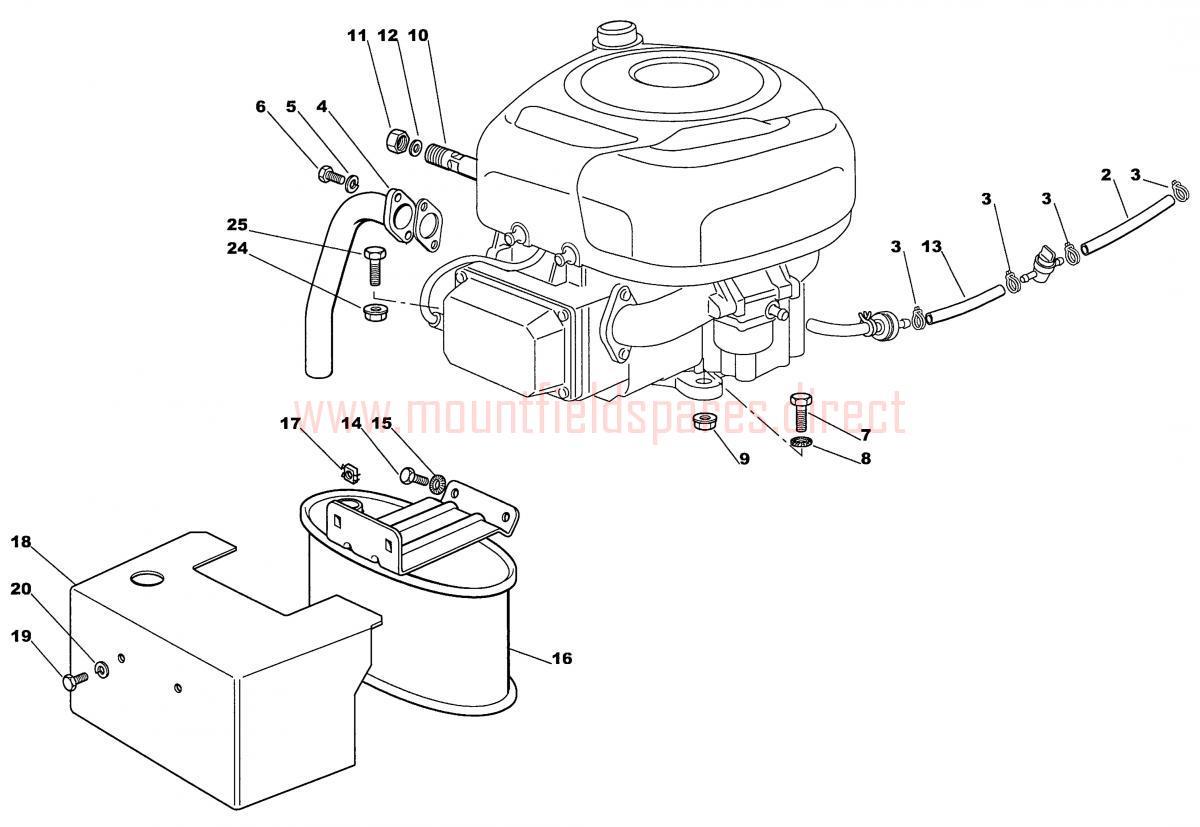

ENGINE assembly details for Mountfield 1438M 2006 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
00225869009/1FUEL TUBE 2007£7.81 Add to
003118375051/1CABLE CLAMP B&S [GREEN]£1.91 Add to
004118738224/0EXHAUST PIPE£42.53 Add to
005112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
0069988-3619-16SCREW U6S 5/16 UNC x 19£2.47 Add to
0079997-0840-16SCREW M6S M8 x 40£2.06 Add to
008112540260/0INNER TOOTHED WASHER M8£2.06 Add to
009112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
010125598050/0OIL DISCHARGE TUBE£8.04 Add to
011118737849/0OIL DRAIN PLUG£2.47 Add to
012118401001/1OIL DRAIN SEAL£2.06 Add to
013325869006/1CONNECTING TUBE£6.69 Add to
014112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
016182750010/0MUFFLER£117.75 Add to
017112360425/0SQUARE NUT M8£2.18 Add to
0181136-1048-01GUARD 2006£45.18 Add to
019112792610/0HEX-HEAD SCREW M8 x 16£2.02 Add to
025119216047/0HEX-HEAD SCREW M8 X 35£2.06 Add to
