MOWER DECK ENGAGEMENT

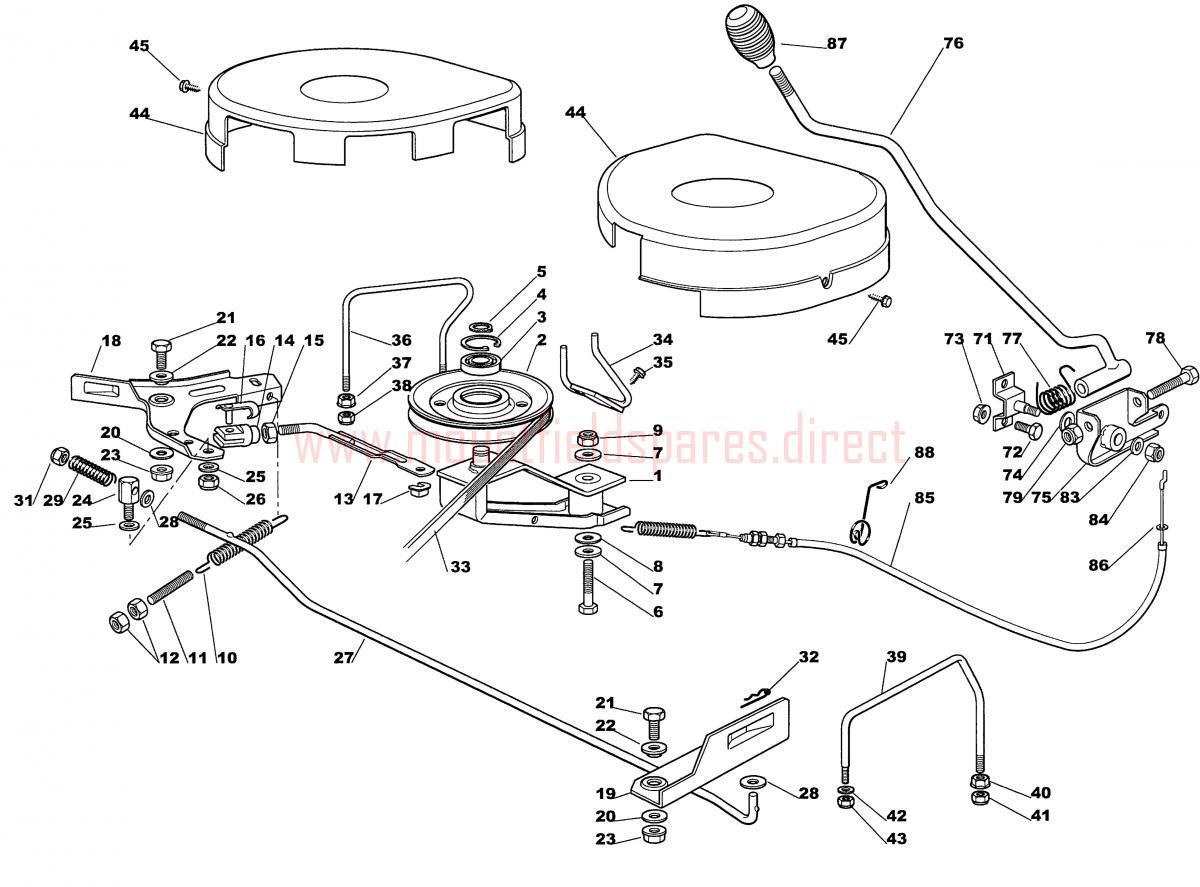

MOWER DECK ENGAGEMENT assembly details for Mountfield 1438M 2006 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001382318141/2TENSION ARM£35.50 Add to
002125601587/0PULLEY£60.24 Add to
003119216048/0BEARING£18.27 Add to
004112610800/0CIRCLIP D=35£2.06 Add to
005112609200/0CIRCLIP D=15£2.06 Add to
006112692080/0HEX-HEAD SCREW M8 x 90£2.06 Add to
007112523070/0WASHER M8 8.5 x 32 x 2.5£2.06 Add to
008322672152/0ANTI-FRICTION WASHER 8.2 x 30 x 0.8£1.91 Add to
009112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
010125430214/1SPRING£13.08 Add to
011125840005/0TIE ROD£2.87 Add to
012112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
013382000525/0BBC CONTROL ROD (OBSOLETE)N/A
0141136-0836-01Fork (OBSOLETE)N/A
0161136-0835-01Clip (OBSOLETE)N/A
017112436050/0PIN PLATE D=8 (EUROFIX FX70308PH)£1.83 Add to
0181136-0886-01Lever-RH (OBSOLETE)N/A
0191136-0885-01Lever-LH (OBSOLETE)N/A
021112792610/0HEX-HEAD SCREW M8 x 16£2.02 Add to
0221136-0079-01Bushing (OBSOLETE)N/A
023112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
025325670011/0ANTI-FRICTION WASHER 8.2 x 19 x 0.8£2.06 Add to
027125033045/1BRAKE ROD£53.42 Add to
028112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
0291136-0895-01Spring (OBSOLETE)N/A
032124487997/0SPRING CLIP D=1.8£2.06 Add to
033135061503/0DECK DRIVE BELT A77 [KEVLAR]£58.87 Add to
034125270311/1BELT GUIDE£14.05 Add to
035112729601/1SELF-TAP SCREW TE FL 5.5 x 16£2.06 Add to
036125270313/0BELT GUIDE£9.82 Add to
039125270312/0BELT GUIDE£28.90 Add to
042112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
043112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
044125060106/0BELT PROTECTION GUARD£7.63 Add to
045112735110/0FLANGED SELF-TAP SCREW 4.8 X 13£2.81 Add to
0711136-0537-01Support (OBSOLETE)N/A
074322672151/0ANTI-FRICTION WASHER 12.2 x 30 x 0.8£1.91 Add to
0751136-0528-01Lever holder (OBSOLETE)N/A
076382318135/0BLADE ENGAGE LEVER£56.15 Add to
077125430227/0SPRING£2.78 Add to
078112692050/0HEX-HEAD SCREW£1.91 Add to
083112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
084112155010/0SELF-LOCKING NUT M8 A-LOK ACC.6S£2.47 Add to
085384207104/1PTO CABLE£32.99 Add to
087125394510/0CONTROL KNOB [BLACK]£4.35 Add to
0881136-0957-01Spring (OBSOLETE)N/A
