ENGINE

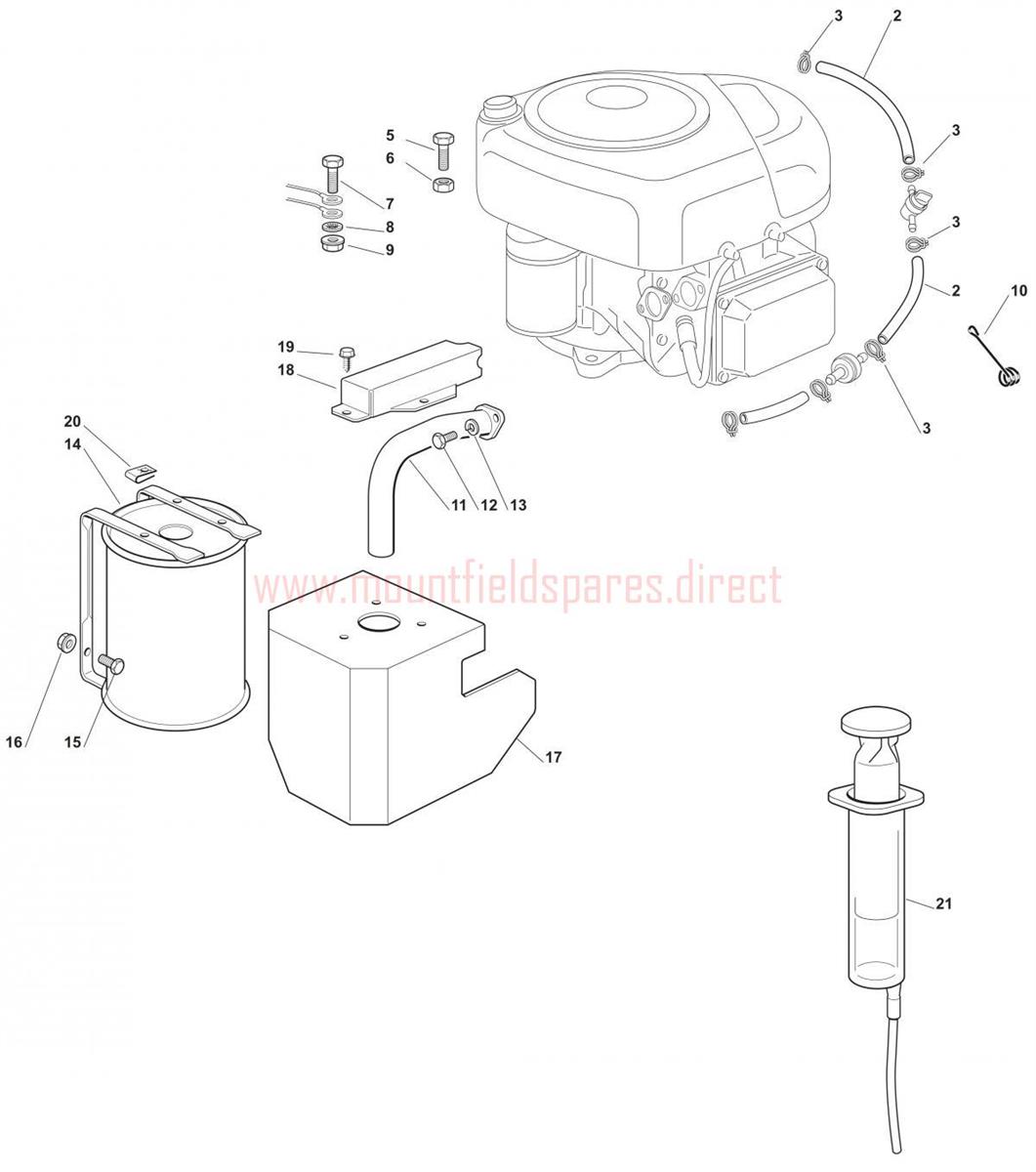

ENGINE assembly details for Mountfield 1228M_1228H (20100406) 2007 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
002	325869035/1	CONNECTING TUBE	£9.82	Add to
005	119216047/0	HEX-HEAD SCREW M8 X 35	£2.06	Add to
006	112154210/0	SELF-LOCK WINGED NUT M8 DIN 6927	£2.06	Add to
007	112691115/0	HEX-HEAD SCREW M8 x 40	£2.06	Add to
008	112540260/0	INNER TOOTHED WASHER M8	£2.06	Add to
011	118738225/0	EXHAUST PIPE	£57.52	Add to
012	112737450/0	SCREW 5/16 x 3/4 18 THREAD	£3.55	Add to
013	112583500/0	WASHER M8 UNI 1751 WZ	£2.06	Add to
014	382750006/2	MUFFLER	£170.61	Add to
015	112793102/0	SCREW TE M8x20 UNI 5739 ACC.8.8	£2.06	Add to
017	384598081/0	MUFFLER PROTECTION GUARD	£22.29	Add to
018	327600137/0	PROTECTION COVER	£5.87	Add to
019	112729601/1	SELF-TAP SCREW TE FL 5.5 x 16	£2.06	Add to
020	112437504/0	FIXING PLATE	£2.06	Add to
021	118718000/0	OIL EMPTYING SYRINGE	£16.22	Add to
