TRANSMISSION (2)

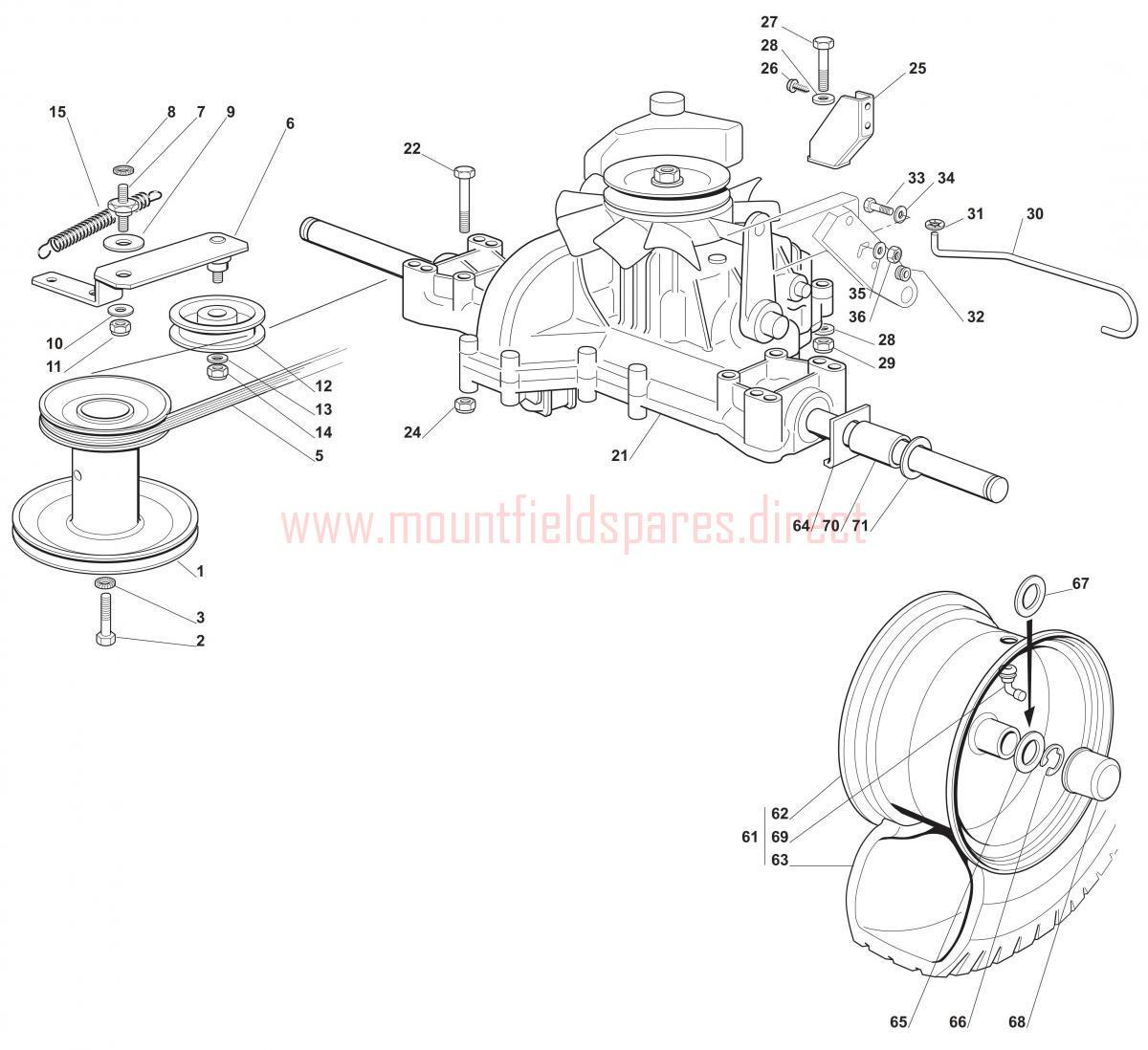

TRANSMISSION (2) assembly details for Mountfield 1228M_1228H (20100406) 2007 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001127604005/0ENGINE PULLEY£92.95 Add to
002112737310/0HEX-HEAD SCREW 7/16" x 2" 20 UNF£1.90 Add to
003112543000/0SAFETY WASHER D=7/16£2.06 Add to
005135061404/0TRANSMISSION BELT X13 P780£33.79 Add to
006384317081/0TENSION ARM£14.45 Add to
007127510096/0FULCRUM PIN£5.19 Add to
008112540260/0INNER TOOTHED WASHER M8£2.06 Add to
009322672151/0ANTI-FRICTION WASHER 12.2 x 30 x 0.8£1.91 Add to
010325670011/0ANTI-FRICTION WASHER 8.2 x 19 x 0.8£2.06 Add to
011112155010/0SELF-LOCKING NUT M8 A-LOK ACC.6S£2.47 Add to
012125601554/0PULLEY£26.18 Add to
013112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
014112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
015122446402/1SPRING£5.46 Add to
021118400965/0HYDRO TRANSAXLE K46T - 7A646024410£1,403.85 Add to
022112691800/0HEX-HEAD SCREW M8 x 60£2.06 Add to
024112154210/0SELF-LOCK WINGED NUT M8 DIN 6927£2.06 Add to
025384783019/0SUPPORT CLAMP£24.03 Add to
026112735122/0HEX-HEAD SELF-TAP SCREW 6.3 x 16£2.06 Add to
027112691200/0HEX-HEAD SCREW M8 x 45£2.06 Add to
028112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
030127034069/0DISENGAGE LEVER£4.23 Add to
031112000930/0CIRCLIP D=6£0.79 Add to
032118564512/0GROMMET£1.79 Add to
033112793301/0HEX-HEAD SCREW M8 x 25£2.06 Add to
061384680067/0REAR WHEEL ASSEMBLY 15" [WANDA] P512£129.74 Add to
061384680067/0REAR WHEEL ASSEMBLY 15" [WANDA] P512£129.74 Add to
062184044001/0REAR WHEEL RIM£75.25 Add to
063125590020/0TYRE 15 X 6.00-6 WANDA£65.62 Add to
063125590020/0TYRE 15 X 6.00-6 WANDA£65.62 Add to
064325670025/0SPACER WASHER TT£4.27 Add to
065125670005/2SPINDLE WASHER£3.89 Add to
066112001010/0CIRCLIP ID=0,580 TH=0.050£1.76 Add to
067112520010/0WASHER£2.18 Add to
068122110230/0HUB COVER£2.06 Add to
069125950000/0PNEUMATIC VALVE£5.73 Add to
070125160031/0WHEEL SPACER£3.69 Add to
