DISCHARGE 14H36H

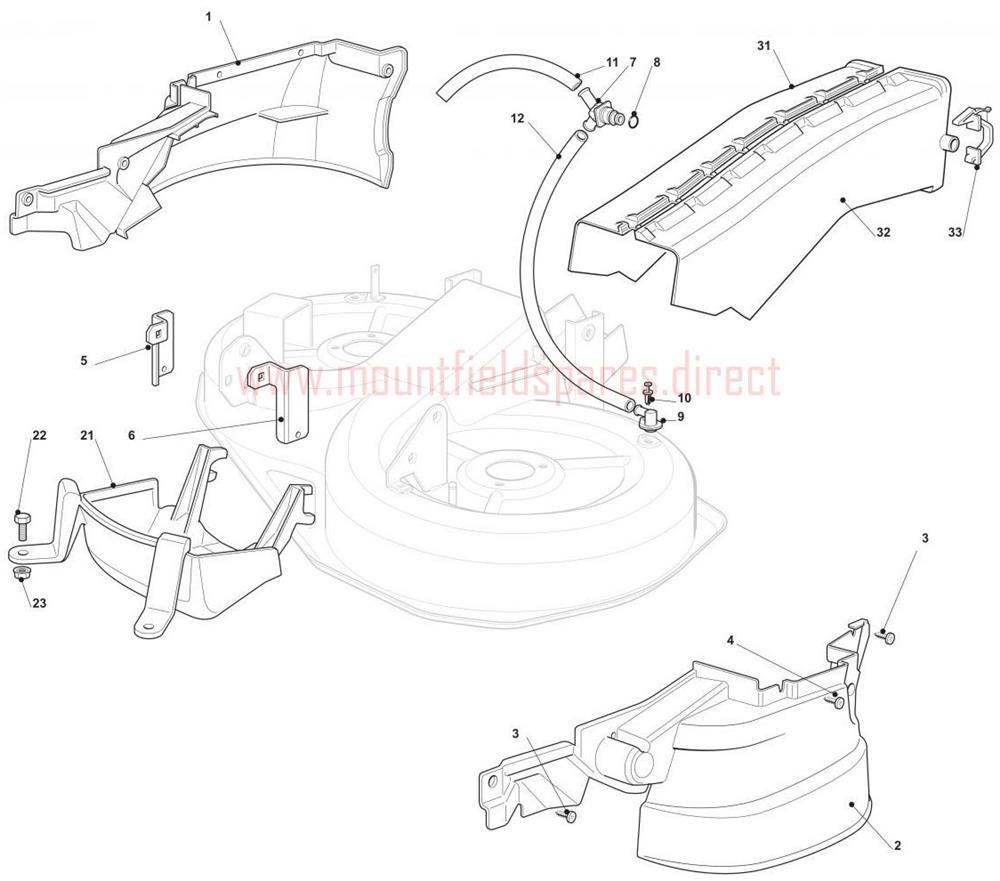

DISCHARGE 14H36H assembly details for Mountfield 1235M_1435H_1436H_14H36H_1636M_1636H (20100406) 2007 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
00125060121/0Case (OBSOLETE)N/A
002325060122/0LEFT BELT PROTECTION GUARD [BLACK]£59.12 Add to
003112735122/0HEX-HEAD SELF-TAP SCREW 6.3 x 16£2.06 Add to
004112728535/0SCREW TC SLZ 5.2 x 25£2.06 Add to
005325774381/0RIGHT CLAMP BRACKET£4.66 Add to
006325774383/0LEFT CLAMP BRACKET£4.66 Add to
007325033066/0CUTTING DECK WASHING FITTING£3.69 Add to
008119035000/0O RING 10.77 x 2.62£5.46 Add to
009325033065/0CUTTING DECK WASHING FITTING£2.87 Add to
010112500030/0PLASTIC RIVET 2494 AA01£2.06 Add to
011325869069/0WASHING TUBE L=980£19.54 Add to
012325869068/0WASHING TUBE L=350£9.14 Add to
021325060127/0FRONT RIGHT/LEFT BELT GUARD£15.06 Add to
022112791400/0SCREW TE M6x20 UNI 5739 ACC.4.8£1.79 Add to
023112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
031382108008/1DISCHARGE CHUTE ASSEMBLY£66.43 Add to
032382108008/1DISCHARGE CHUTE ASSEMBLY£66.43 Add to
033325774373/0RELEASE CLAMP£3.41 Add to
