ENGINE (Kohler)

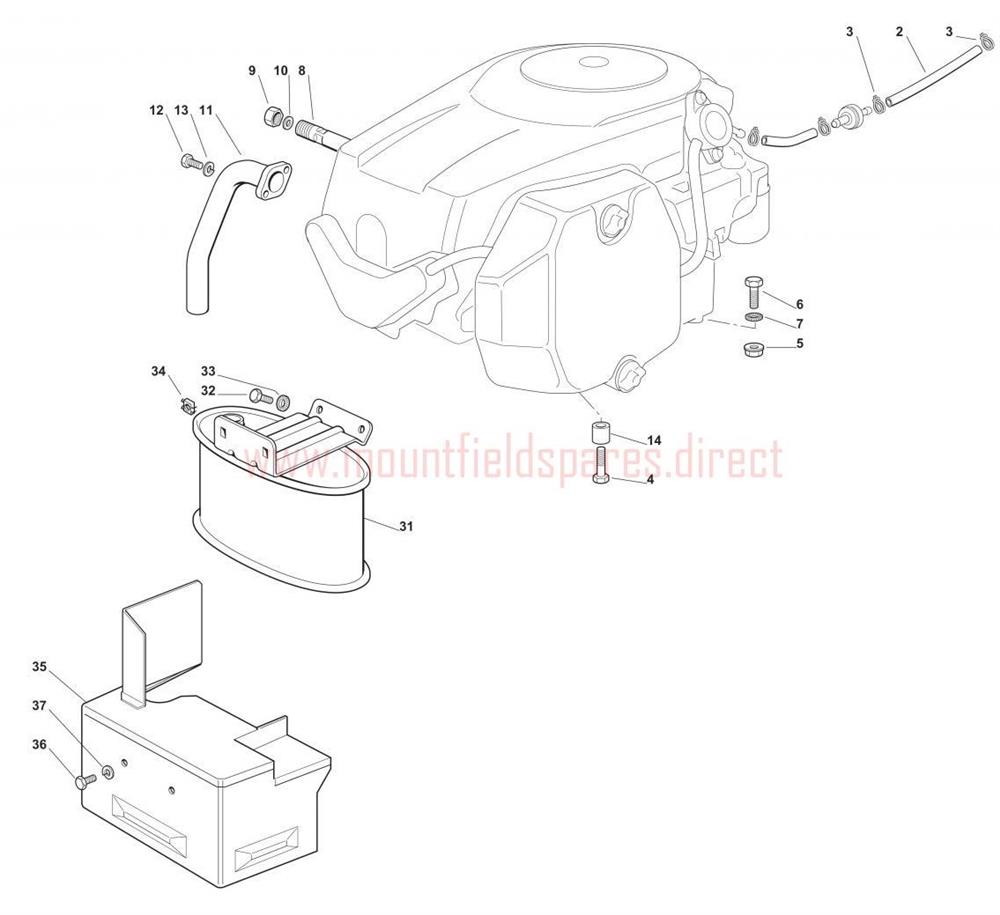

ENGINE (Kohler) assembly details for Mountfield 1235M_1435H_1436H_14H36H_1636M_1636H (20100406) 2007 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
002325869057/0FUEL TUBE L=1000£20.72 Add to
004112735108/0Screw (OBSOLETE)N/A
005112154210/0SELF-LOCK WINGED NUT M8 DIN 6927£2.06 Add to
006112691115/0HEX-HEAD SCREW M8 x 40£2.06 Add to
007112540260/0INNER TOOTHED WASHER M8£2.06 Add to
008127598060/0OIL DRAIN EXTENSION£8.52 Add to
009118737849/0OIL DRAIN PLUG£2.47 Add to
010118401001/1OIL DRAIN SEAL£2.06 Add to
01118738227/0EXHAUST PIPE KOHLER 16-18 2009£120.11 Add to
012112735530/0SCREW 5/16" x 3/4"£1.91 Add to
013112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
01425160035/0Spacer (OBSOLETE)N/A
031182750010/0MUFFLER£117.75 Add to
032112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
034112360425/0SQUARE NUT M8£2.18 Add to
035382598029/0MUFFLER PROTECTION ASS'Y 102£131.12 Add to
036112792611/0SCREW TE M8x16 UNI 5739 ACC.8.8£2.06 Add to
